76 8210-00020 R1

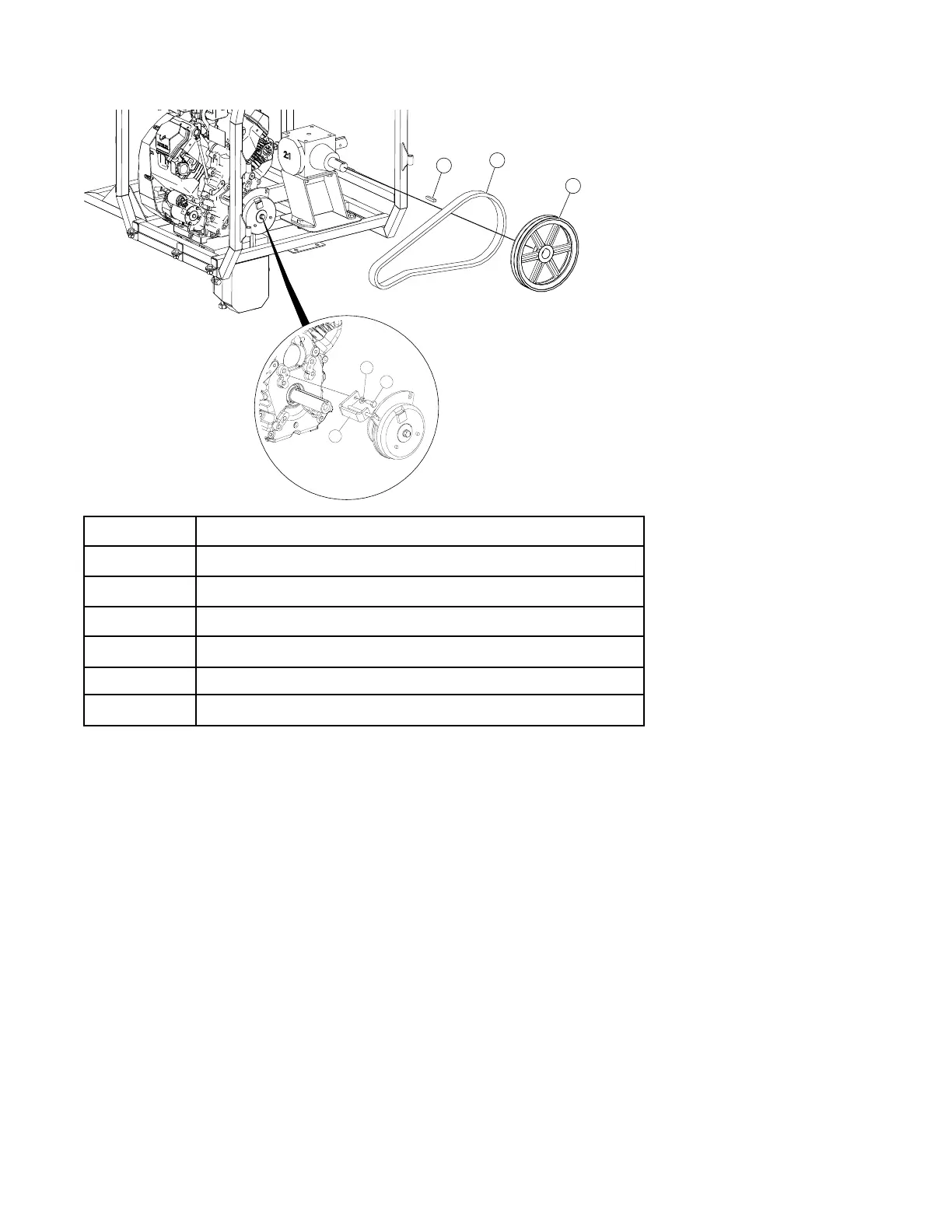

Installing the Motor Pulley, Belt, and Clutch Stop
Item
Description
1
Clutch Stop
2
3/8" Lock Washer
3
3/8" X 1" Hex Bolt
4
3/8" X 2" Gearbox Key
5
2B59 Banded Belt
6
12" DBL Pulley 1-1/2" Bore
Note
Align the pulleys using a straight edge before installing the belt. Tighten the set screws after the pulleys
are aligned.
4
5
6
2
1
3
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
