Agilent Technologies InfiniiVision 3000 X-Series User Manual

I2C/SPI Triggering and Serial Decode 25
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 379

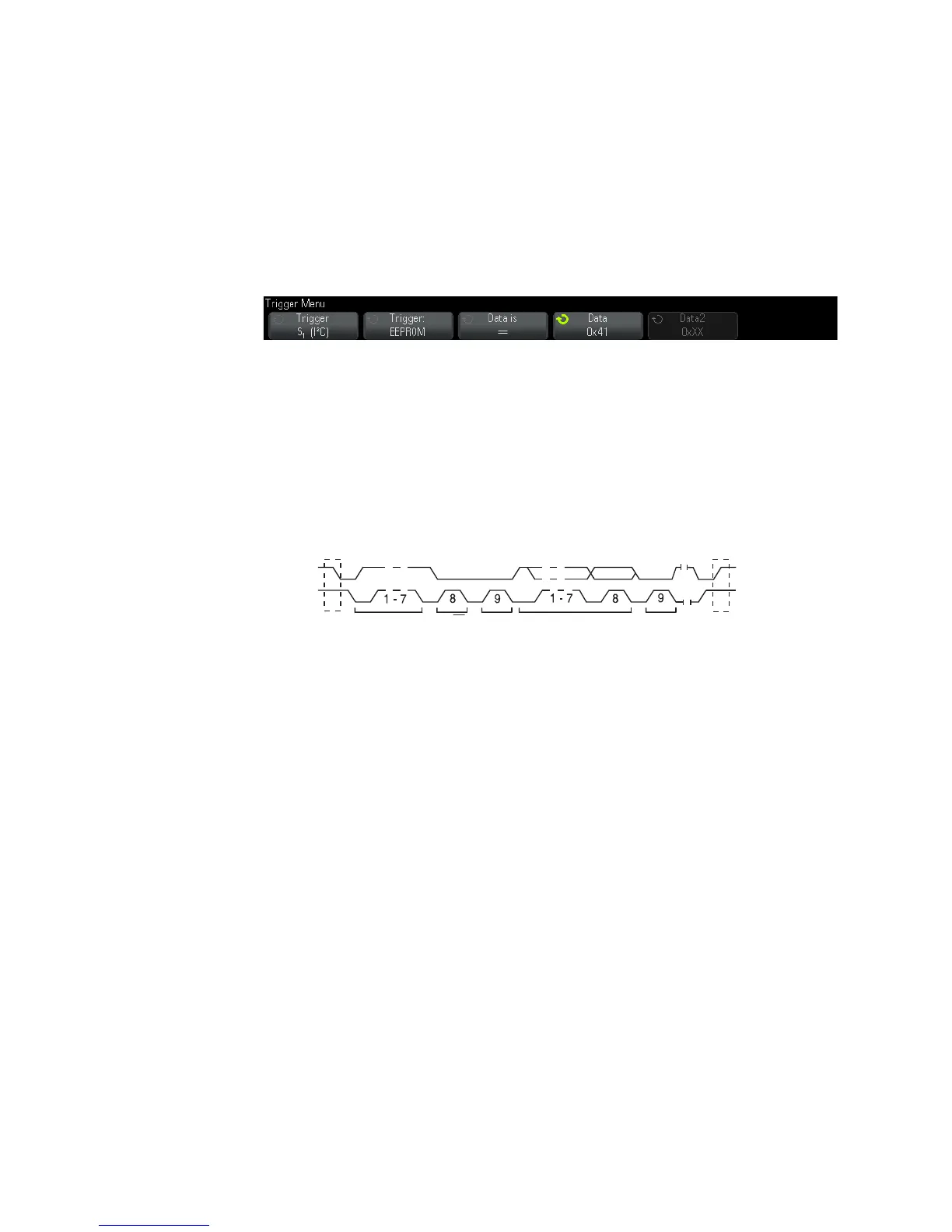

3 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob
to select the serial slot (Serial 1 or Serial 2) on which the I
2
C signals
are being decoded.
4 Press the Trigger: softkey; then, turn the Entry knob to select the trigger
condition:
• Start Condition— The oscilloscope triggers when SDA data transitions
from high to low while the SCL clock is high. For triggering purposes
(including frame triggers), a restart is treated as a start condition.
• Stop Condition— The oscilloscope triggers when data (SDA) transitions
from low to high while the clock (SCL) is high.
• Missing Acknowledge— The oscilloscope triggers when SDA data is high
during any Ack SCL clock bit.
• Address with no Ack— The oscilloscope triggers when the acknowledge
of the selected address field is false. The R/W bit is ignored.
• Restart— The oscilloscope triggers when another start condition occurs
before a stop condition.
• EEPROM Data Read— The trigger looks for EEPROM control byte value
1010xxx on the SDA line, followed by a Read bit and an Ack bit. It
then looks for the data value and qualifier set by the Data softkey
and the Data is softkey. When this event occurs, the oscilloscope will
trigger on the clock edge for the Ack bit after the data byte. This
data byte does not need to occur directly after the control byte.
SDA
SCL
Stop
Condition
R/
Start
Condition
Ack
Ack
Data
Address
