Agilent Technologies InfiniiVision 3000 X-Series User Manual

367
Agilent InfiniiVision 3000 X-Series Oscilloscopes
User's Guide
s1
24
FlexRay Triggering and Serial Decode
Setup for FlexRay Signals 367
FlexRay Triggering 368
FlexRay Serial Decode 371
FlexRay triggering and serial decode requires Option FLEX or the
DSOX3FLEX upgrade.
Setup for FlexRay Signals
FlexRay signal setup consists of first connecting the oscilloscope to a
differential FlexRay signal using a differential active probe (the Agilent
N2792A is recommended), specifying the signal source, threshold voltage
trigger level, baud rate, and bus type.
To set up the oscilloscope to capture FlexRay signals:
1 Press [Label] to turn on labels.
2 Press [Serial].
3 Press the Serial softkey, turn the Entry knob to select the desired serial
bus (Serial 1 or Serial 2), and press the softkey again to enable decode.
4 Press the Mode softkey; then, select FlexRay mode.

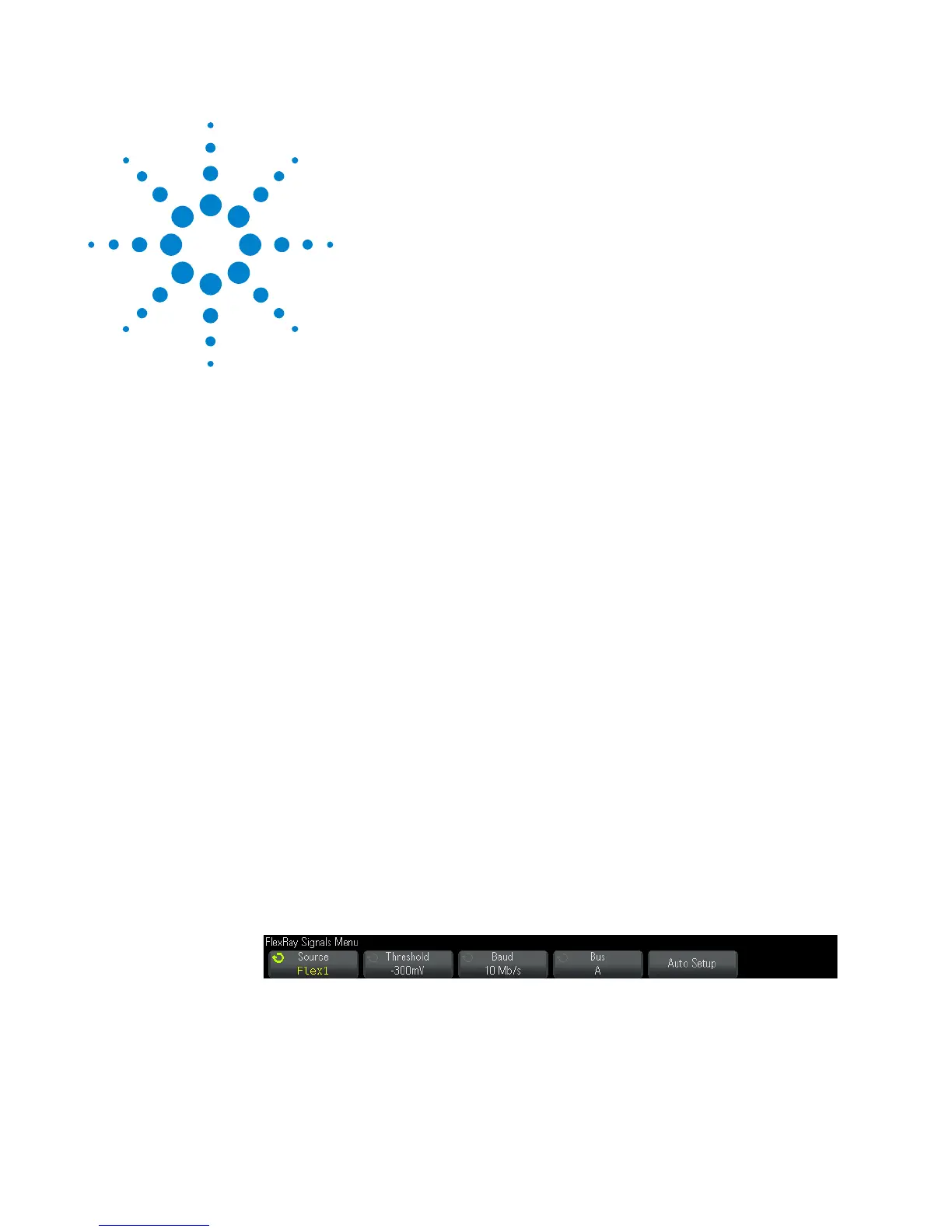

5 Press the Signals softkey to open the FlexRay Signals Menu.
