68 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
3 Vertical Controls
The vertical scale value is displayed in the status line at the top of the
display.
When Fine is turned off, turning the volts/division knob changes the
channel sensitivity in a 1- 2- 5 step sequence.
To invert a waveform
1 Press the desired channel key.
2 In the Channel Menu, press the Invert softkey to invert the selected
channel.
When Invert is selected, the voltage values of the displayed waveform are
inverted.
Invert affects how a channel is displayed. However, when using basic
triggers, the oscilloscope attempts to maintain the same trigger point by
changing trigger settings.
Inverting a channel also changes the result of any math function selected
in the Waveform Math Menu or any measurement.
Setting Analog Channel Probe Options
1 Press the probe's associated channel key.

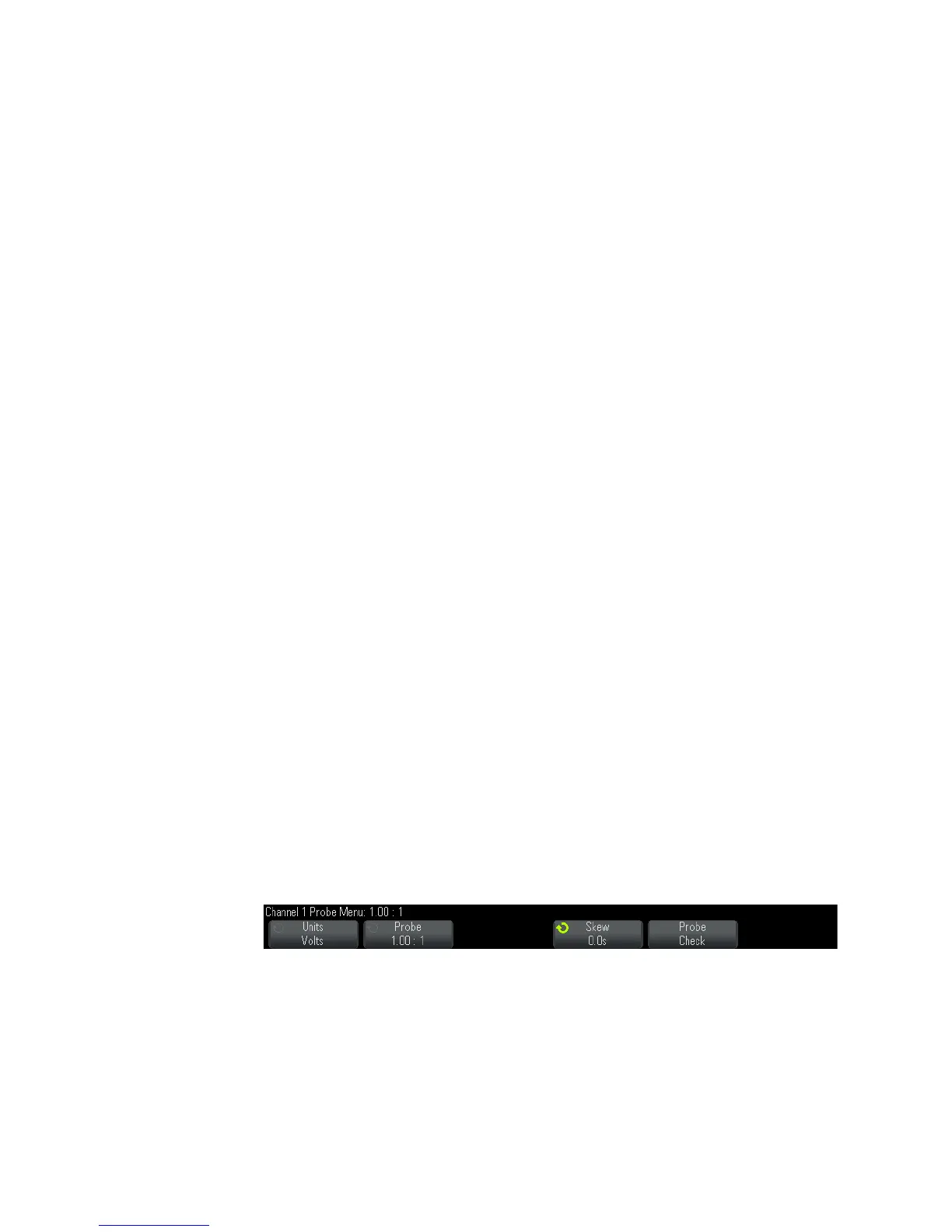

2 In the Channel Menu, press the Probe softkey to display the Channel
Probe Menu.
This menu lets you select additional probe parameters such as
attenuation factor and units of measurement for the connected probe.
The Channel Probe Menu changes depending on the type of probe
connected.
