MIL-STD-1553/ARINC 429 Triggering and Serial Decode 27
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 417
Use the Define softkey to select SDI, Data, or SSM. The SDI or SSM
selections may not be available, depending on word format selection in
the Serial Decode Menu.
Use the Bit softkey to select the bit to change.
Use the 01X softkey to set the bit value.
Use the Set all Bits softkey to set all bit values to 0, 1, or X.
6 If you select the Label Range condition, use the Lable Min and Label Max
softkeys to specify the ends of the range.
Again, label values are always displayed in octal.
You can use the Zoom mode for easier navigation of the decoded data.
ARINC 429 Serial Decode
To set up the oscilloscope to capture ARINC 429 signals, see "Setup for
ARINC 429 Signals" on page 414.
To set up ARINC 429 serial decode:

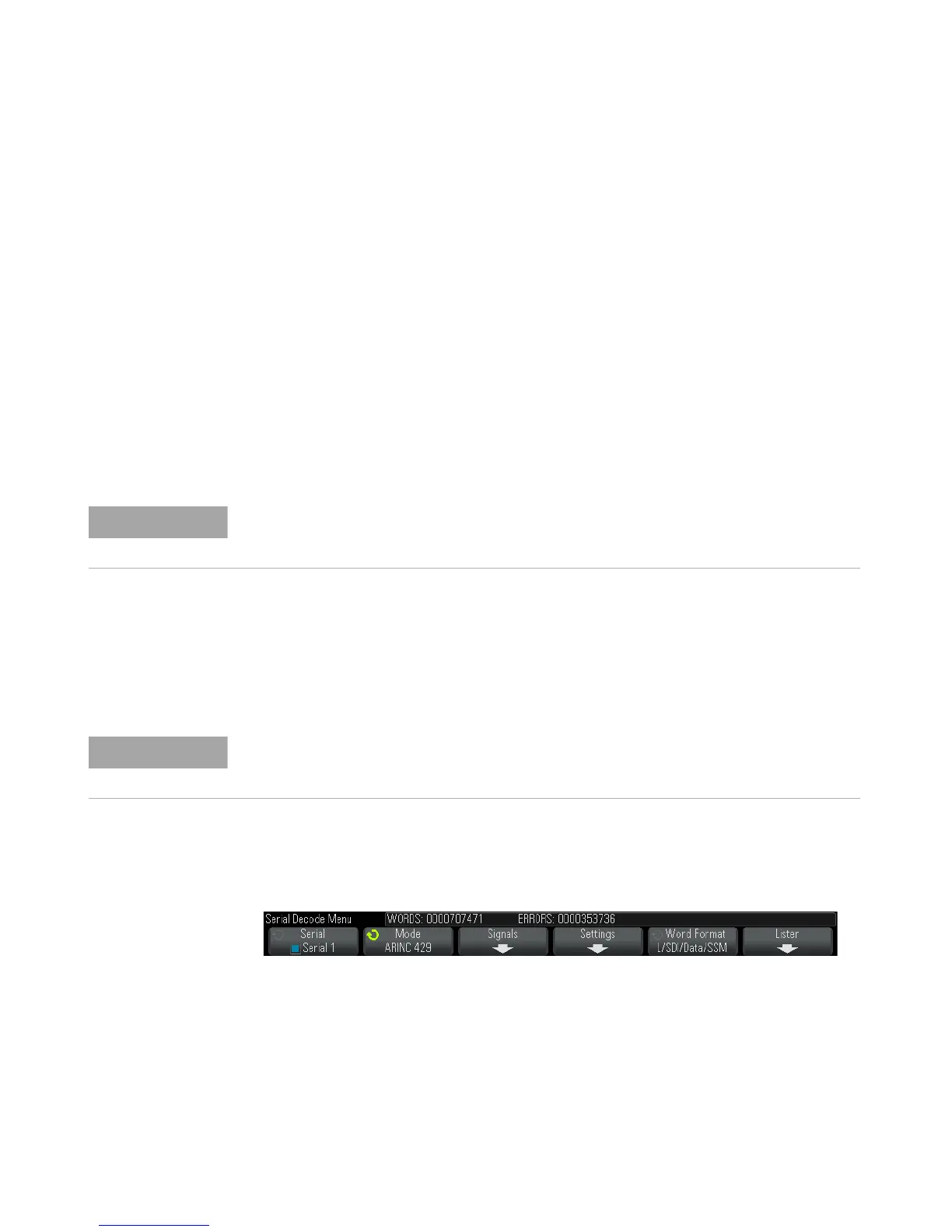

1 Press [Serial] to display the Serial Decode Menu.
2 In the submenu accessed by the Settings softkey, you can use the Base
softkey to select between hexadecimal and binary display of the
decoded data.
To display ARINC 429 serial decode, see "ARINC 429 Serial Decode" on page 417.
For ARINC 429 triggering set up see "ARINC 429 Triggering" on page 415.
