FlexRay Triggering and Serial Decode 24
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 371

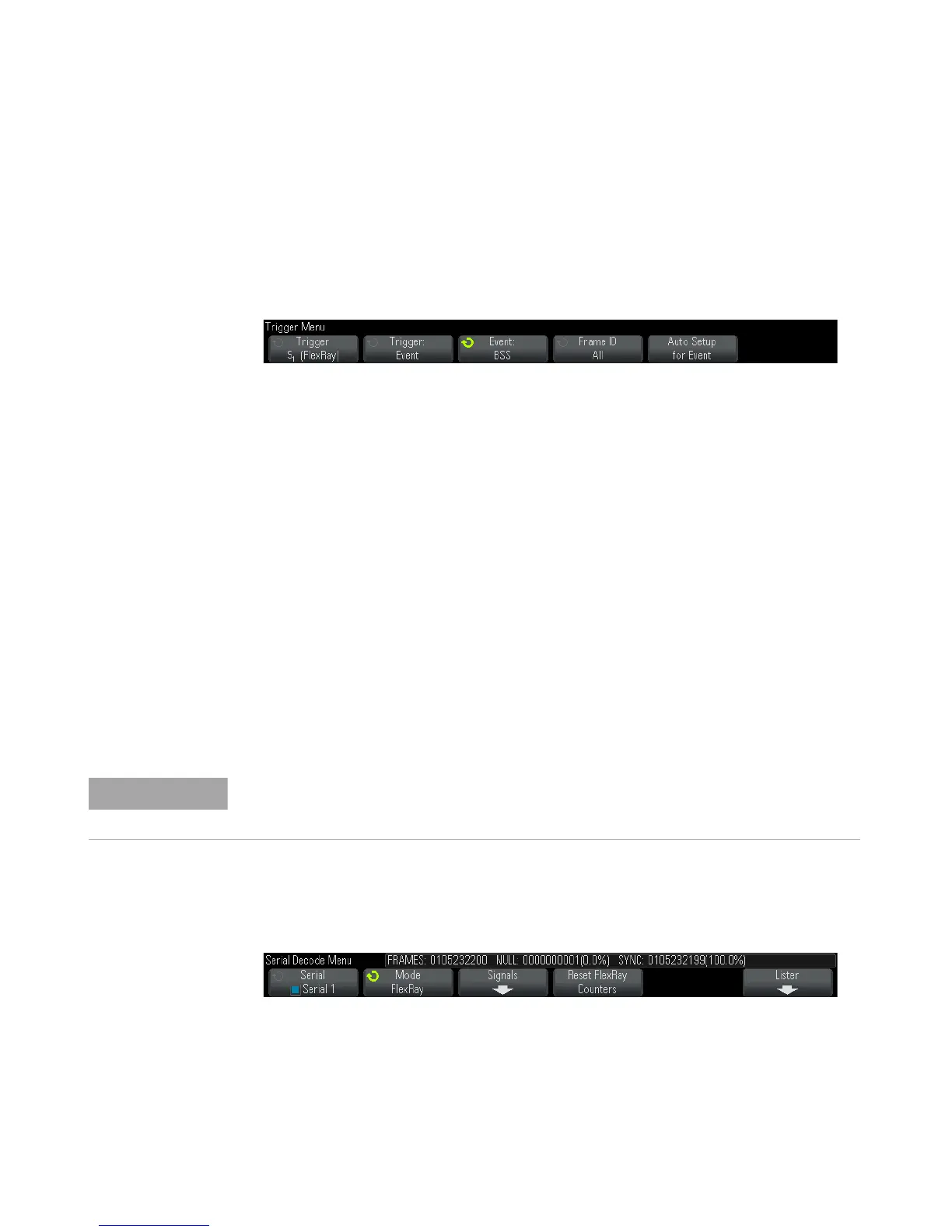

2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob
to select the serial bus (Serial 1 or Serial 2) on which the FlexRay
signals are being decoded.
3 Press the Trigger softkey; then, turn the Entry knob to select Event.
4 Press the Event softkey; then, select the event type:
• Wake-up
• TSS — Transmission Start Sequence.
• BSS — ByteStart Sequence.
• FES/DTS — Frame End or Dynamic Trailing Sequence.
5 Press Auto Setup for Event.
This automatically configures oscilloscope settings (as shown on the
display) for the selected event trigger.
FlexRay Serial Decode
To set up the oscilloscope to capture FlexRay signals, see "Setup for
FlexRay Signals" on page 367.
To set up FlexRay serial decode:
1 Press [Serial] to display the Serial Decode Menu.
2 If the decode line does not appear on the display, press the [Serial] key
to turn it on.
NOTE
For FlexRay triggering setup see "FlexRay Triggering" on page 368.
