• Only Displayed Channels — The next time you press [AutoScale], only
the channels that are turned on will be examined for signal
activity. This is useful if you only want to view specific active
channels after pressing [AutoScale].
• Press the Acq Mode softkey and turn the Entry knob to select whether
the acquisition mode should be preserved during autoscale:
• Normal — to make the oscilloscope switch to Normal acquisition
mode whenever the [AutoScale] key is pressed. This is the default
mode.
• Preserve — to make the oscilloscope remain in the acquisition mode
you have chosen when the [AutoScale] key is pressed.
Setting the Oscilloscope's Clock
The Clock Menu lets you set the current date and time of day (24-hour
format). This time/date stamp will appear on hardcopy prints and
directory information on the USB mass storage device.
To set the date and time, or to view the current date and time:

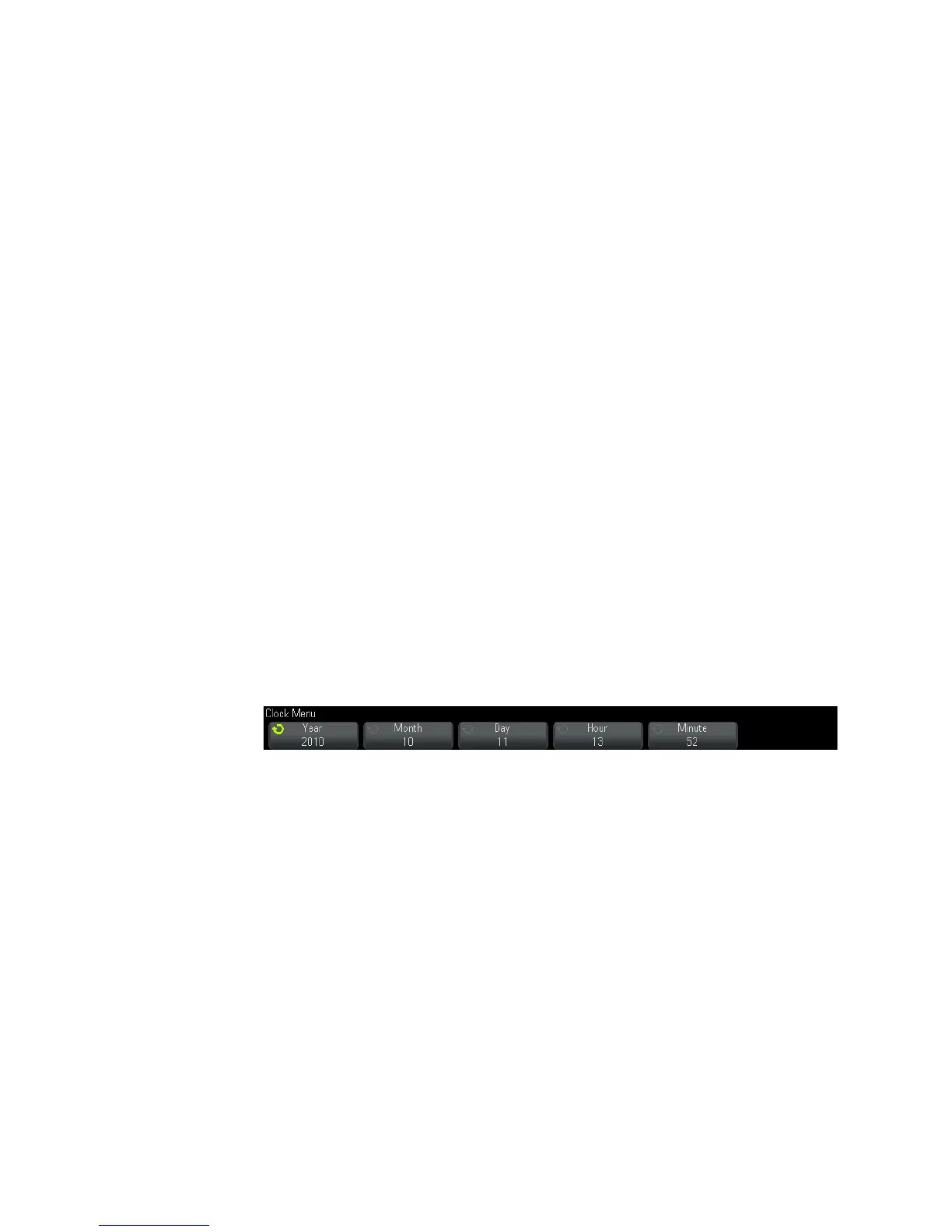

1 Press [Utility] > Options > Clock.
2 Press the Year, Month, Day, Hour or Minute softkey; then, rotate the Entry
knob to set to the desired number.
The hours are shown in the 24- hour format. So 1:00 PM is hour 13.
The real- time clock only allows selection of valid dates. If a day is
selected and the month or year is changed so the day is invalid, the day
is automatically adjusted.
Setting the Rear Panel TRIG OUT Source
You can choose the source of the TRIG OUT connector on the rear panel
of the oscilloscope:
