Agilent Technologies InfiniiVision 3000 X-Series User Manual

CAN/LIN Triggering and Serial Decode 23
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 365
• If the header exceeds the length specified in the standard, THM will
appear red.
• If the total frame count exceeds the length specified in the standard,
TFM will appear red (LIN 1.3 only).
• For LIN 1.3 a wakeup signal is indicated by WAKE in blue. If the
wakeup signal is not followed by a valid wakeup delimiter a wakeup
error is detected and displayed as WUP in red.

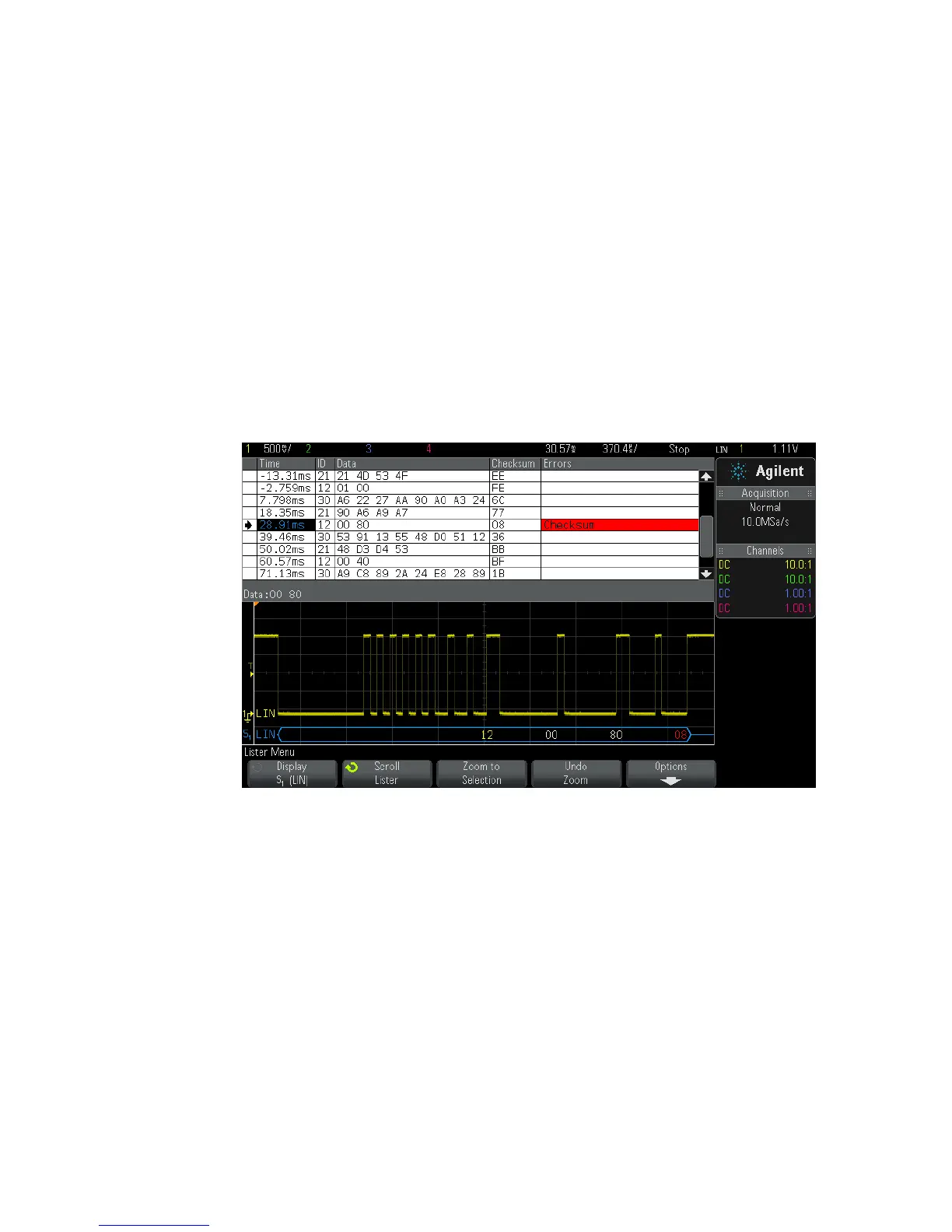

Interpreting LIN Lister Data
In addition to the standard Time column, the LIN Lister contains these
columns:
• ID — frame ID.
• Data — (LIN 1.3 only) data bytes.
• Checksum — (LIN 1.3 only).
• Data and Checksum — (LIN 2.0 only).
• Errors — highlighted in red.
Aliased data is highlighted in pink. When this happens, decrease the
horizontal time/div setting and run again.
