Overshoot
Overshoot is distortion that follows a major edge transition expressed as a
percentage of Amplitude. The X cursors show which edge is being
measured (edge closest to the trigger reference point).

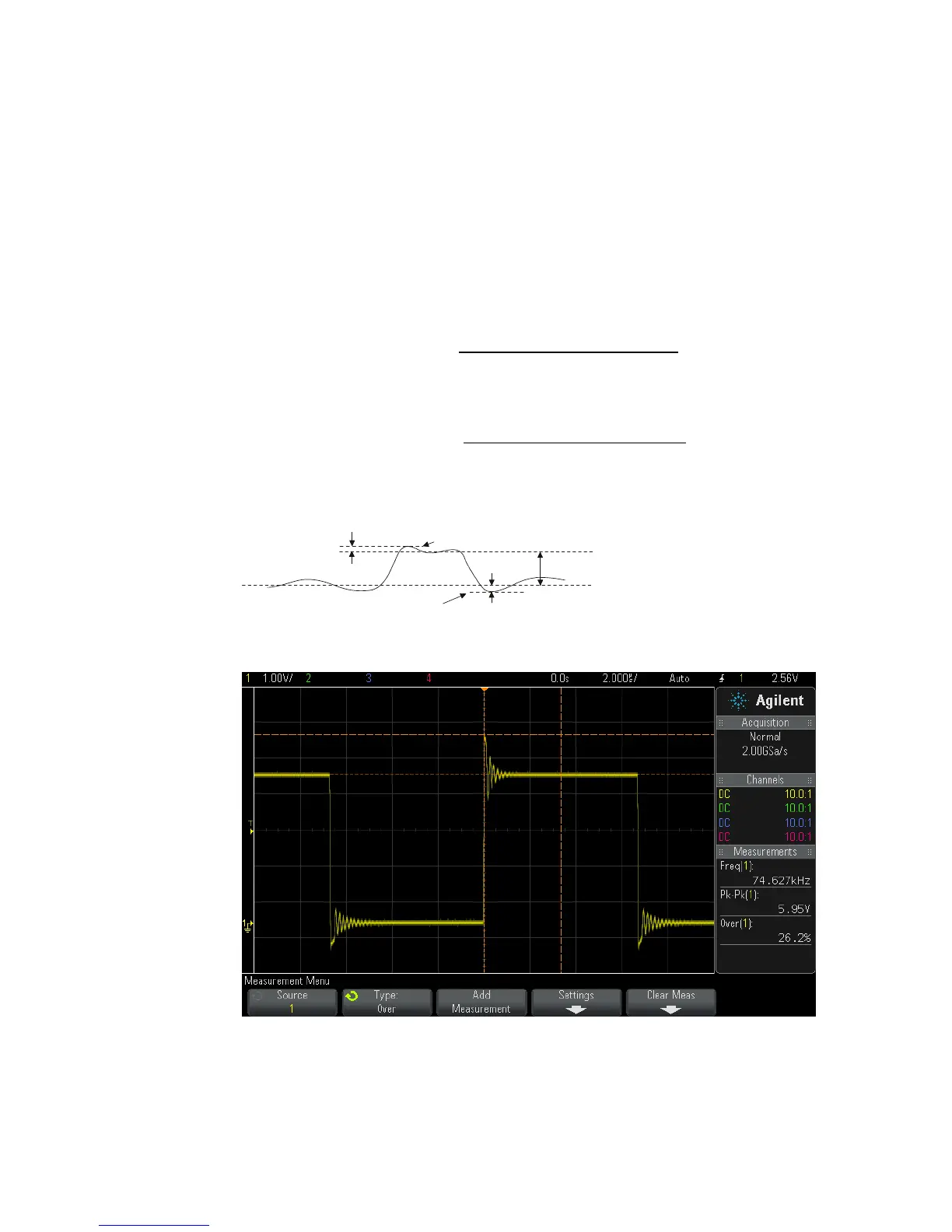

Figure 47 Automatic Overshoot measurement
Rising edge overshοot =
local Maximum − D Top
Amplitude
× 100
Falling edge overshοot =
Base − D local Minimum
Amplitude
× 100
Overshoot
local Maximum
local Minimum
Base
Top
Overshoot
