234 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
14 Measurements
1 Press the [Meas] key to display the Measurement Menu.
2 Press the Source softkey; then turn the Entry knob to select the first
analog channel source.
3 Press the Ty pe : softkey; then, turn the Entry knob to select Delay.
4 Press the Settings softkey to select the second analog channel source for
the phase measurement.
The default Phase settings measure from channel 1 to channel 2.
5 Press the Back/Up key to return to the Measurement Menu.
6 Press the Add Measurement softkey to make the measurement.

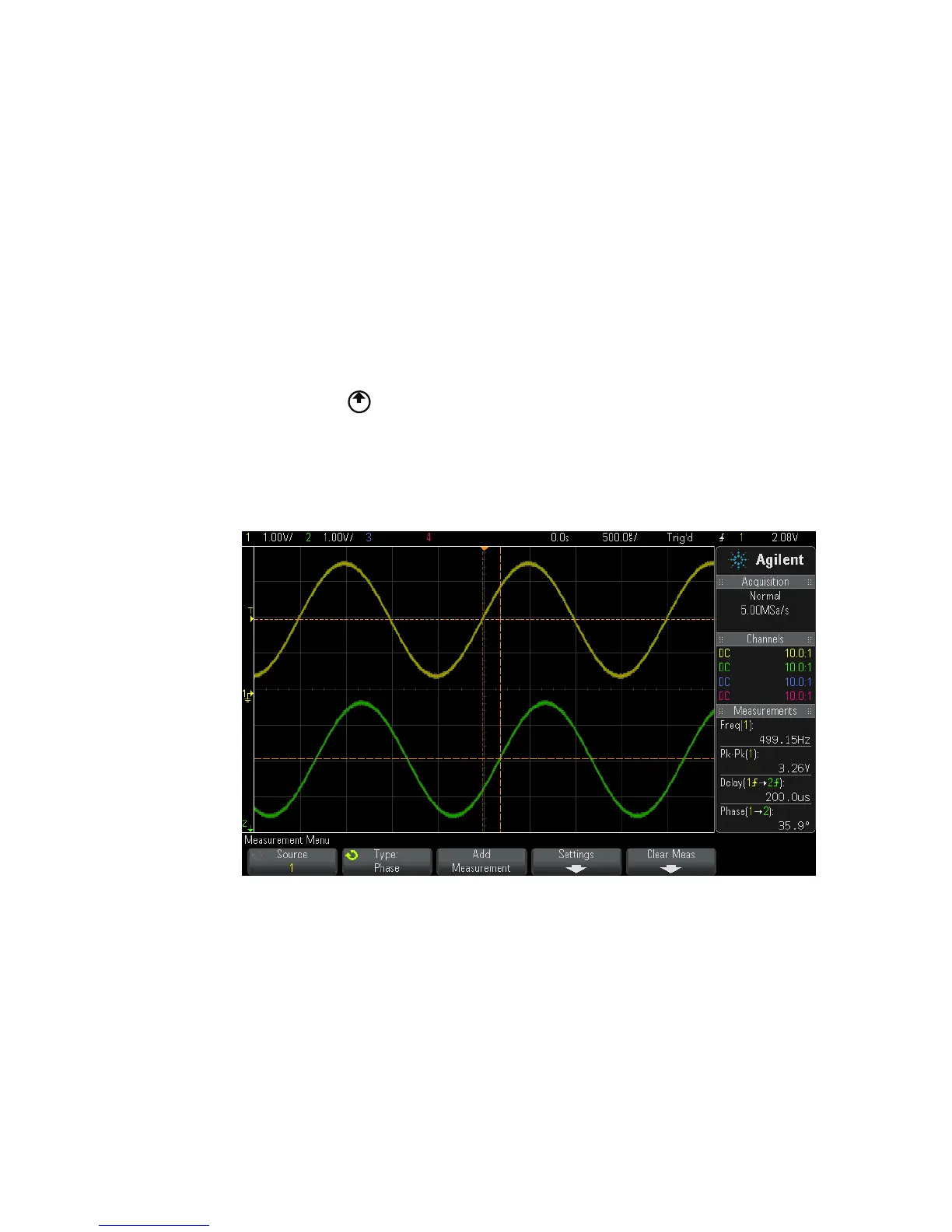

The example below shows a phase measurement between the channel 1
and the math d/dt function on channel 1.
X at Min Y
X at Min Y is the X axis value (usually time) at the first displayed
occurrence of the waveform Minimum, starting from the left- side of the
display. For periodic signals, the position of the minimum may vary
throughout the waveform. The X cursor shows where the current X at Min
Y value is being measured.
