14 Measurements
To make automatic measurements

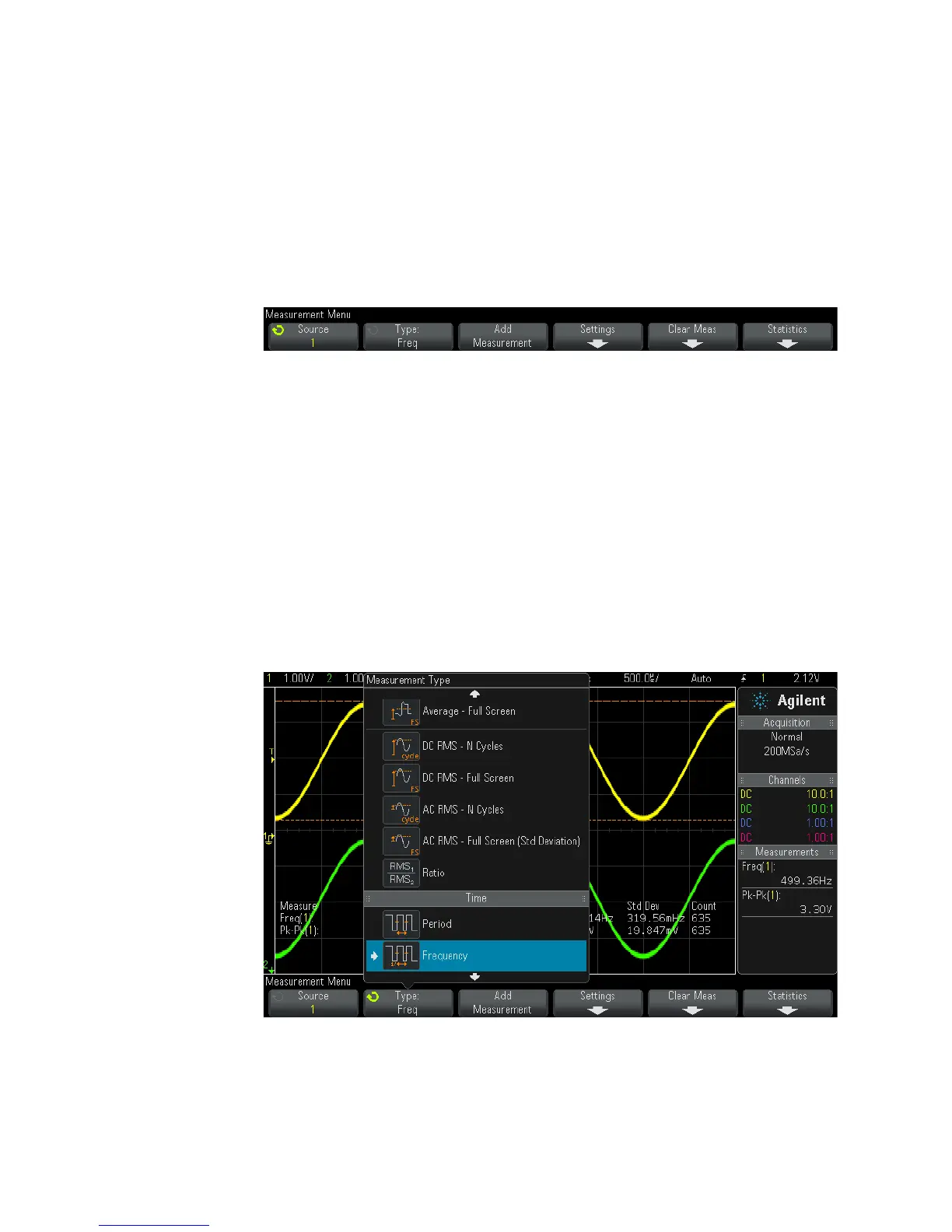

1 Press the [Meas] key to display the Measurement Menu.
2 Press the Source softkey to select the channel, running math function,
or reference waveform to be measured.
Only channels, math functions, or reference waveforms that are
displayed are available for measurements.
If a portion of the waveform required for a measurement is not
displayed or does not display enough resolution to make the
measurement, the result will display "No Edges", "Clipped", "Low Signal",
"< value", or "> value", or a similar message to indicate that the
measurement may not be reliable.
3 Press the Ty pe : softkey; then, rotate the Entry knob to select a
measurement to be made.
