Agilent Technologies InfiniiVision 3000 X-Series User Manual

266 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
17 Waveform Generator
To specify the voltage values of points:
1 Press Point #; then, use the Entry knob to select the point whose voltage
value you wish to set.
2 Press Voltage; then, use the Entry knob to set the point's voltage value.
To insert a point:
1 Press Point #; then, use the Entry knob to select the point after which
the new point will be inserted.
2 Press Insert Point.
All points are adjusted to maintain uniform time spacing between
points.
To remove a point:
1 Press Point #; then, use the Entry knob to select the point you want to
remove.
2 Press Remove Point.
All points are adjusted to maintain uniform time spacing between
points.
The Transparen t softkey enables or disables transparent backgrounds. When
enabled, you can view underlying waveforms. When disabled, the
background is shaded.
Capturing Other Waveforms to the Arbitrary Waveform

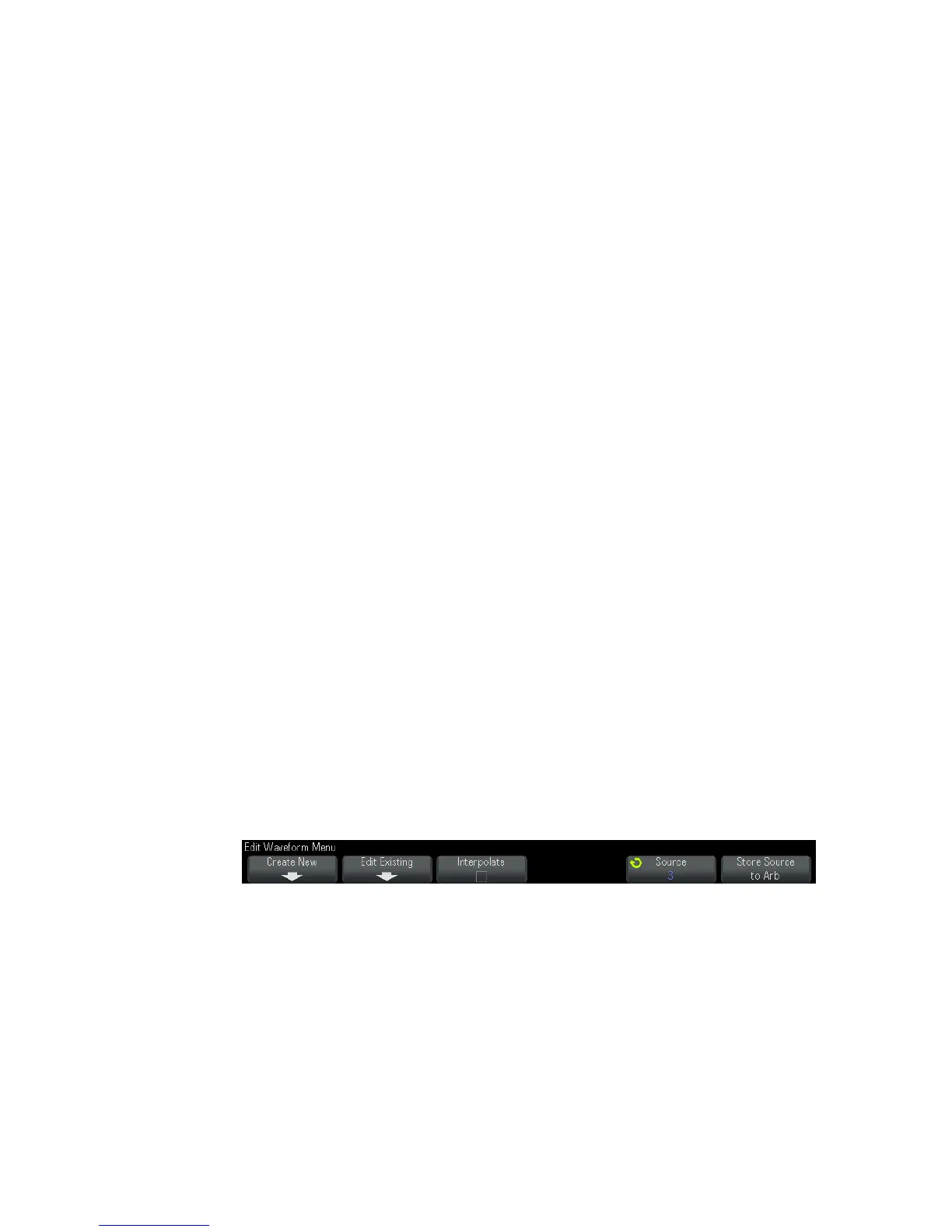

The Edit Waveform Menu is opened by pressing Edit Waveform in the main
Waveform Generator Menu.
To capture another waveform to the arbitrary waveform:
1 Press Source; then, use the Entry knob to select the analog channel,
math, or reference location whose waveform you wish to capture.
2 Press Store Source to Arb.
