416 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
27 MIL-STD-1553/ARINC 429 Triggering and Serial Decode
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob
to select the serial slot (Serial 1 or Serial 2) on which the ARINC 429
signal is being decoded.
3 Press the Trigger: softkey; then, turn the Entry knob to select the trigger
condition:
• Word Start — triggers on the start of a word.
• Word Stop — triggers at the end of a word.
• Label — triggers on the specified label value.
• Label + Bits — triggers on the label and the other word fields as
specified.
• Label Range — triggers on a label following in a min/max range.
• Parity Error — triggers on words with a parity error.
• Word Error — triggers on an intra- word coding error.
• Gap Error — triggers on an inter- word gap error.
• Word or Gap Error — triggers on either a Word or Gap Error.
• All Errors — triggers on any of the above errors.
• All Bits (Eye) — triggers on any bit, which will therefore form an eye
diagram.
• All 0 Bits — triggers on any bit with a value of zero.
• All 1 Bits — triggers on any bit with a value of one.

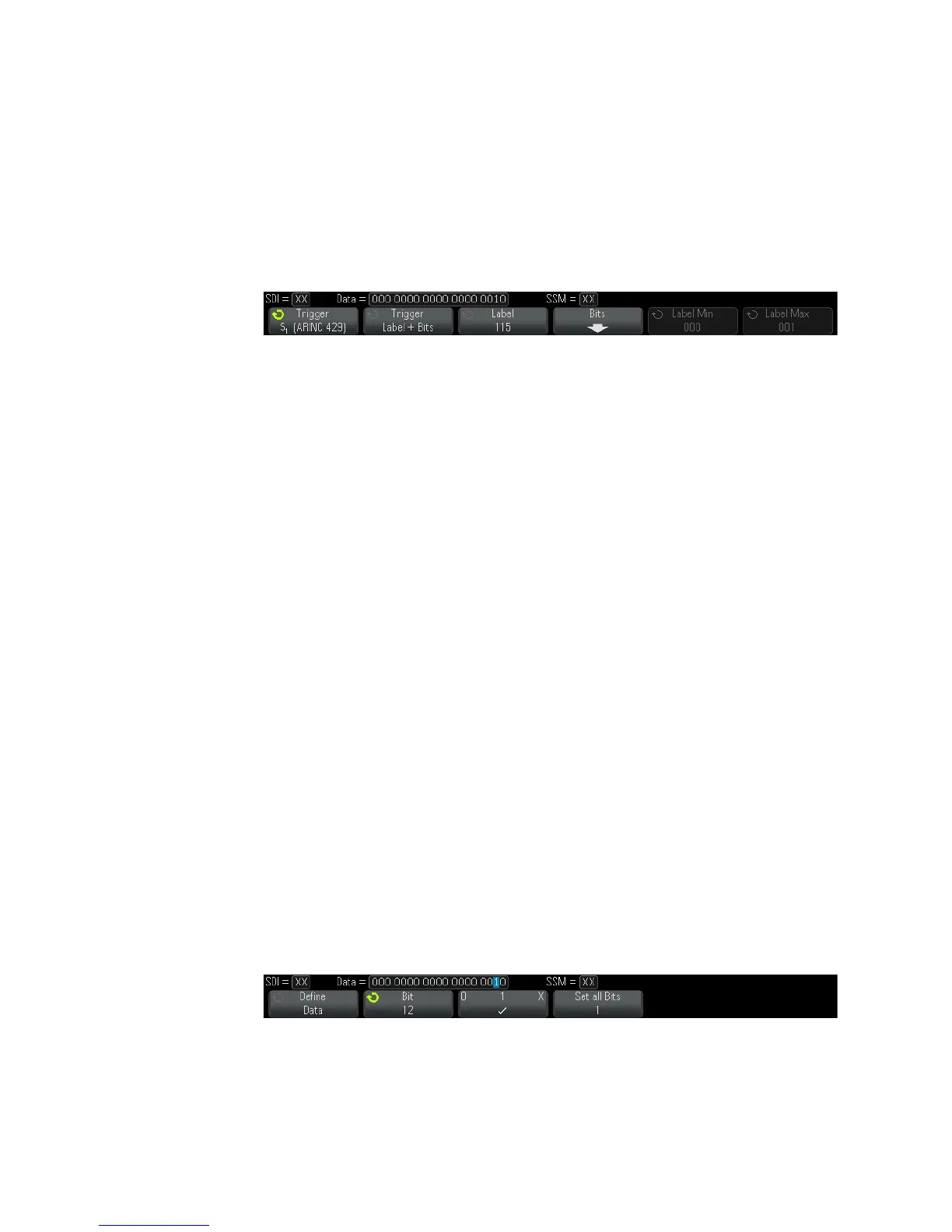

4 If you select the Label or Label + Bits condition, use the Label softkey to
specify the label value.
Label values are always displayed in octal.
5 If you select the Label + Bits condition, use the Bits softkey and submenu
to specify the bit values:
