14. Top I/O-panel USB connector (TIO USB C1)
15.Top I/O-panel USB connector (TIO USB C2)
16.Top I/O-panel USB connector (TIO USB A)
17. SSD slot (M.2 PCIe SSD-2)
18.SSD slot (M.2 PCIe SSD-1)
19.Power-supply connector (PSU DATA)
20.Front-fan connector (FAN5)
21. SATA 6 Gbps drive connector (SATA-0)
22.SATA power connector (SATA PWR)
23.SATA 6 Gbps drive connector (SATA-1)
24.SATA 6 Gbps drive connector (SATA-2)
25.Bottom-fan connector (FAN6)
26.AlienFX data connector (ELC_DATA2)
27.Wireless-card slot (M.2 WLAN)
28.Bottom-fan connector (FAN7)
29.Audio connector (TIO AUDIO)
30.Graphics-card PCIe x4 slot (SLOT 3)
31. Graphics-card PCIe x4 slot (SLOT 2)
32.Graphics-card PCIe x16 slot (SLOT 1)
33.SSD slot (M.2 PCIe SSD-0)
34.Air-cooling pump connector (FAN CPU)
35.Liquid-cooling pump LED connector (LED_PUMP)
36.Liquid-cooling pump fan connector (PWR PUMP)

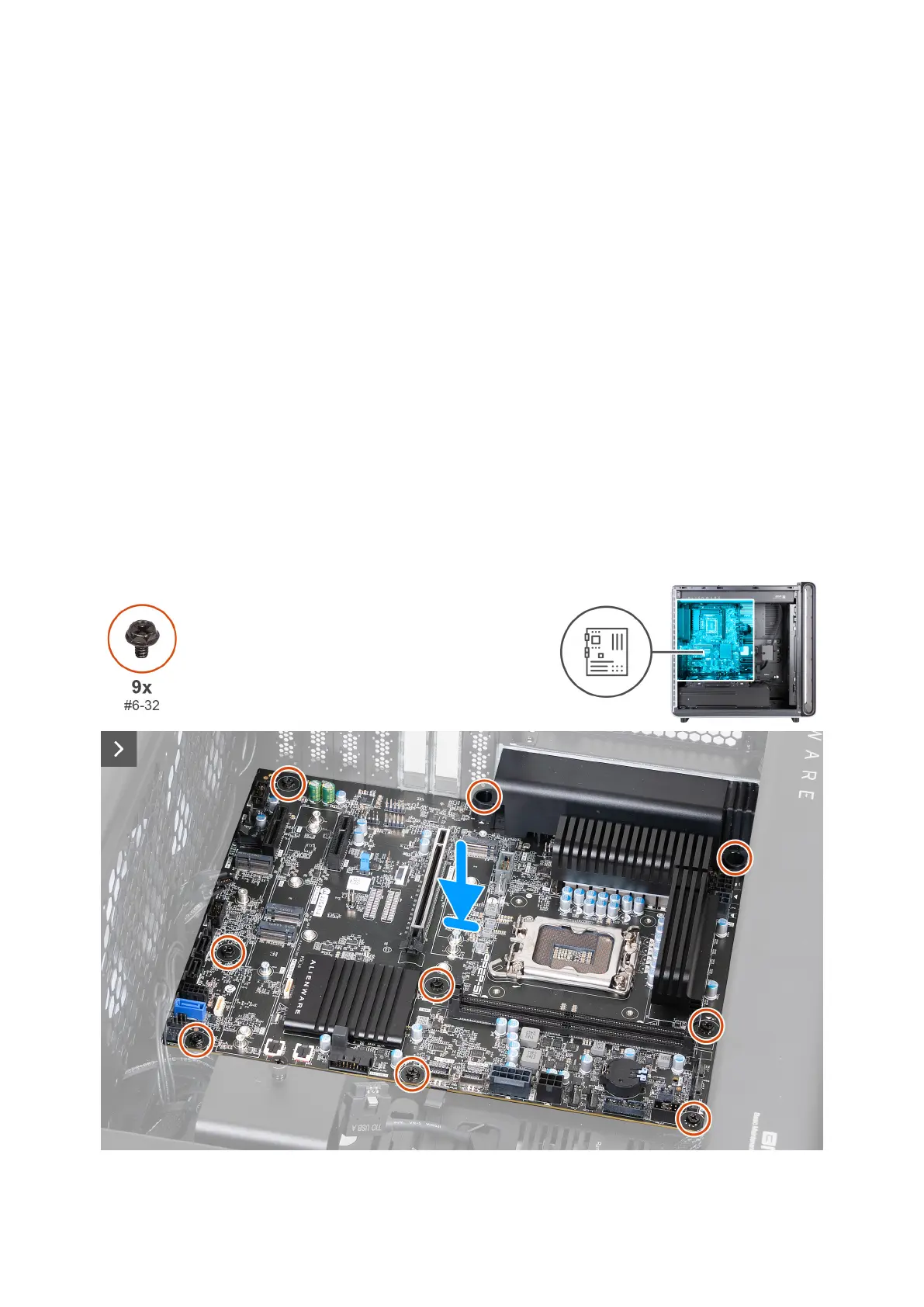

The following images indicate the location of the system board and provide a visual representation of the installation procedure.
Figure 124. Installing the system board
