Testing Machine and Electronic Control Functions

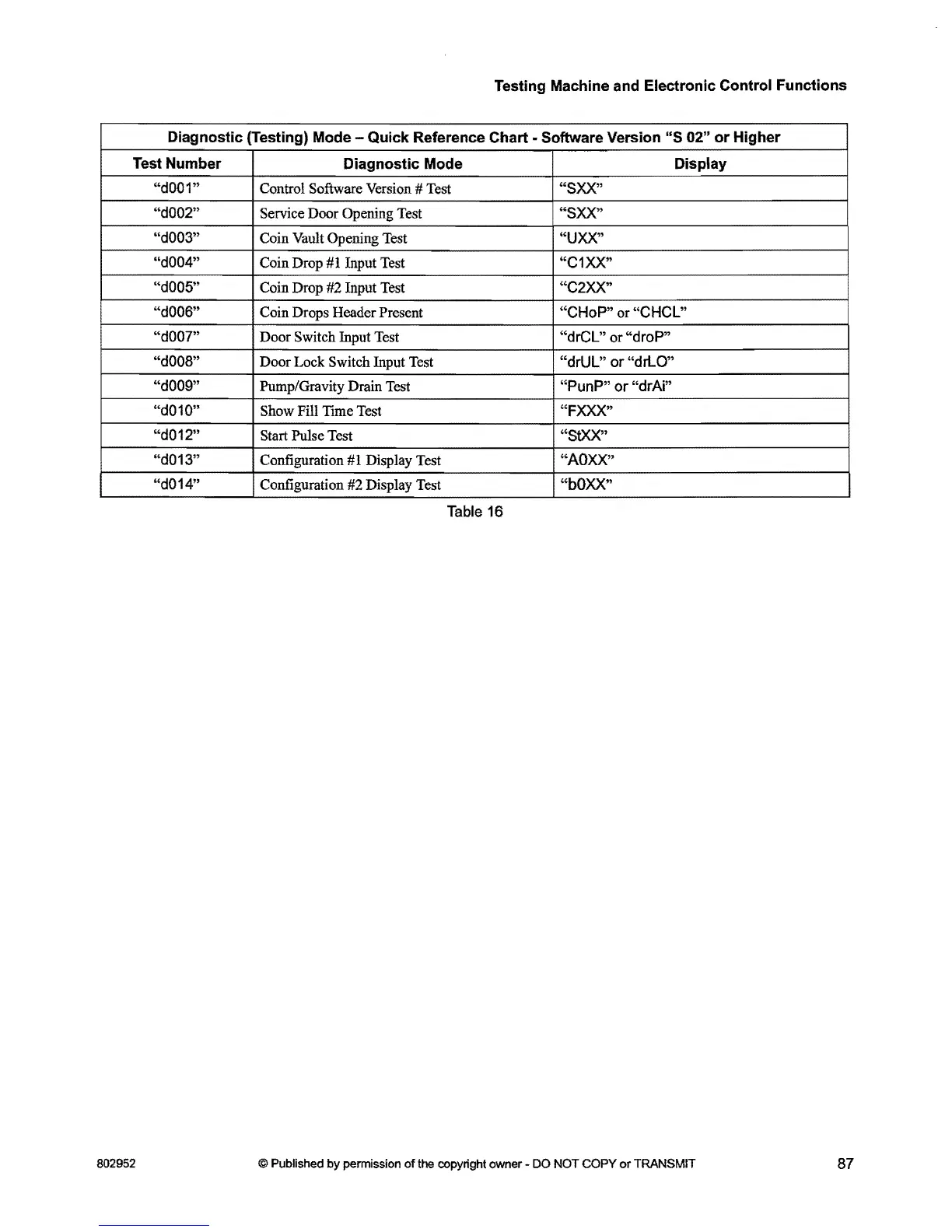

Diagnostic (Testing) Mode - Quick Reference
Chart·
Software Version
"5
02"
or
Higher
Test Number
Diagnostic Mode
Display
"dOO1"
Control Software Version # Test
"SXX"
"dOO2"
Service Door Opening Test
"SXX"
"dOO3"
Coin Vault Opening Test
"UXX"
"dOO4"
Coin Drop # 1 Input Test
"C1XX"
"dOO5"
Coin Drop #2 Input Test
"C2XX"
"dOO6"
Coin Drops Header Present
"CHoP" or "CHCL"
"dOO?"
Door
Switch Input Test "drCL" or "droP"
"dOO8"
Door Lock Switch Input Test
"drUL"
or
"drLO"
"dOO9"
Pump/Gravity Drain Test
"PunP"
or
"drAi"
"d010"
Show Fill Time Test
"FXXX"
"d012"
Start Pulse Test
"StXX"
"d013" Configuration
#1
Display Test
"AOXX"
"d014"
Configuration
#2
Display Test
"bOXX"
Table
