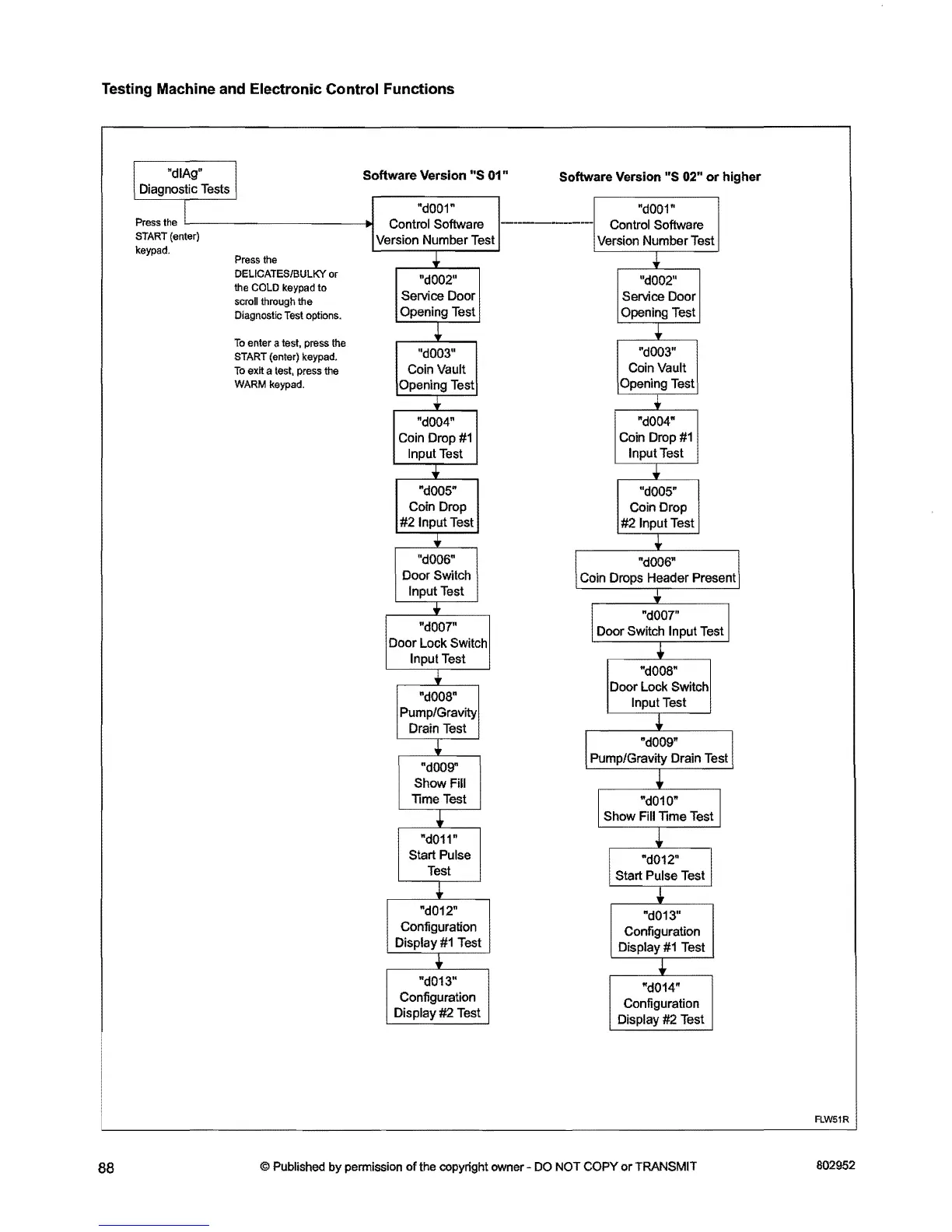

Testing Machine and Electronic Control Functions
"dIAg" \
Software Version "s 01'
Diagnostic Tests
\
Press Ihe IL- _________ ---.t
START (enter)
keypad.
Press the
DELICATES/BULKY or
the COLD keypad to
scroll through the
Diagnostic
Test options.
To enter a test. press the
START (enter) keypad.
To exit a test. press the
WARM keypad.
"d001"
Control Software
Version Number
Test
+
"d002"
Service Door
Opening
Test
+
"d003"
Coin Vault
Opening
Test
...
"d004"
Coin Drop #1
Input Test
...
"dOOS"
Coin Drop
#2 Input Test
...
"dOOe"
Door Switch
Input Test
..
"d007"
Door
Lock Switch
Input Test
"dOOS"
Pump/Gravity
Drain Test
..
"dOO9"
Show Fill
lime Test
+
"d011"
Start Pulse
Test
"d012"
Configuration
Display
#1 Test
..
"d013"
Configuration
Display
#2 Test
Software Version "s 02" or higher
"dOO1"
---
Control Software
Version Number Test
+
"dOO2"
Service Door
Opening Test
+
"dOO3"
Coin Vault
Opening Test
..
"dOO4"
Coin Drop #1
Input Test
+
"dOOS"
Coin Drop
#2 Input Test
+
\ "dOOe" II
Coin Drops Header Present
..
"d007" \
Door
Switch Input Test
+
"dOOS"
Door Lock Switch
Input
Test
+
1 "d009" .1
Pump/Gravity Drain Test
+
I "d010·
Show Fill lime Test
+
"d012" I
Start Pulse Test
+
"d013"
Configuration
Display
#1 Test
+
"d014"
Configuration
Display
#2 Test
FlW51R
88
