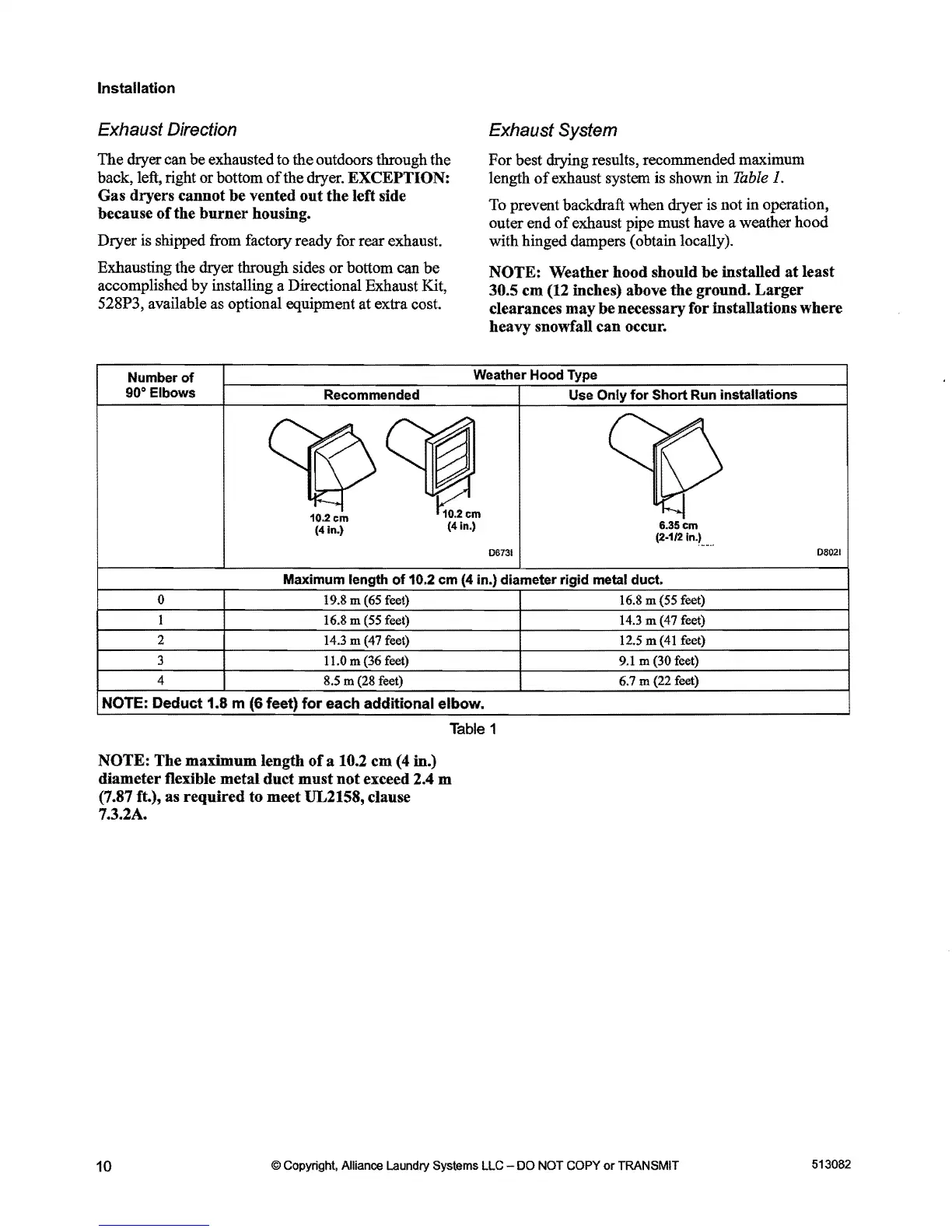

Installation
Exhaust Direction
The dryer can be exhausted to the outdoors through the
back, left, right or bottom
of
the dryer.
EXCEPTION:
Gas
dryers
cannot
be
vented
out
the
left side
because
of
the
burner
housing.
Dryer is shipped from factory ready for rear exhaust.
Exhausting the dryer through sides or bottom can
be
accomplished
by
installing a Directional Exhaust Kit,
528P3, available as optional equipment at extra cost.
Exhaust System
For best drying results, recommended maximum
length
of
exhaust system is shown in Table 1.
To prevent backdraft when dryer is not in operation,
outer end
of
exhaust pipe must have a weather hood
with hinged dampers (obtain locally).
NOTE:
Weather
hood
should be installed
at
least
30.5
cm
(12 inches) above
the
ground.
Larger
clearances
may
be
necessary
for
installations
where
heavy snowfall
can
occur.
Number
of
90°
Elbows
Weather Hood
Type
Recommended
Use Only for Short Run installations
~~~
(4 in.) (4 In.)
06731
6.35cm
(2-112
In.L.
08021
Maximum length
of
10.2 cm
(4
in.) diameter rigid metal duct.
0 19.8 m (65 feet) 16.8 m (55 feet)
1 16.8 m (55 feet) 14.3 m (47 feet)
2
14.3 m (47 feet)
12.5
m(41
feet)
3 11.0 m (36 feet) 9.1 m (30 feet)
4
8.5 m (28 feet) 6.7 m (22 feet)
NOTE:
Deduct
1.8
m (6 feet)
for
each
additional
elbow.
Table
1
NOTE:
The
maximum
length
of
a 10.2
cm
(4 in.)
diameter
flexible
metal
duct
must
not
exceed 2.4 m
(7.87 ft.), as
required
to
meet
UL2158, clause
7.3.2A.
10
© Copyright, Alliance Laundry Systems LLC - DO NOT COPY
or
TRANSMIT
513082
