Installation
Multi-Dryer Installation Exhaust
Requirements

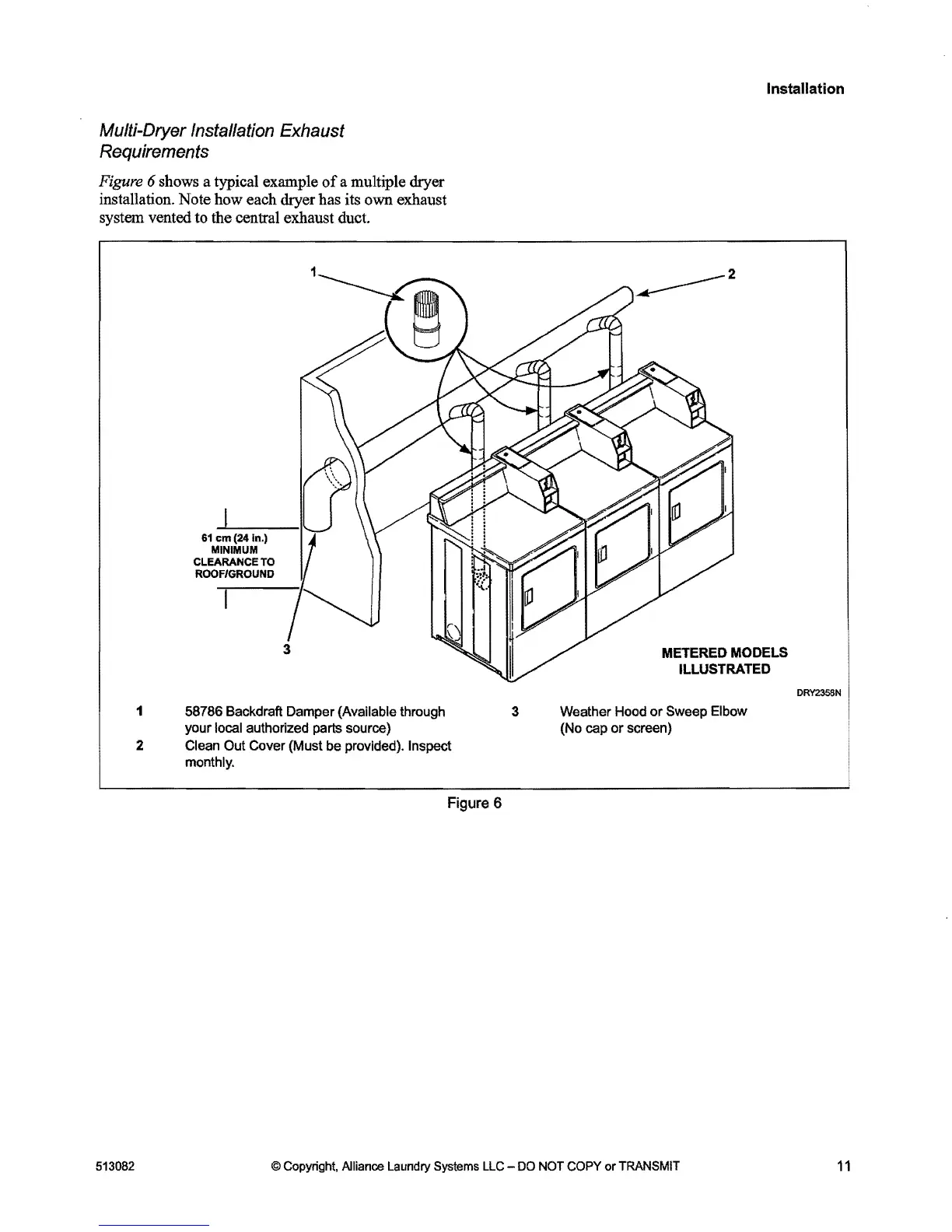

Figure 6 shows a typical example
of
a multiple dryer
installation. Note how each dryer has
its own exhaust
system vented to the central exhaust duct.
61
em (24 In.)
MINIMUM
CLEARANCE
TO
ROOF/GROUND
1
METERED
MODELS
ILLUSTRATED
DRY2358N
1
2
58786 Backdraft Damper (Available through
your local authorized parts source)
Clean Out Cover (Must be provided). Inspect
monthly.
3
Weather Hood
or
Sweep Elbow
(No cap
or
screen)
Figure 6
