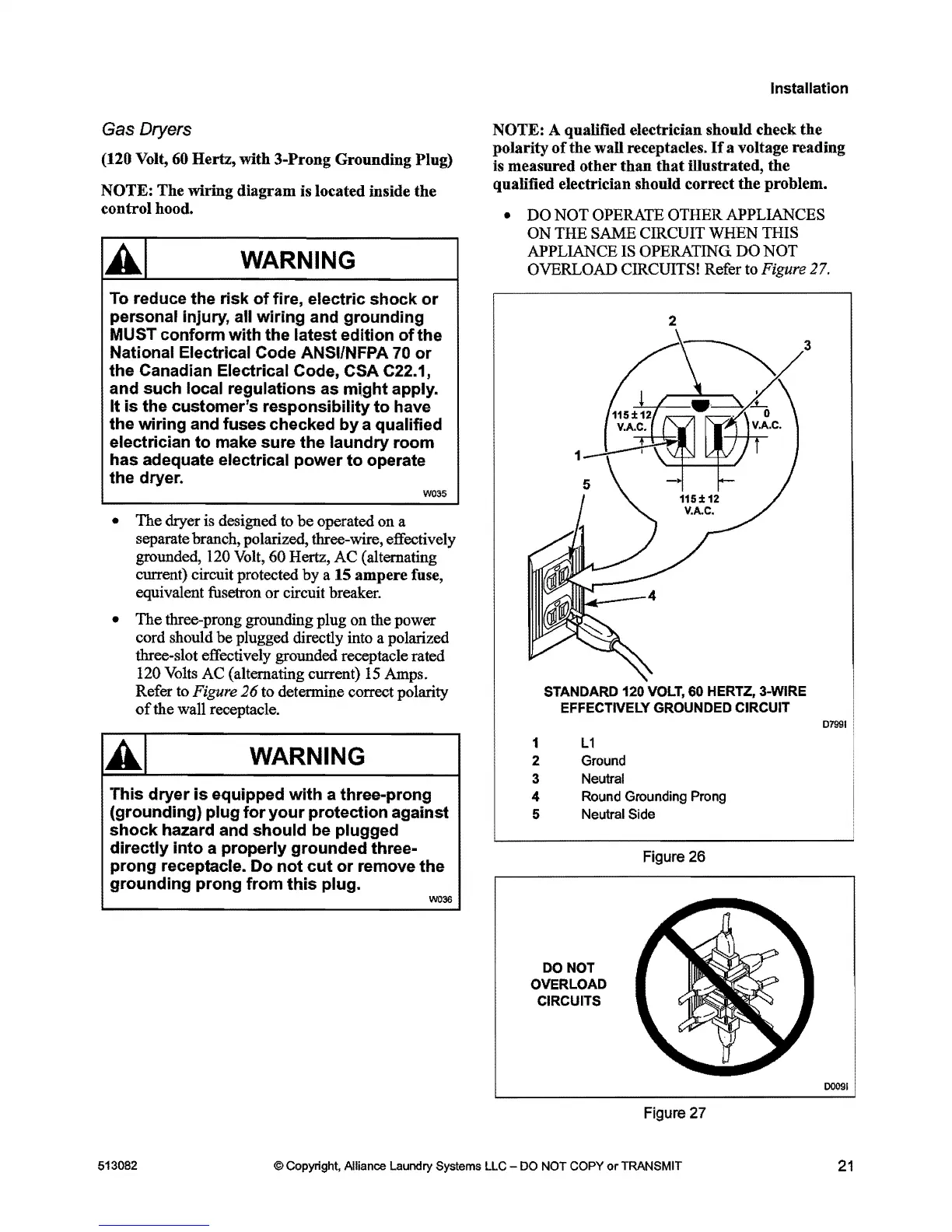

Gas Dryers
(120 Volt, 60
Hertz,
with
3-Prong
Grounding
Plug)
NOTE:
The
wiring
diagram
is
located
inside
the
control
hood.
AI
WARNING
To reduce the risk
of
fire, electric
shock
or
personal injury, all
wiring
and grounding
MUST conform
with
the latest edition
ofthe
National Electrical Code ANSI/NFPA
70
or
the
Canadian Electrical Code, CSA C22.1,
and
such
local regulations as
might
apply.
It
is
the customer's
responsibility
to
have
the wiring and fuses checked
by
a qualified
electrician
to
make sure
the
laundry
room
has
adequate electrical
power
to
operate
the dryer.
W035
•
The
dryer is designed to
be
operated
on
a
separate branch, polarized, three-wire, effectively
grounded, 120 Volt,
60
Hertz,
AC
(alternating
current) circuit protected
by
a 15
ampere
fuse,
equivalent fusetron
or
circuit breaker.
•
The
three-prong grounding plug
on
the power
cord should
be
plugged directly into a polarized
three-slot effectively grounded receptacle rated
120 Volts AC (alternating current) 15 Amps.
Refer to
Figure
26
to determine correct polarity
of
the wall receptacle.
AI
WARNING
This
dryer
is
equipped
with
a three-prong
(grounding) plug
for
your
protection against
shock
hazard and
should
be plugged
directly
into
a properly
grounded
three-
prong
receptacle.
Do
not
cut
or
remove
the
grounding
prong
from
this
plug.
W036
Installation
NOTE:
A
qualified
electrician
should
check
the
polarity
of
the
wall
receptacles.
If
a
voltage
reading
is
measured
other
than
that
illustrated,
the
qualified
electrician
should
correct
the
problem.
•
DO
NOT
OPERATE
OTHER
APPLIANCES
ON
THE
SAME CIRCUIT
WHEN
THIS
APPLIANCE IS OPERATING
DO
NOT
OVERLOAD CIRCUITS! Refer to Figure 27.
2
3
STANDARD
120
VOLT,
60
HERTZ,
3-WIRE
EFFECTIVELY
GROUNDED
CIRCUIT
1
L1
2
Ground
3
Neutral
4
Round
Grounding
Prong
5
Neutral
Side
Figure
26
DO
NOT
OVERLOAD
CIRCUITS
00091
Figure
27
513082
©
Copyright, Alliance Laundry Systems LLC - DO NOT
COpy
or
TRANSMIT
21
07991
