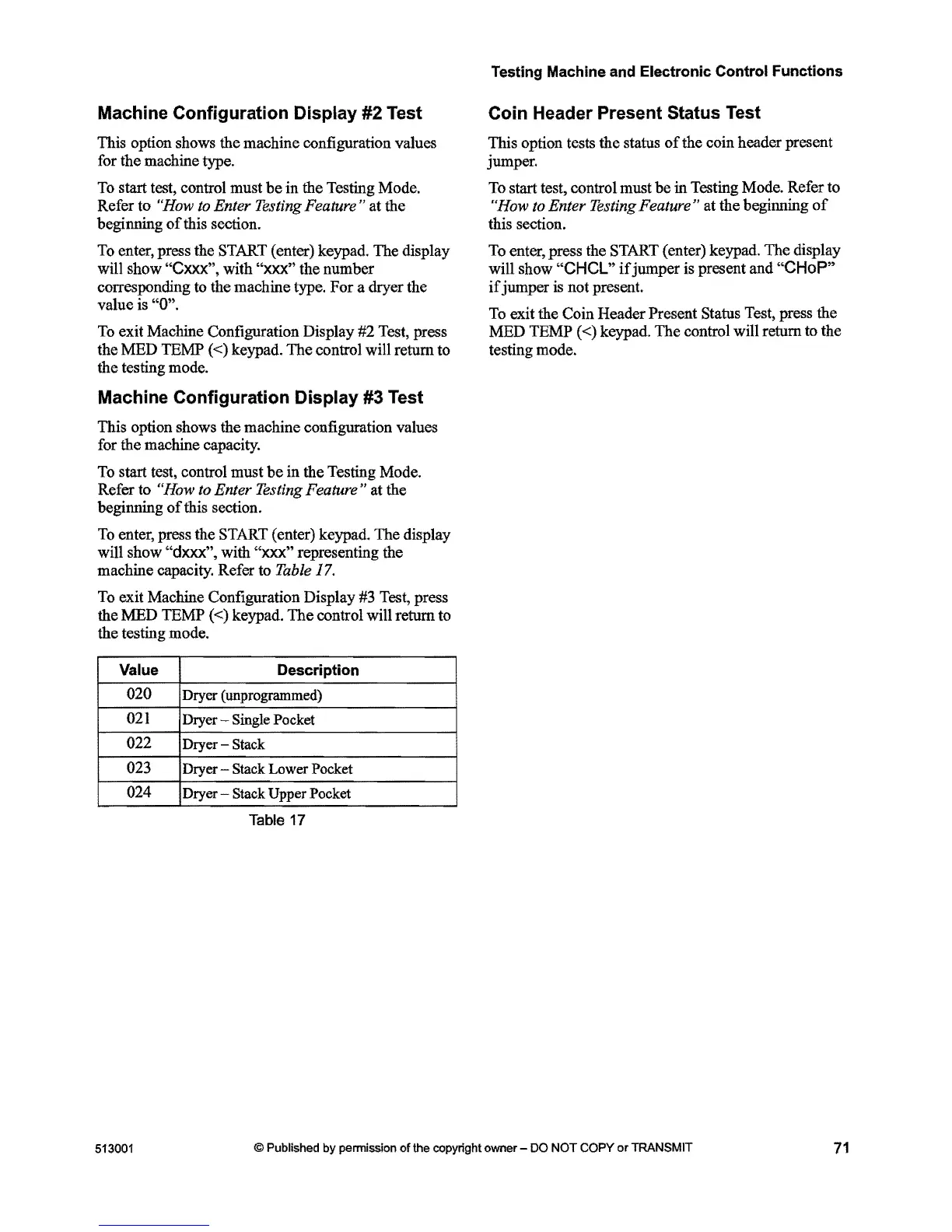

Testing Machine and Electronic Control Functions
Machine Configuration Display
#2
Test
This option shows the machine configuration values
for the machine type.
To start test, control must
be
in the Testing Mode.
Refer to
"How
to
Enter
Testing
Feature" at the
beginning
of
this section.
To enter, press the START (enter) keypad. The display
will show "Cxxx", with "xxx" the number
corresponding to the machine type.
For
a dryer the
value is "0".
To exit Machine Configuration Display #2 Test, press
the
MED
TEMP
«)
keypad.
The
control will return to
the testing mode.
Machine Configuration Display #3 Test
This option shows the machine configuration values
for the machine capacity.
To start test, control must
be
in the Testing Mode.
Refer to
"How
to
Enter
Testing
Feature" at the
beginning
of
this section.
To enter, press the START (enter) keypad.
The
display
will show "dxxx", with
"xxx"
representing the
machine capacity. Refer to
Table
17.
To exit Machine Configuration Display #3 Test, press
the
MED
TEMP
«)
keypad.
The
control will return to
the testing mode.
Value
Description
020
Dryer (unprogrammed)
021
Dryer Single Pocket
022
Dryer - Stack
023
Dryer - Stack Lower Pocket
024
Dryer - Stack Upper Pocket
Table 17
Coin Header Present Status Test
This option tests the status
of
the coin header present
jumper.
To start test, control must
be
in
Testing Mode. Refer to
"How
to
Enter
Testing
Feature" at the beginning
of
this section.
To enter, press the START (enter) keypad.
The
display
will show "CHCL"
if
jumper
is present and "CHoP"
if
jumper
is not present.
To exit the Coin Header Present Status Test, press the
MED TEMP «) keypad.
The
control will return to the
testing mode.
