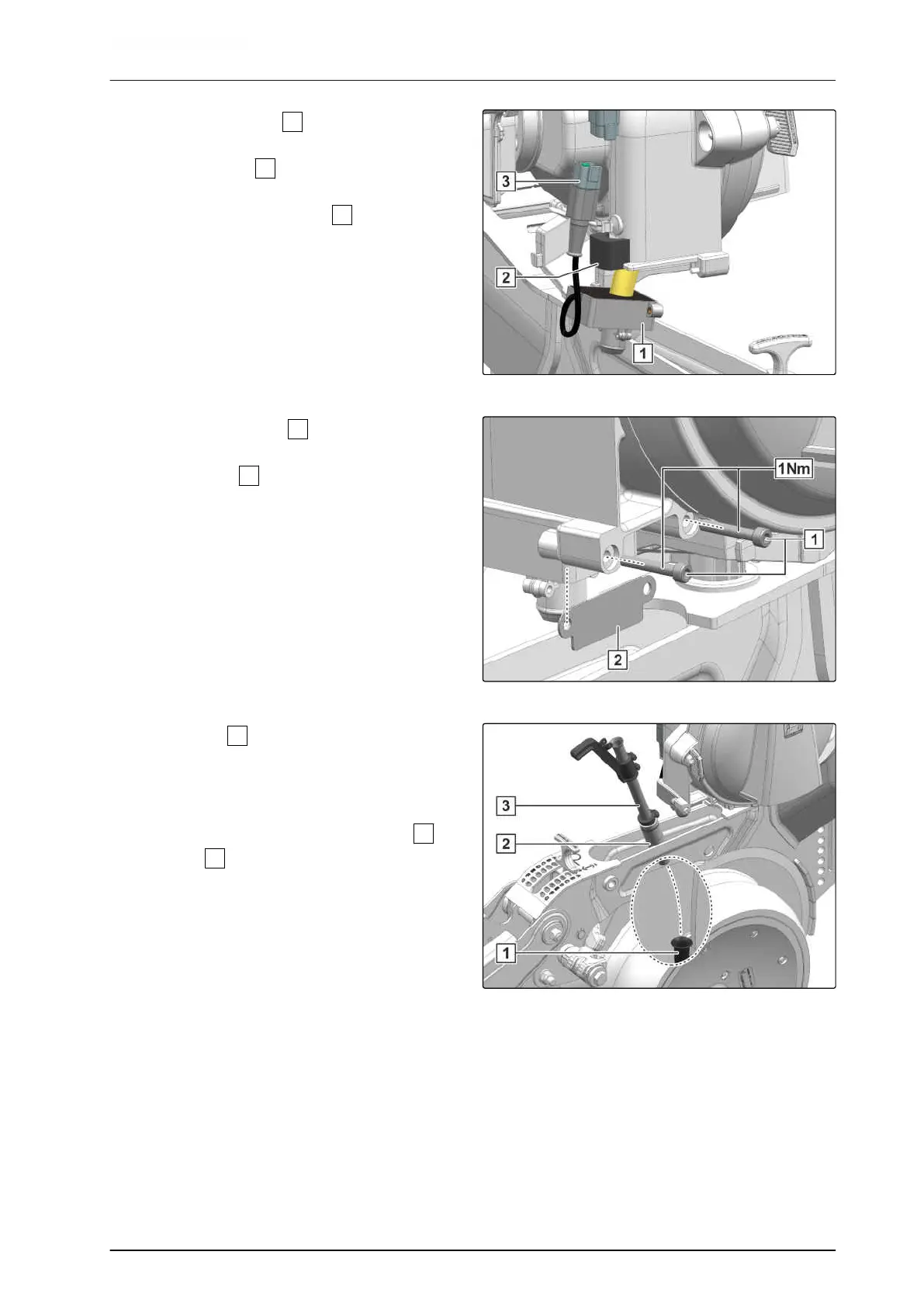

13. Move the opto-sensor
1
up.
14. Put on the gasket
2
.
15. Establish the plug connection
3
.
CMS-I-00003817
16. Install the spacer plate
2
.
17. Install the bolts
1
.
CMS-I-00003818
The shot channel
3
must be changed to fit the seed.
18. To select the shot channel,
see "Determining the setting parameters".
19. Press the shot channel against the gasket
2
in
the funnel
1
.
20. Swivel the shot channel under the opto-sensor.
CMS-I-00003815
