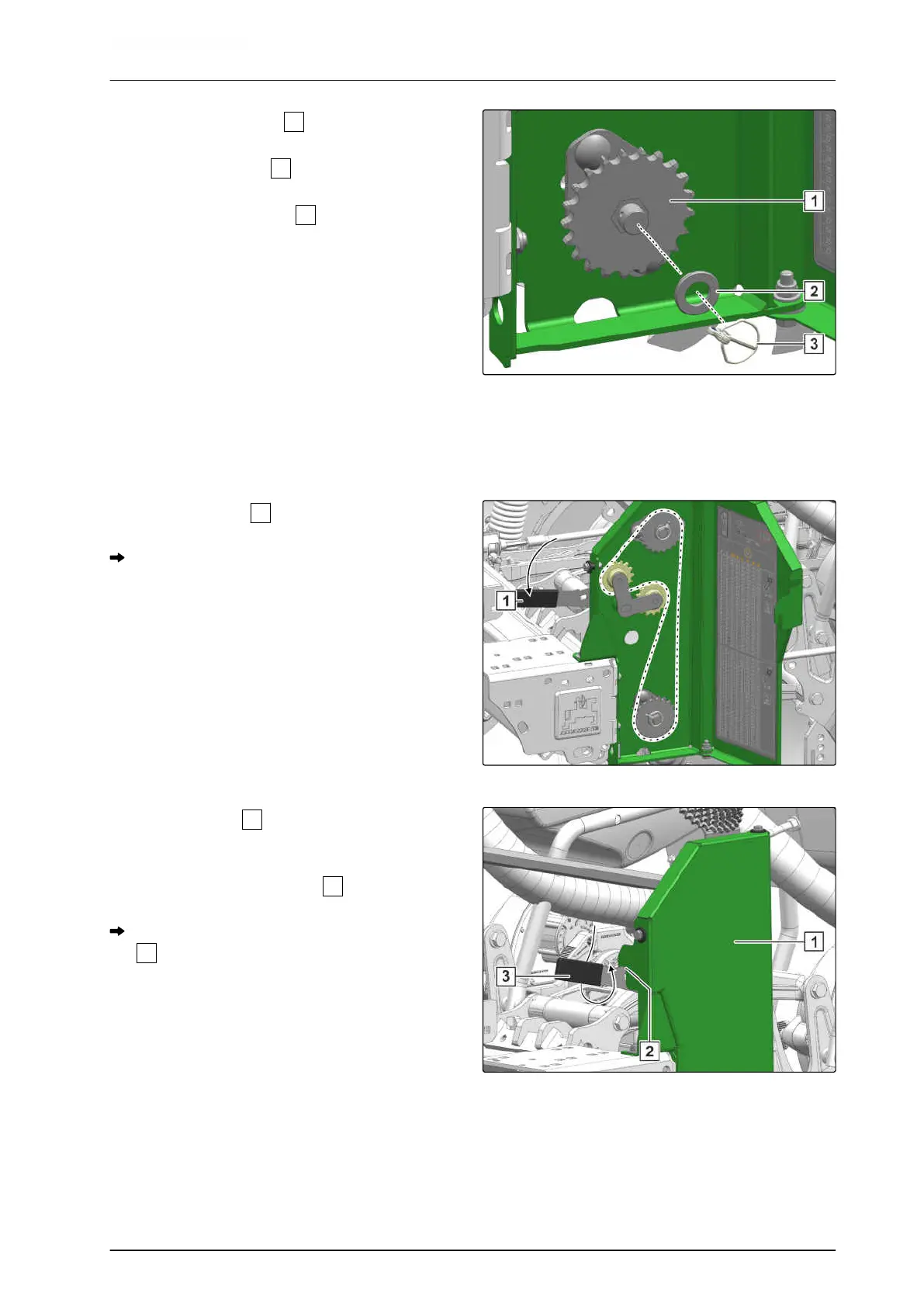

13. Remove the cotter pin
.
14. Remove the washer
.
15. Remove the gear wheel
.
16. Take the desired gear wheel from the parking
position.
17. Put the removed gear wheel in the parking
position.
18. Install the desired gear wheel on the drive shaft.
19. Install the washer.
20. Install the cotter pin.
CMS-I-00002652
21. Actuate the lever
.
The drive chain will be tightened.
22. Hold the lever.
CMS-I-00002651
23. Close the cover
against the spring pressure.
24. To lock the cover,
Continue actuating the lever
.
The cover will be locked on the chain tensioner
.
