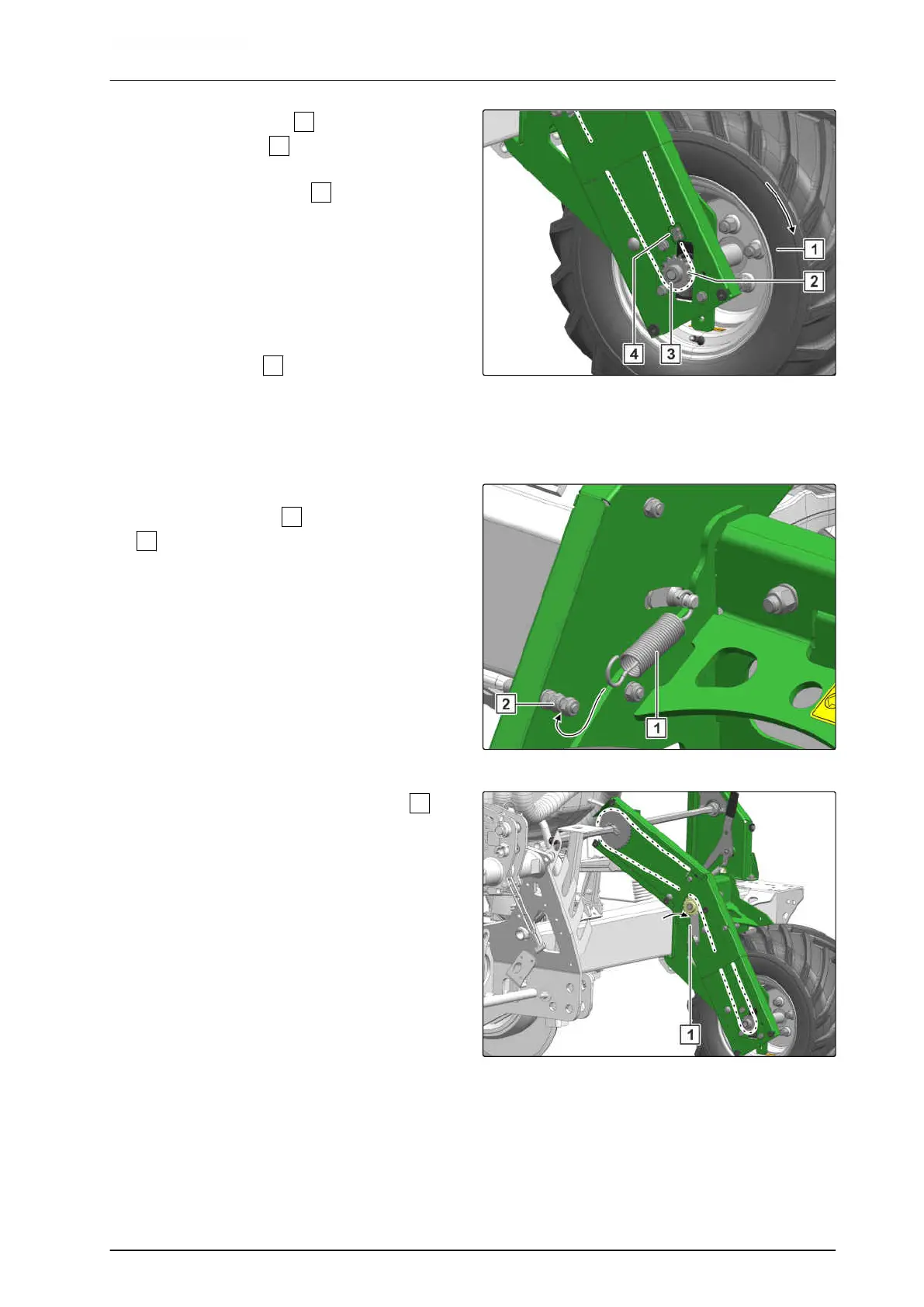

7. To make the chain lock
4
accessible,
turn the drive wheel
1
clockwise.
8. Remove the clamping ring
3
.
9. Remove the gear wheel Z=15.
10. Install the gear wheel Z=30.
11. Install the chain extension.
12. Put the gear wheel
2
in the chain.
13. Install the gear wheel on the drive shaft.
14. Install the clamping ring.
CMS-I-00002657
15. To tighten the drive chain,
put the tension spring
2
around the retaining pin
3
.
CMS-I-00002650
16. To ensure that the tightened drive chain
1
runs on all of the gear wheels,
turn the drive wheel.
CMS-I-00002648
