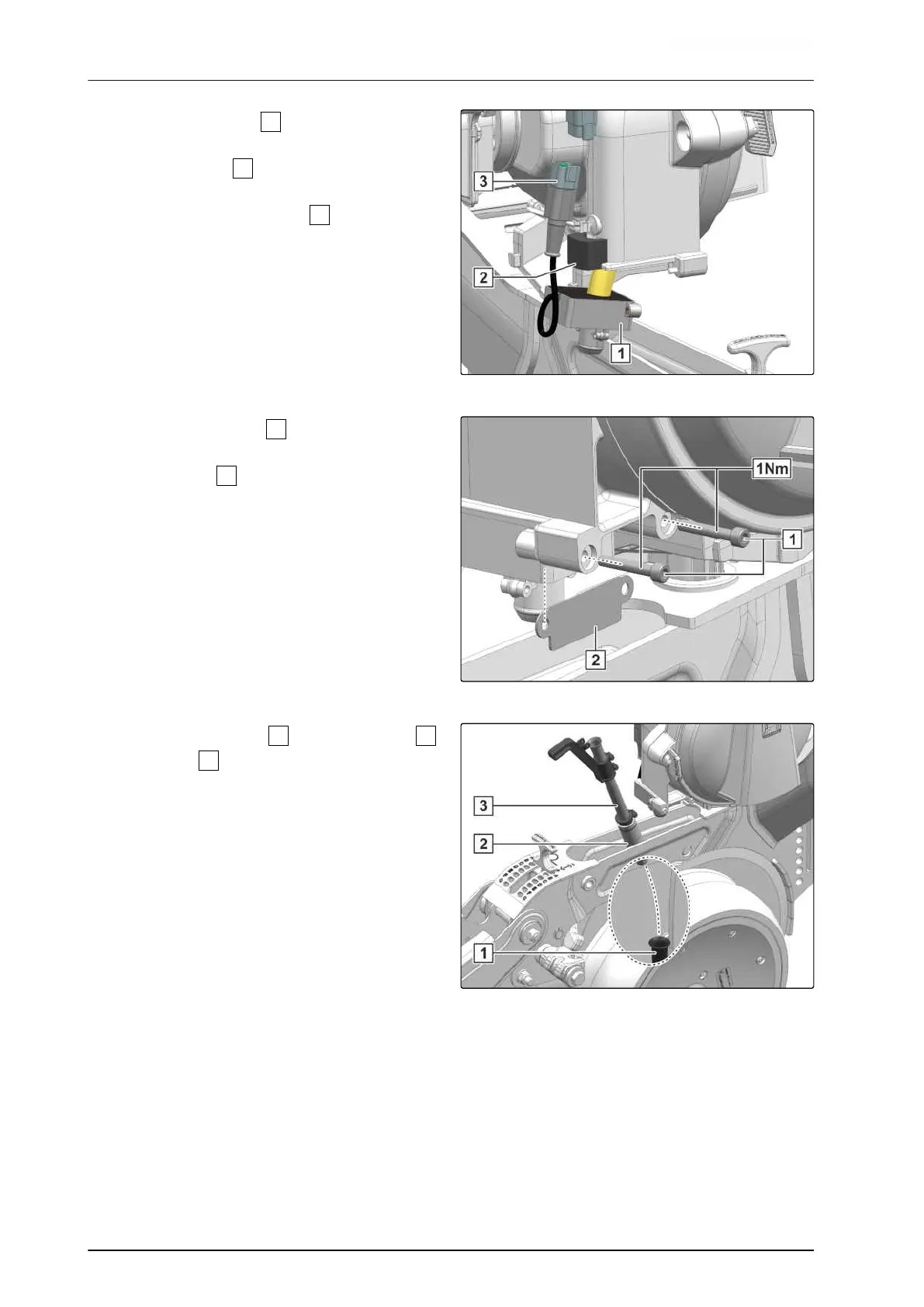

23. Move the opto-sensor

up.

24. Put on the gasket

25. Establish the plug connection

CMS-I-00003817

26. Install the spacer plate

27. Install the bolts

CMS-I-00003818

28. Press the shot channel

against the gasket

in the funnel

29. Swivel the shot channel under the opto-sensor.

CMS-I-00003815

9 | Repairing the machine
