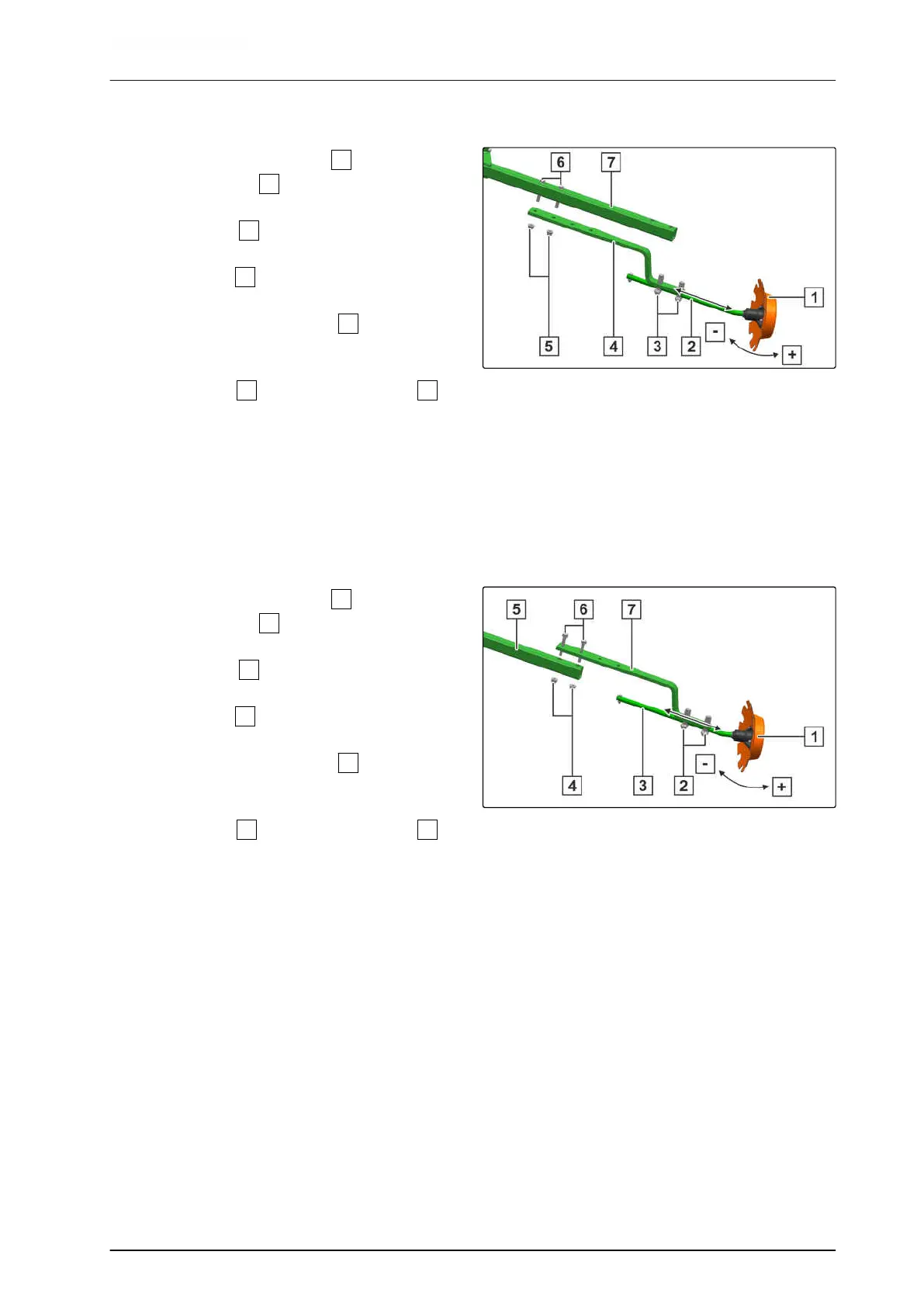

6.4.7.4.4 Adjusting the track marker for 5.60 m working width
1. Move the track marker mount
4
on the
implement section
7
to the desired position.
2. Install the bolts
6
.
3. Install the nuts
5
.
4. Release the clamp connection
3
.
5. To adjust the track marker length,
move the shaft
2
of the track marker disc
1
to
the desired position.
6. To adjust the pitch of the track marker disc,
turn the shaft of the track marker disc to the
desired position.
CMS-I-00003873
6.4.7.4.5 Adjusting the track marker for 6.00 m working width
1. Move the track marker mount
7
on the
implement section
5
to the desired position.
2. Install the bolts
6
.
3. Install the nuts
4
.
4. Release the clamp connection
2
.
5. To adjust the track marker length,
move the shaft
3
of the track marker disc
1
to
the desired position.
6. To adjust the pitch of the track marker disc,
turn the shaft of the track marker disc to the
desired position.
CMS-I-00003874
