DISPLAYING DATA
iKon-L SECTION 6
Page 118

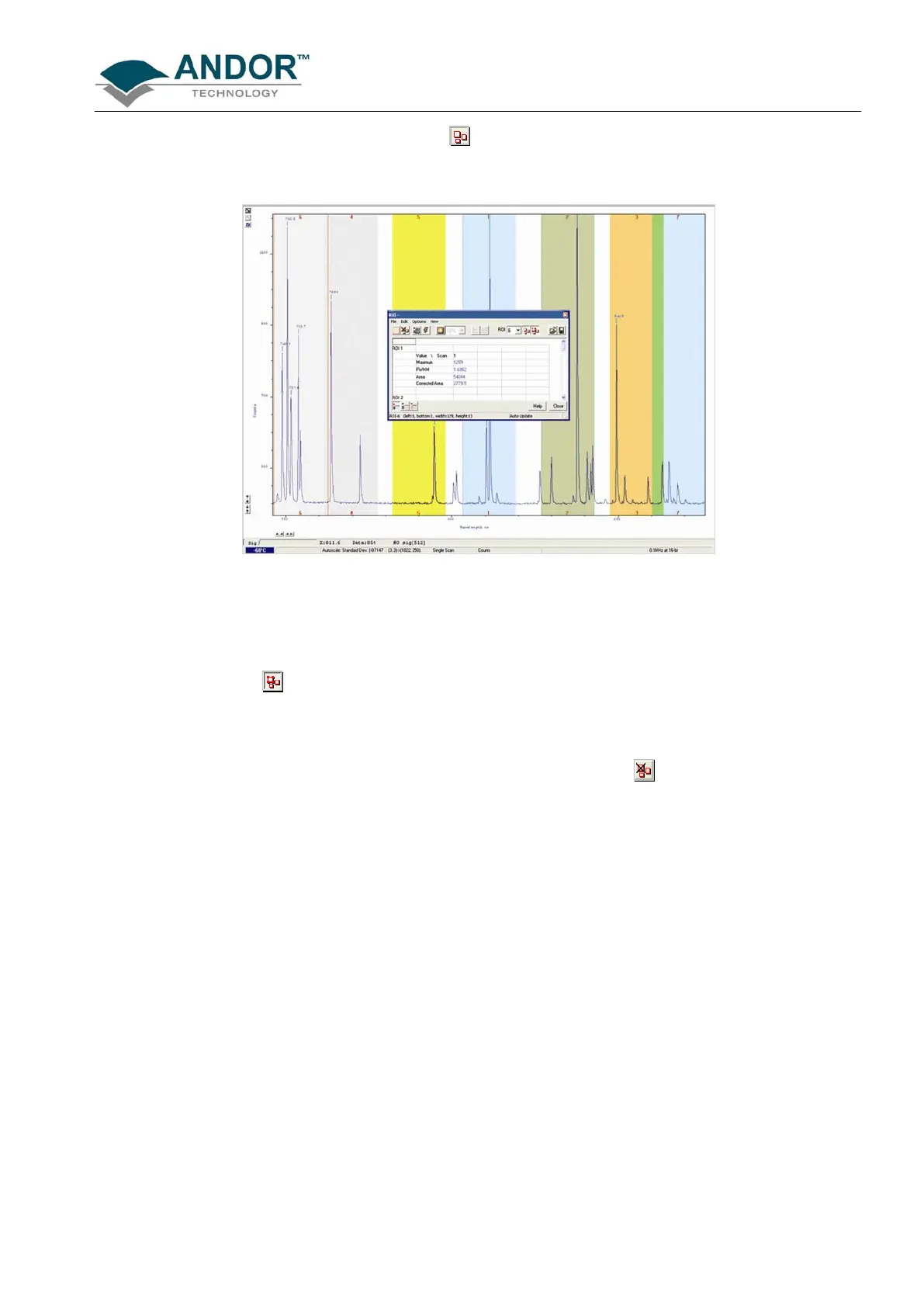

The ROI can be switched on and off by clicking the (Show ROI) button. When Show ROI is selected on, the
selected ROI will be displayed and outlined by red boxes, e.g. for Full Vertical Binning.:
When Show ROI is selected OFF, the red ROI boxes are hidden.
NOTE: When Show ROI is selected ON, it is not possible to position the cross hair cursor on the image
to perform zoom in or zoom out functions.
The Edit ROI function is only available when Show ROI is selected On.
To activate, click on the
(Edit ROI) button. You can then change the size and location of the ROI(s).
NOTE: When the Edit ROI tool is selected OFF, the red ROI boxes are locked and cannot BE altered.
This is useful tool to prevent accidental interference with ROI(s).
The current ROI (including the ROI data set) can be deleted by clicking on the
(Delete current ROI) button.
