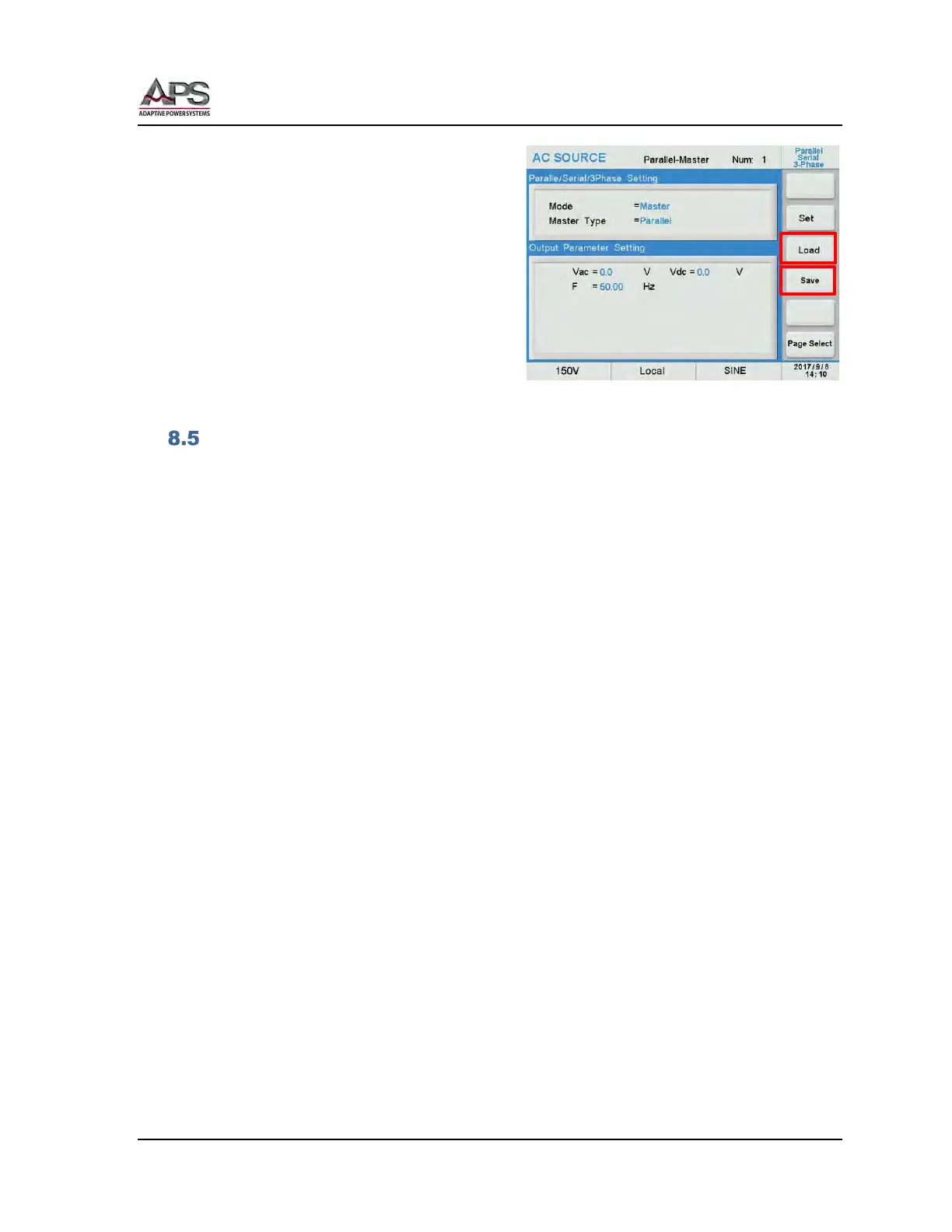

Now press the Load soft key to load and
display the saved settings for this Master
unit.
Finally, press the Save soft key to store the
Master-Slave mode setting to non-volatile
memory. This unit is now ready to for use in
a Master/Slave configuration.
Note: NEVER change the connections and
modes of Master and Slave units
while in multi-unit mode operation
as it could damage one of more
units.
Multi-Unit Modes of Operation
This section shows how two connect two or more CPS100 power sources into a specific
multi-unit configuration.
Note: Make sure each unit used is configured for Master or Slave operation before
interconnecting them.
Note: For configurations consisting of 3 or more units, it is strongly recommended to use 3
phase mains input provided 230V~ Line-to-Neutral (Europe/Asia) or 208V~ Line-to-
Line (US) which different phases feeding one unit. See diagrams on pages 182
through 186 for reference.
