CPS100 SERIES OPERATION MANUAL
SECTION 10:
LAN Interface Configuration
Entire Contents Copyright 2018 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
APS CPS100 Series Power Source Operation Manual Page 200 of 231 PN 160953-10
LAN Web Server Use
When operating the power source over the Ethernet (LAN) interface, the built in web server
can be accessed over the network using any mainstream web browser on PC, tablet or
mobile phone.
The home page (or Welis the first page that will appear when entering the IP address of the
connected power source in the browser address bar. A sample is shown below.

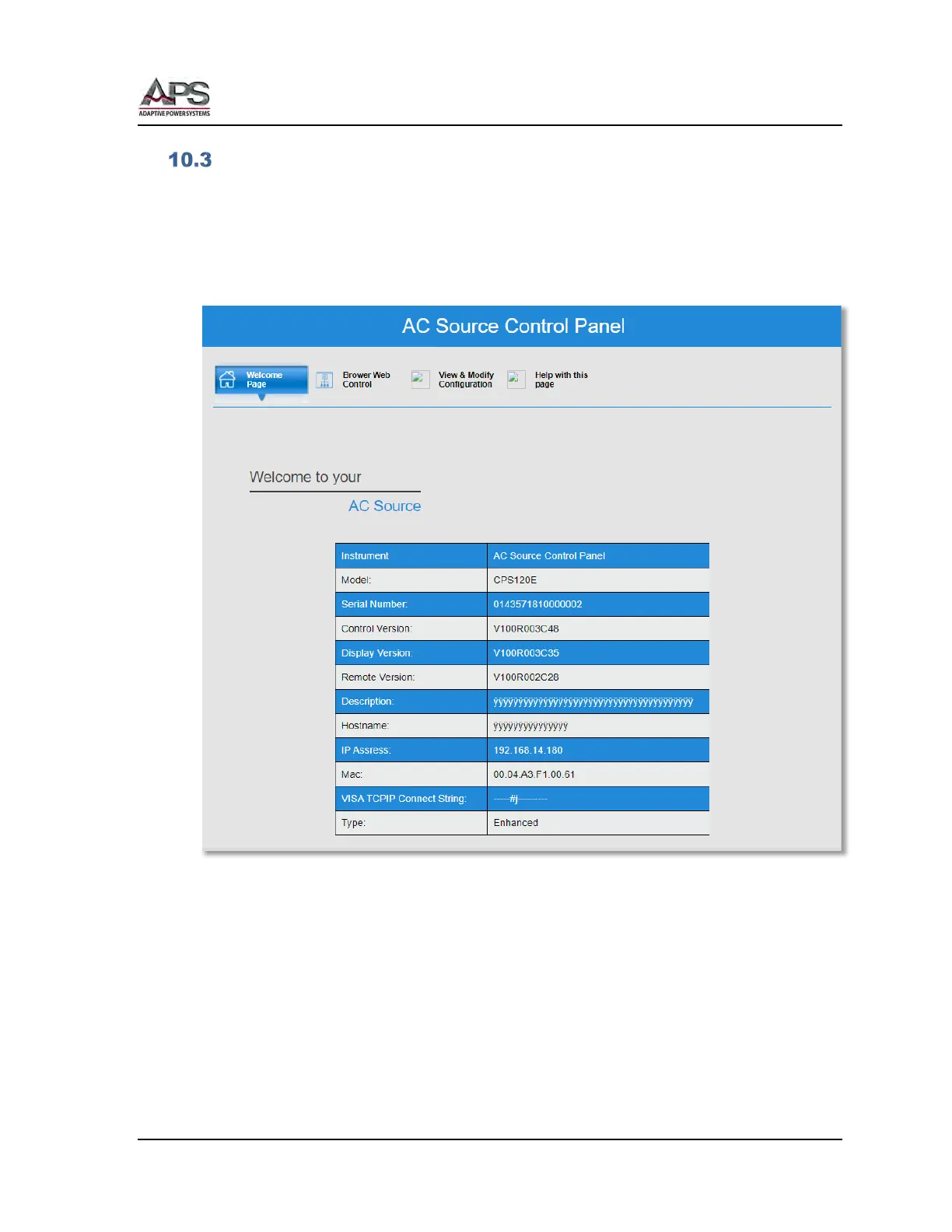

Figure 10-1: CPS100 Series Web server Home Page
The home page is for information display purposes only and has no user accessible fields or
controls. It shows information on model, serial number, firmware versions, IP address set
and MAC address.
