CPS100 SERIES OPERATION MANUAL
SECTION 10:
LAN Interface Configuration
Entire Contents Copyright 2018 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
APS CPS100 Series Power Source Operation Manual Page 204 of 231 PN 160953-10
Note: On some firmware versions, the front panel LCD may not display updated setting for
all parameters.
The longer version can be displayed by pressing the MORE button directly below the output
setting area. See Figure 10-4 below.

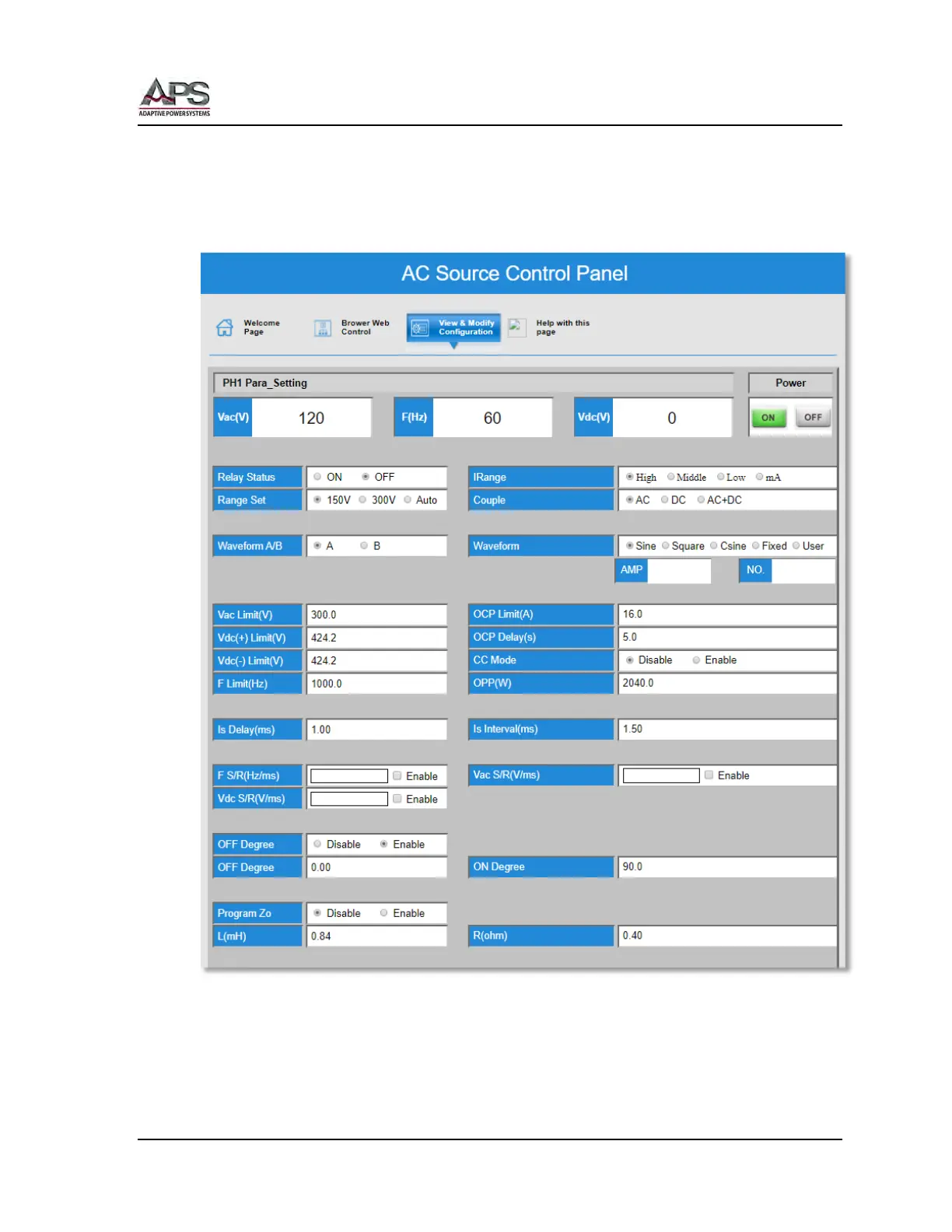

Figure 10-4: View & Modify Page - Long Form
The long form screen allows all other settings the be viewed and changed as needed. This
includes voltage ranges, output modes, waveforms, slew rates, user limits, protection limits,
start and stop phase angles etc.
