Assa Abloy TRAKA32

To Next Page

To Previous Page

V3.5 14/08/19

UD0089

Page 875

This Document is uncontrolled unless over stamped "CONTROLLED DOCUMENT"

Barcode

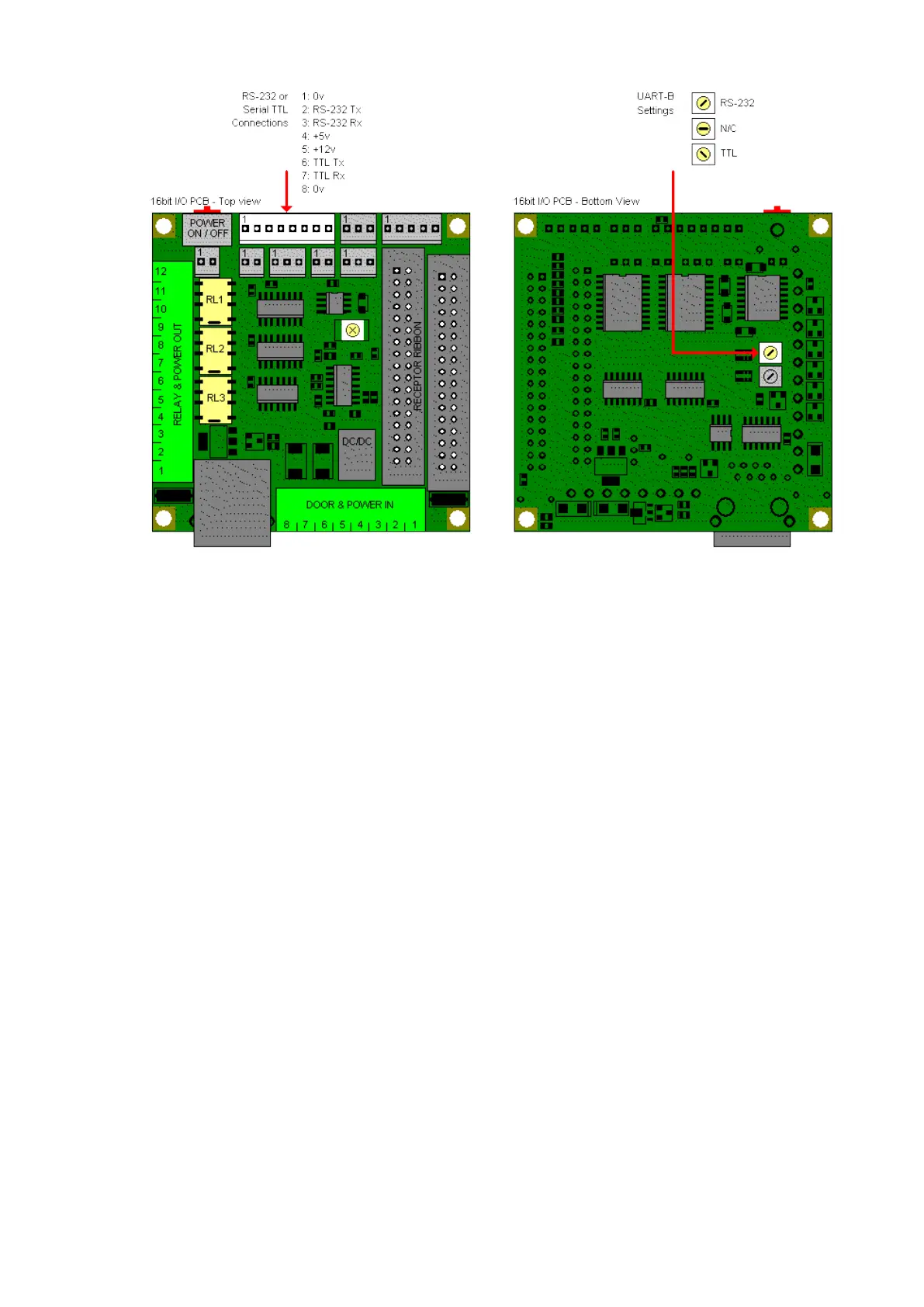

The barcode decoder chip that was fitted to the 8bit Control PCB is no longer used. Traka will use Barcode reader with

either an RS-232 or Wiegand output temporarily to overcome this problem and will look into the firmware required to

accept TTL signals directly from barcode readers and decode them directly.
