5.1.2.6 16BIT I/O PCB ALARM OUTPUTS

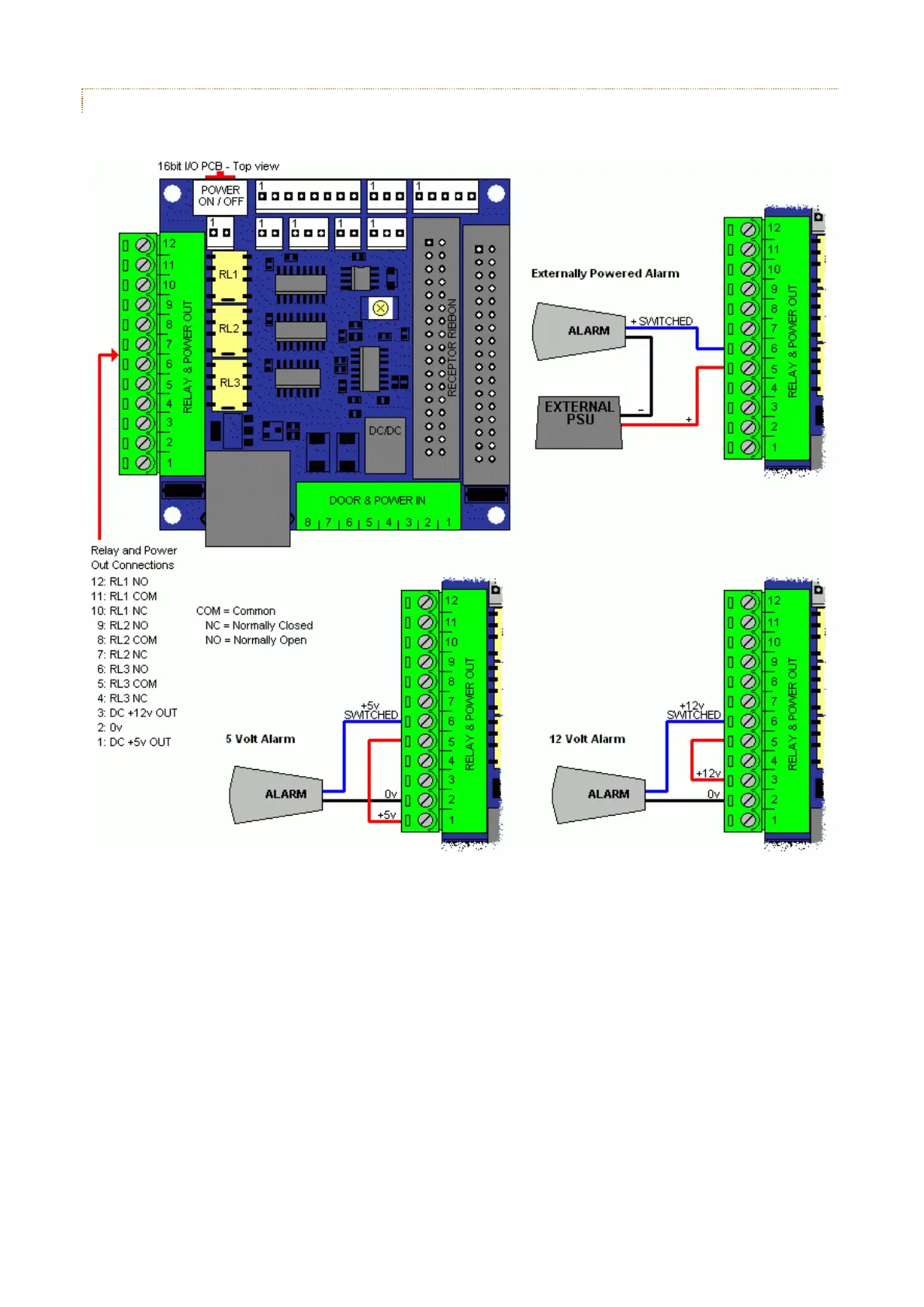

Alarm Relay Connections
NOTE: At no point should mains be wired into the Alarm Relay Output.
Relay Contact Rating
 1A at 30V DC
Power Output
 +5V 1A (Regulated ) or
 When running on mains: +15V 1.7A
When running on battery: +12V 1A
