Traka32 Communications
There may be some wiring differences with the various types of readers.

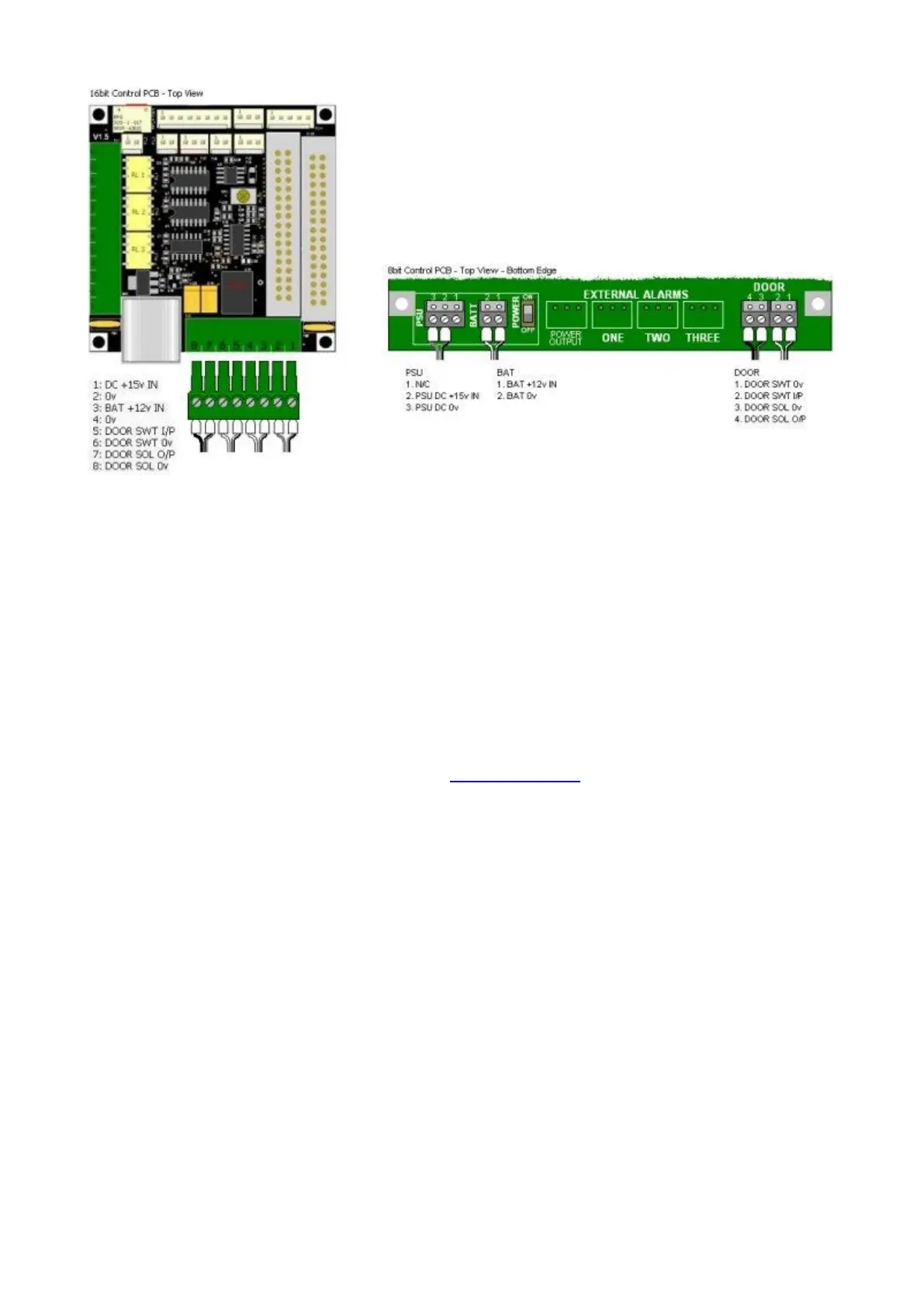

1. RS-232
This connector is also used when connecting to an External Modem or Moxa. To save on space the 16bit
Control PCB does not have a 9 Way D-Sub RS-232 Connector. There is a 3 Way header fitted to the 16bit I/O
PCB that has the standard connections available. An RS-232 Link Cable is supplied to allow connection to D-
Sub RS-232 Connector.
NOTE: When communicating to a 16bit system via RS-232 the Baud Rate in the System Settings in
Traka32 must be set to 38400. Refer to the RS232 Installation section for more details.
2. RS-485
For RS-485, simply connect the provided cables into the RS485 Connection port on the 16bit PCB.
