 To configure an Ethernet Device:
1. Open the Ethernet Device Table page (Configuration tab > VoIP menu > Network >
Ethernet Device Table).

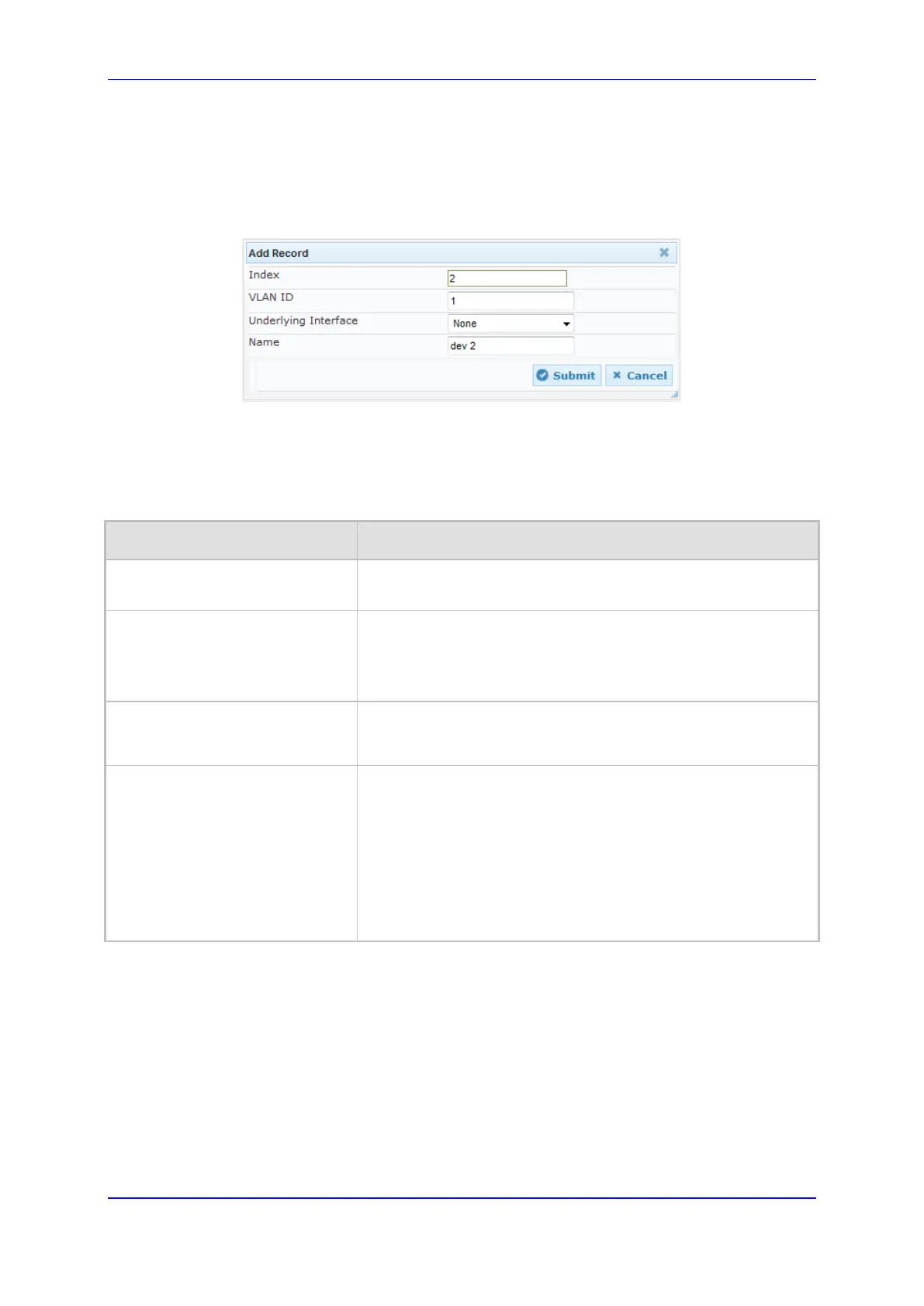

2. Click Add; the following dialog box appears:
3. Configure an Ethernet Device according to the parameters described in the table
below.
4. Click Submit, and then reset the device with a burn-to-flash for your settings to take
effect.
Table 12-3: Ethernet Device Table Parameter Descriptions
Parameter Description
Index
[DeviceTable_Index]
Defines an index number for the new table record.
Note: Each table row must be configured with a unique index.
VLAN ID
CLI: vlan-id
[DeviceTable_VlanID]
Defines a VLAN ID.
The valid value is 1 to 3999. The default value is 1.
Note: Each Ethernet Port Group must be configured with a
unique VLAN ID.
Underlying Interface
CLI: underlying-if
[DeviceTable_UnderlyingInterface]
Assigns an Ethernet Port Group to the VLAN (mandatory field).
For configuring Ethernet Port Groups, see Configuring Ethernet
Port Groups on page 107.
Name
CLI: name
[DeviceTable_DeviceName]
Defines a name for the VLAN. This name is used to associate
the VLAN with an IP network interface in the Interface table
('Underlying Device' field - see ''Configuring IP Network
Interfaces'' on page 112) and/or with a static route in the Static
Route table ('Device Name' field - see ''Configuring Static IP
Routing'' on page 119).
By default, the device automatically assigns a name using the
following syntax: "dev <next available table row index>" (e.g.,
"dev 3").
