12 Network
This section describes the network-related configuration.
12.1 Configuring Physical Ethernet Ports
The Physical Ports Settings table lets you configure the device's Ethernet ports. This
includes port speed and duplex mode, Native VLAN (PVID), and a brief description.
By default, the Ethernet ports are grouped into pairs called Ethernet Groups. However, you
can change this port assignment including assigning only a single port to an Ethernet
Group. For more information and for configuring Ethernet Groups, see 'Configuring
Ethernet Port Groups' on page 107.
The device's management tools (e.g., Web interface) use hard-coded strings to represent
the physical ports, as shown below:

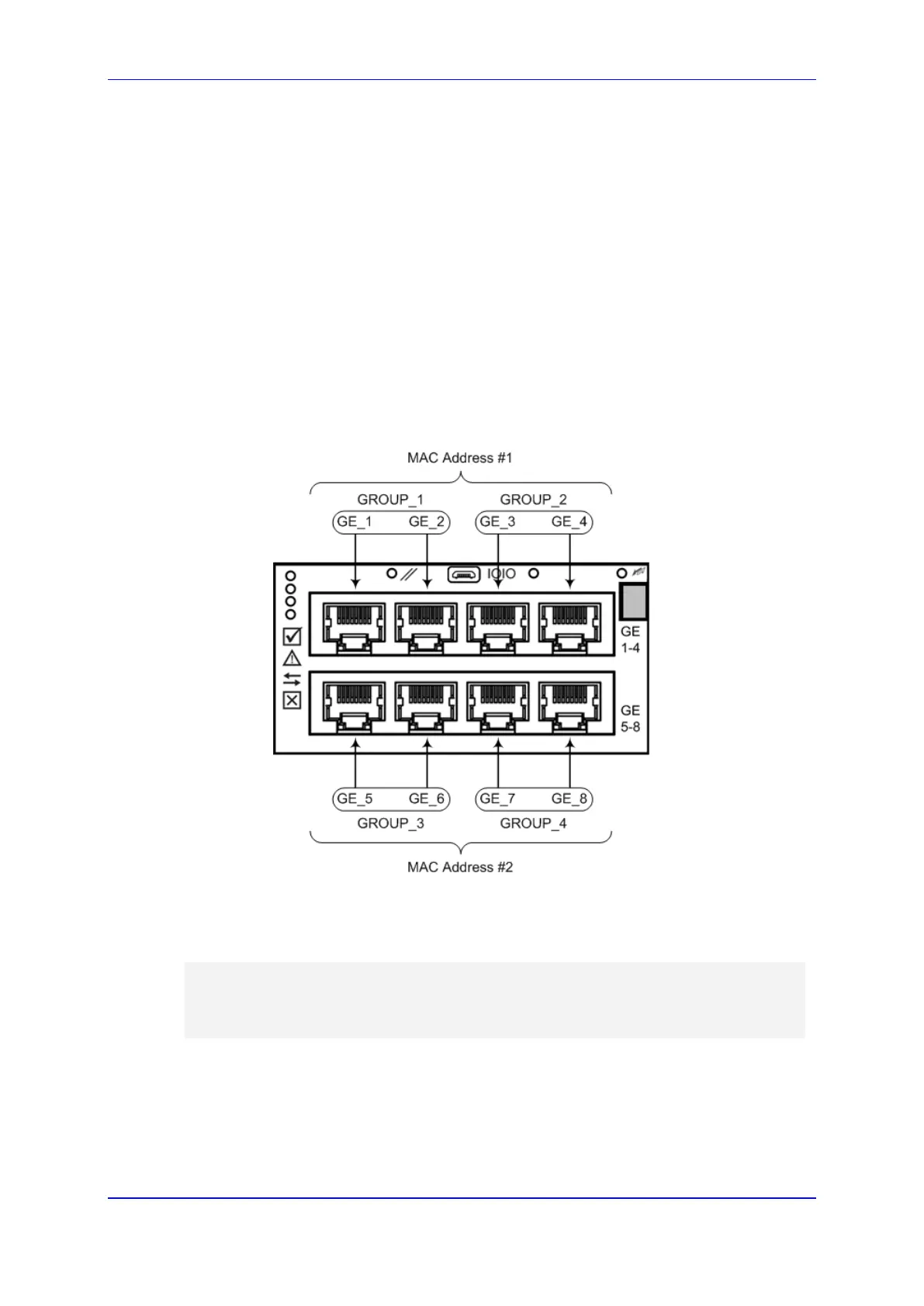

Figure 12-1: Mapping of Logical String Names to Physical Ports
To view the mapping of the physical ports to these logical ports (strings) as well as view
port status, use the CLI command, show voip ports. This displays the MAC address and
port status (up or down) of the physical port and its corresponding logical port. Below
shows an example of the mapping results from running this command:
# show voip ports
Port Num Port Name MAC Address Speed Duplexity Link Status Native VLAN
------- -------- ------------ ----- -------- ---------- ----------
1 GE_1 00:1e:67:11:7c:28 100Mbps FULL UP 1
2 GE_2 00:1e:67:11:7c:29 100Mbps FULL DOWN 1
