15.4.10 LDAP-based Login Authentication Example
To facilitate your understanding on LDAP entry data structure and how to configure the
device to use and obtain information from this LDAP directory, a brief configuration
example is described in this section. The example applies to LDAP-based user login
authentication and authorization (access level), and assumes that you are familiar with
other aspects of LDAP configuration (e.g., LDAP server's address).
The LDAP server's entry data structure schema in the example is as follows:

DN (base path): OU=testMgmt,OU=QA,DC=testqa,DC=local. The DN path to search
for the username in the directory is shown below:

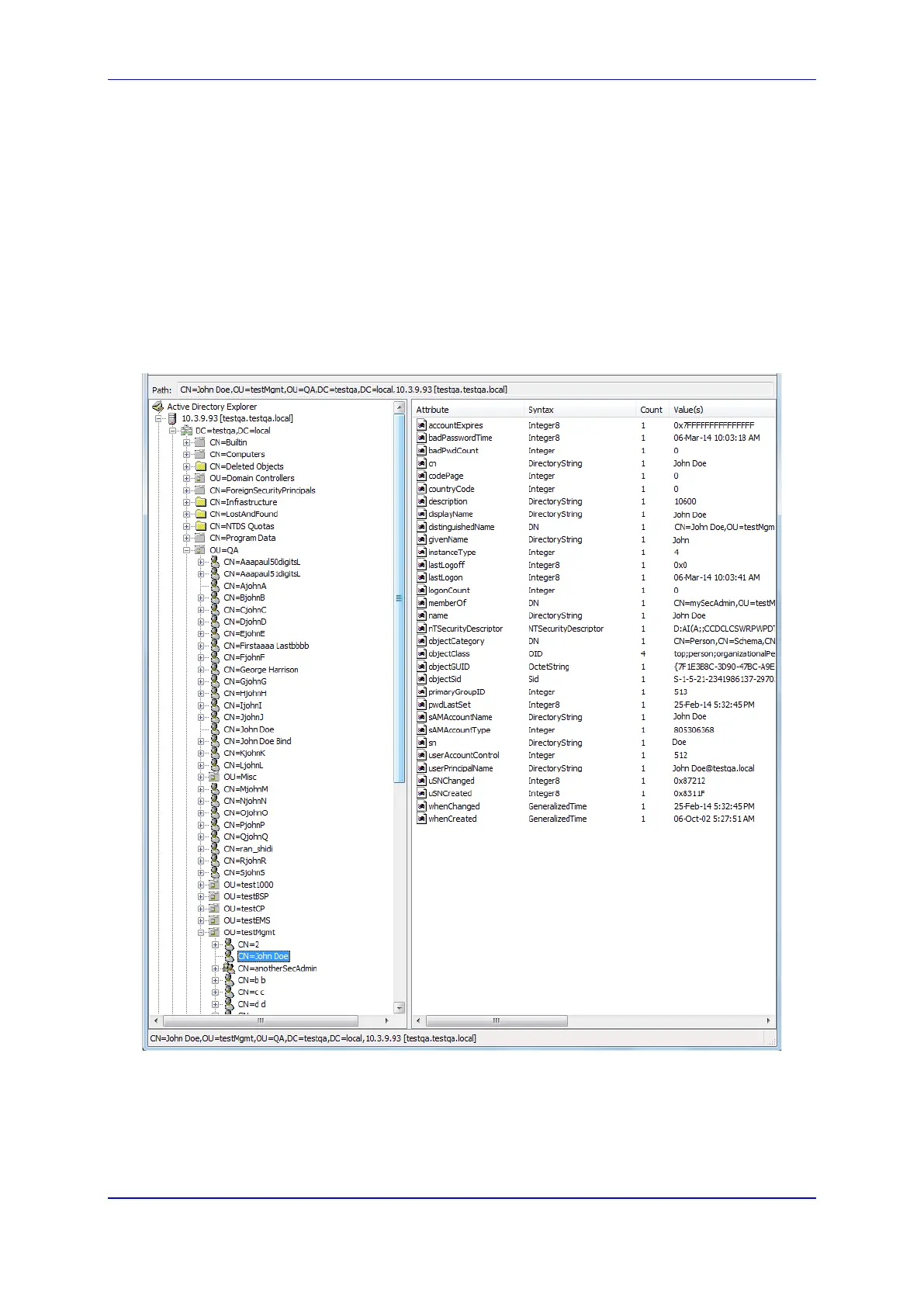

Figure 15-19: Base Path (DN) in LDAP Server
