Control
Manual
1
3 Media &
Control
IPv6
Manual
2000::1:200:200:86:1
4
64 :: 202 V6CntrlMedia
2
2. Static Route table: A routing rule is required to allow remote management from a
host in 176.85.49.0/24:
Table 12-10: Example of Static Route Table
Destination Prefix Length Gateway
176.85.49.0 24 192.168.0.10
3. The NTP application is configured (using the ini file) to serve as OAMP applications:
EnableNTPasOAM = 1
4. DiffServ table:
• Layer-2 QoS values are assigned:
♦ For packets sent with DiffServ value of 46, set VLAN priority to 6
♦ For packets sent with DiffServ value of 40, set VLAN priority to 6
♦ For packets sent with DiffServ value of 26, set VLAN priority to 4
♦ For packets sent with DiffServ value of 10, set VLAN priority to 2
• Layer-3 QoS values are assigned:
♦ For Media Service class, the default DiffServ value is set to 46
♦ For Control Service class, the default DiffServ value is set to 40
♦ For Gold Service class, the default DiffServ value is set to 26
♦ For Bronze Service class, the default DiffServ value is set to 10

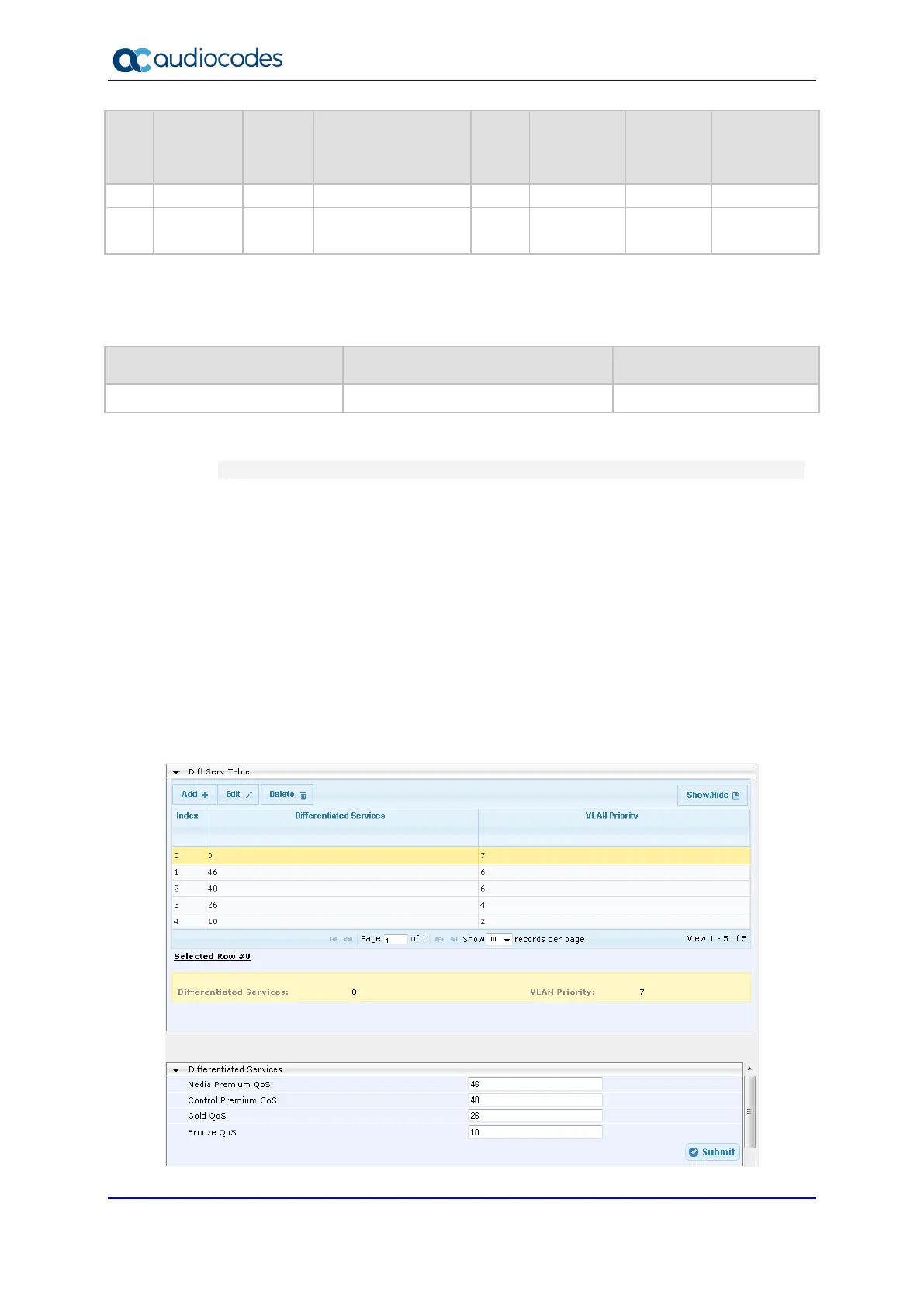

Figure 12-5: Example of Layer-2 QoS in DiffServ Table
