AudioCodes Mediant 2600 - Page 173

Version 6.8 173 Mediant 2600 E-SBC
User's Manual 14. Media
The following procedure describes how to configure AGC using the Web interface:
 To configure AGC using the Web interface:

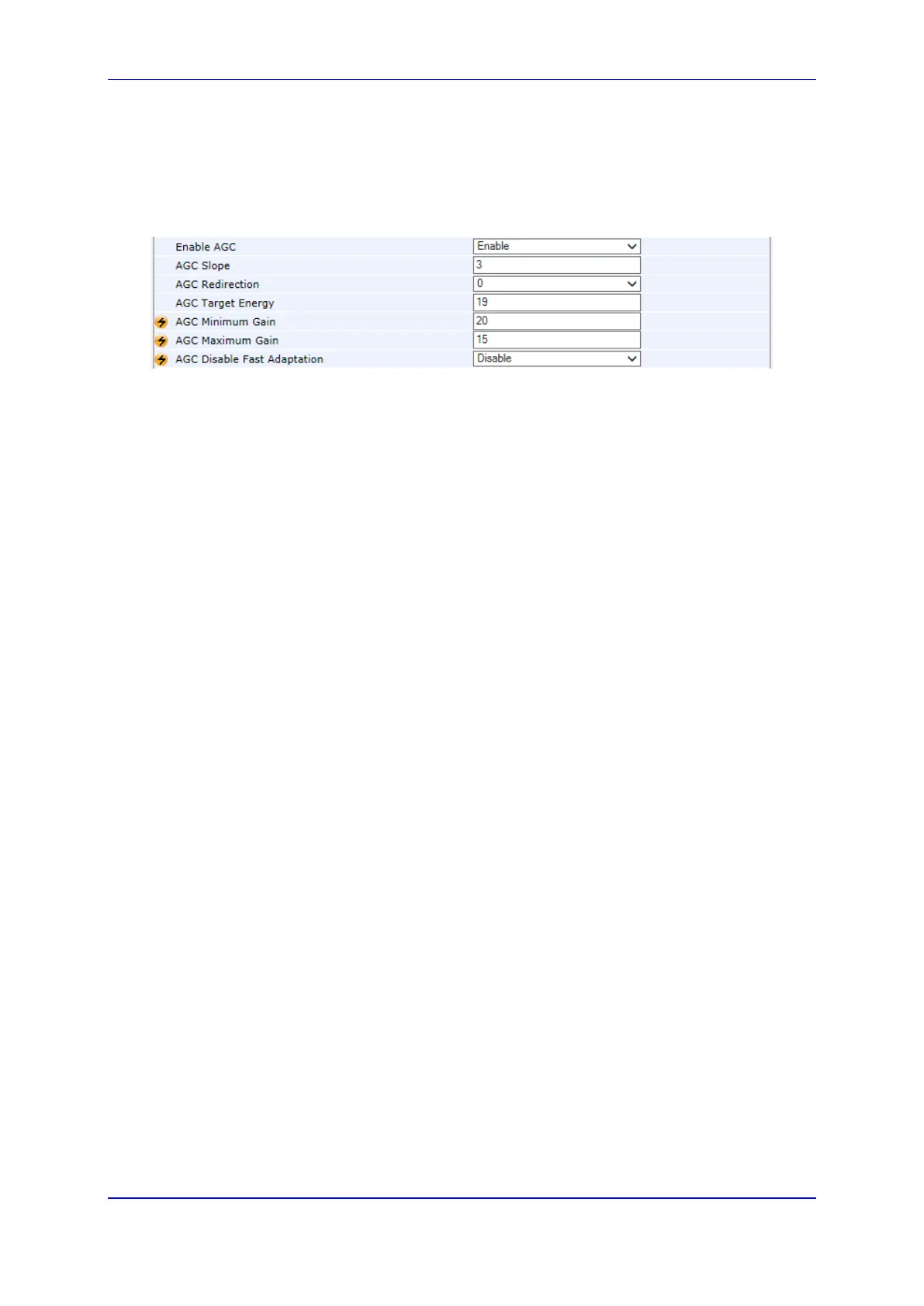

1. Open the IPMedia Settings page (Configuration tab > VoIP menu > Media >
IPMedia Settings). The AGC parameters are shown in the figure below:
2. Configure the following parameters:
• 'Enable AGC' (EnableAGC) - Enables the AGC mechanism.
• 'AGC Slope' (AGCGainSlope) - Determines the AGC convergence rate.
• 'AGC Redirection' (AGCRedirection) - Determines the AGC direction.
• 'AGC Target Energy' - Defines the signal energy value (dBm) that the AGC
attempts to attain.
• 'AGC Minimum Gain' (AGCMinGain) - Defines the minimum gain (in dB) by the
AGC when activated.
• 'AGC Maximum Gain' (AGCMaxGain) - Defines the maximum gain (in dB) by the
AGC when activated.
• 'AGC Disable Fast Adaptation' (AGCDisableFastAdaptation) - Enables the AGC
Fast Adaptation mode.
3. When using AGC with the SBC application, the 'Transcoding Mode'
(TranscodingMode) parameter must be set to Force. This parameter can either be the
global parameter or per IP Profile.
4. Click Submit.
