SIP User's Manual 146 Document #: LTRT-12801
MP-500 MSBG
2. Configure the parameters as required.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, refer to ''Saving Configuration'' on page 237.
3.4.5.3.2 Configuring DTMF and Dialing Parameters
The 'DTMF & Dialing' page is used to configure parameters associated with dual-tone multi-
frequency (DTMF) and dialing. For a description of the parameters appearing on this page,
refer to ''Configuration Parameters Reference'' on page 291.
¾ To configure the DTMF and dialing parameters:
1. Open the 'DTMF & Dialing' page (Configuration tab > Protocol Configuration menu
> Protocol Definition submenu > DTMF & Dialing page item).

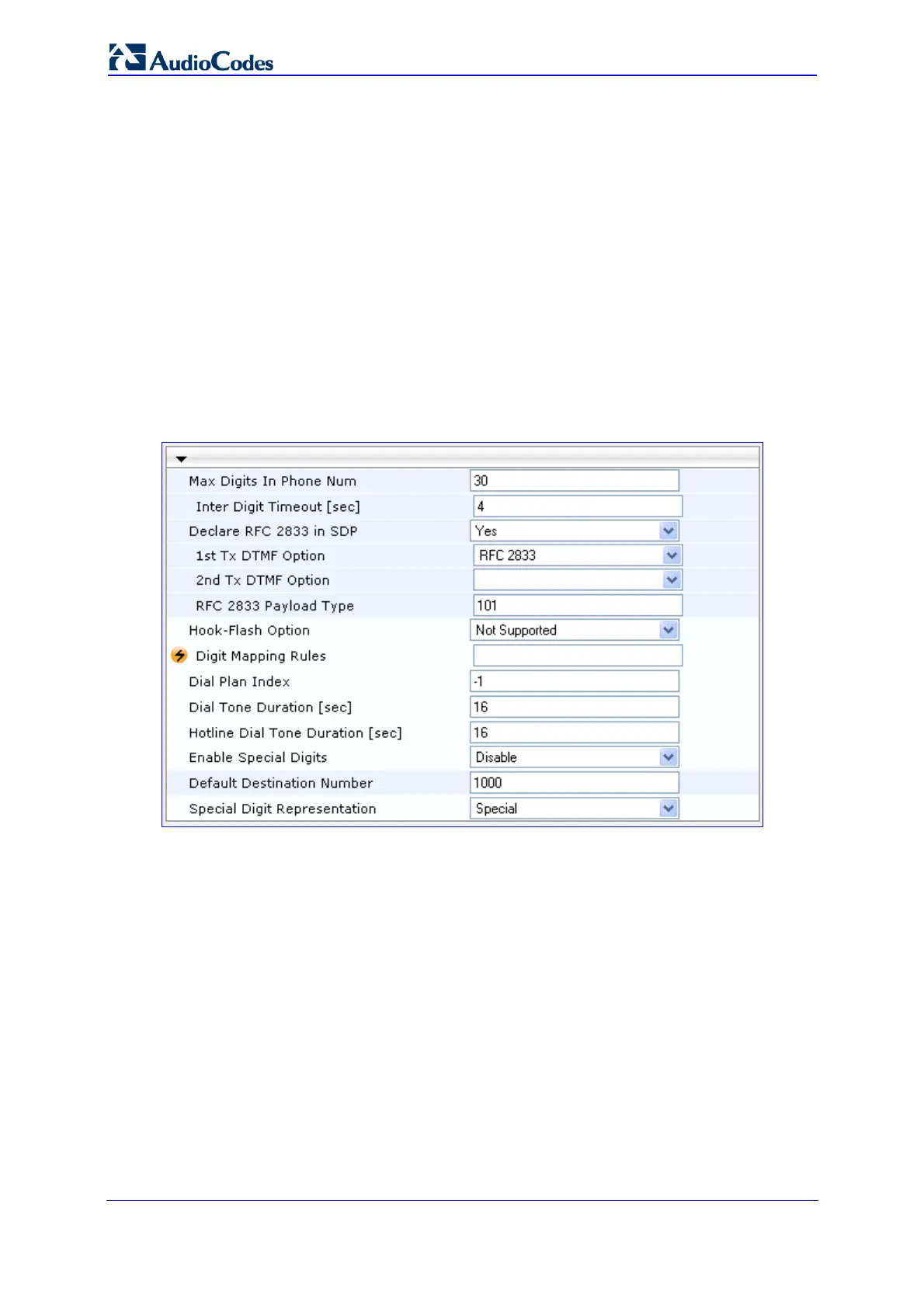

Figure 3-139: DTMF & Dialing Page
2. Configure the parameters as required.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, refer to ''Saving Configuration'' on page 237.
3.4.5.4 Proxies, IP Groups, and Registration
The Proxies/IpGroups/Registration submenu allows you to configure SIP proxy servers,
registration parameters, and IP Groups. This submenu includes the following items:
îš„ Proxy & Registration (refer to ''Configuring Proxy and Registration Parameters'' on
page 147)
îš„ Proxy Sets Table (refer to '
'Configuring the Proxy Sets Table'' on page 148)
îš„ IP Group Ta
ble (refer to ''Configuring the IP Groups'' on page 152)
îš„ Acco
unt Table (refer to ''Configuring the Account Table'' on page 157)
