SIP User's Manual 3. Web-Based Management
Notes:
• For a specific classification rule to be effective, the incoming SIP dialog
message must match the characteristics configured for that rule.
• Incoming REGISTER messages are recorded in the device’s database
and sent to a destination only if they are associated with a source IP
Group that is of USER type.
• The 'Classification' table can also be configured using the ini file table
parameter Classification (refer to ''SBC Parameters'' on page 383).
¾ To configure the Classification table:
1. Open the 'Classification Table' page (Configuration tab > Protocol Configuration
menu > SBC submenu > Classification Table).

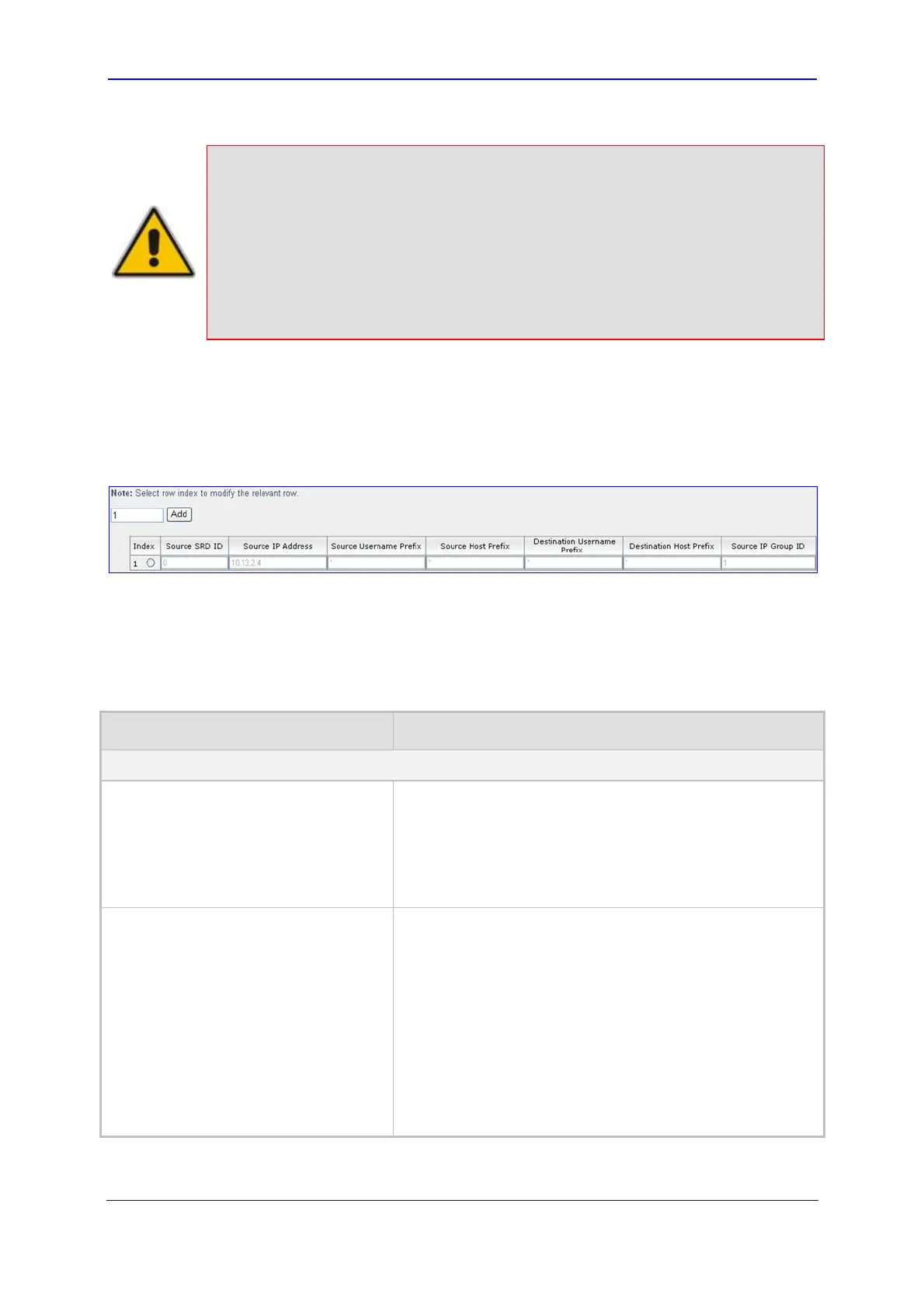

Figure 3-158: Classification Table Page
2. Add an entry and then configure it according to the table below.
3. Click the Apply button to save your changes.
4. To save the changes to flash memory, refer to ''Saving Configuration'' on page 237.
Table 3-20:
Classification Table Parameters
Parameter Description
Matching Characteristics
Source SRD ID
[Classification_SrcSRDID]
The SRD name (configured in the SRD table).
The default is -1.
Note: The source SRD is defined according to the
UDP/TCP/TLS port at which the incoming SIP dialog
request is received. (The 'SIP Interface' table (SIPInterface)
defines the UDP/TCP/TLS ports per SRD.)
Source IP Address
[Classification_SrcAddress]
The source IP address (from where the SIP dialog request
is received).
Notes:
 The IP address can include the letter "x" wildcard to
represent single digits. For example: 10.8.8.xx
represents all the addresses between 10.8.8.10 to
10.8.8.99.
 The IP address can include the asterisk (*) wildcard to
represent any number between 0 and 255. For example,
10.8.8.* represents all addresses between 10.8.8.0 and
10.8.8.255.
