Version 5.8 285 October 2009
SIP User's Manual 5. Element Management System (EMS)
Possible values for AuthProtocol:
• 0 – none
• 1 - MD5
• 2 - SHA-1
Possible values for PrivProtocol:
• 0 – none
• 1 – DES
• 3 - AES128
5. To end the PuTTY configuration session, type a full-stop (“.”) on an empty line; the
device responds with the following:
INI File replaced
6. To save the configuration to the non-volatile memory, type sar; the device reboots with
IPSec enabled.
5.6.2 Configuring EMS to Operate with a Pre-configured SNMPv3
System
The procedure below describes how to configure the device with a pre-configured SNMPv3.
¾ To configure the EMS to operate with a pre-configured SNMPv3 system:
1. In the MG Tree, select the required Region to which the device belongs, and then
right-click the device.
2. From the shortcut menu, choose Details; the 'MG Information' screen appears.

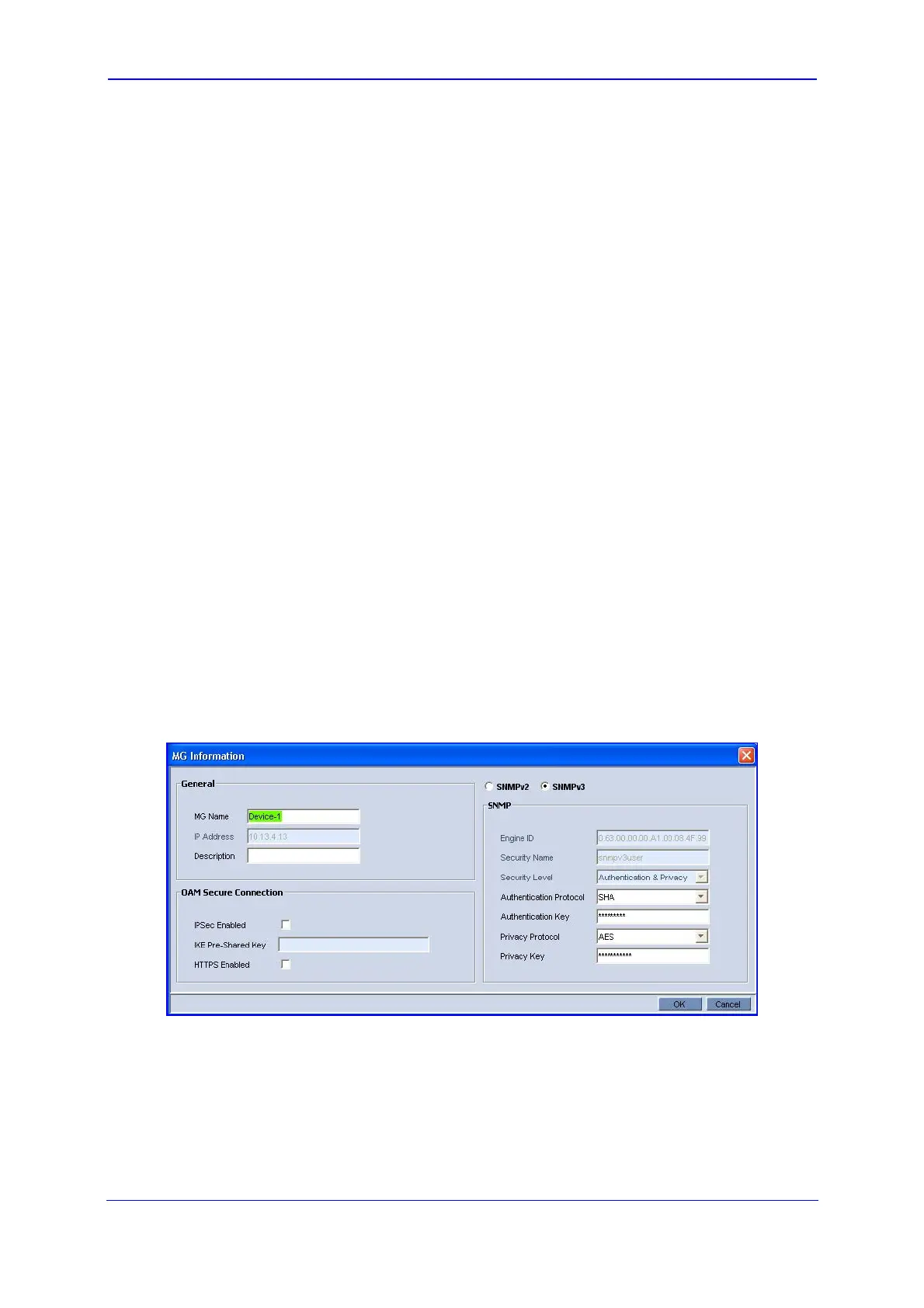

Figure 5-7: MG Information Screen
3. Select the SNMPv3 option, configure the SNMP fields, and then click OK.
4. Open the 'SNMPv3 Users' screen (Network tab > SNMPv3 Users tab).
5. Select the tabs arrow button, and then from the shortcut menu, choose Unit Value; the
'SNMPv3 Users' table is refreshed with the values that you entered in Step 3.
6. Click the Save button; the EMS and the device are now synchronized.
