SIP User's Manual 256 Document #: LTRT-12801
MP-500 MSBG
3.6.2.3 Viewing Firewall Connections
The Firewall Connections item displays all the connections that are currently open, as well
as various details and statistics. You can use this list to close an undesired connection by
clicking its Action icon . The basic display includes the name of the protocol, the different
ports it uses, and the direction in which the connection was initiated.
¾ To view open connections:
1. Click the Firewall Connections item (Status & Diagnostics tab > Data Status menu
> Firewall Connections page item); the following page appears:

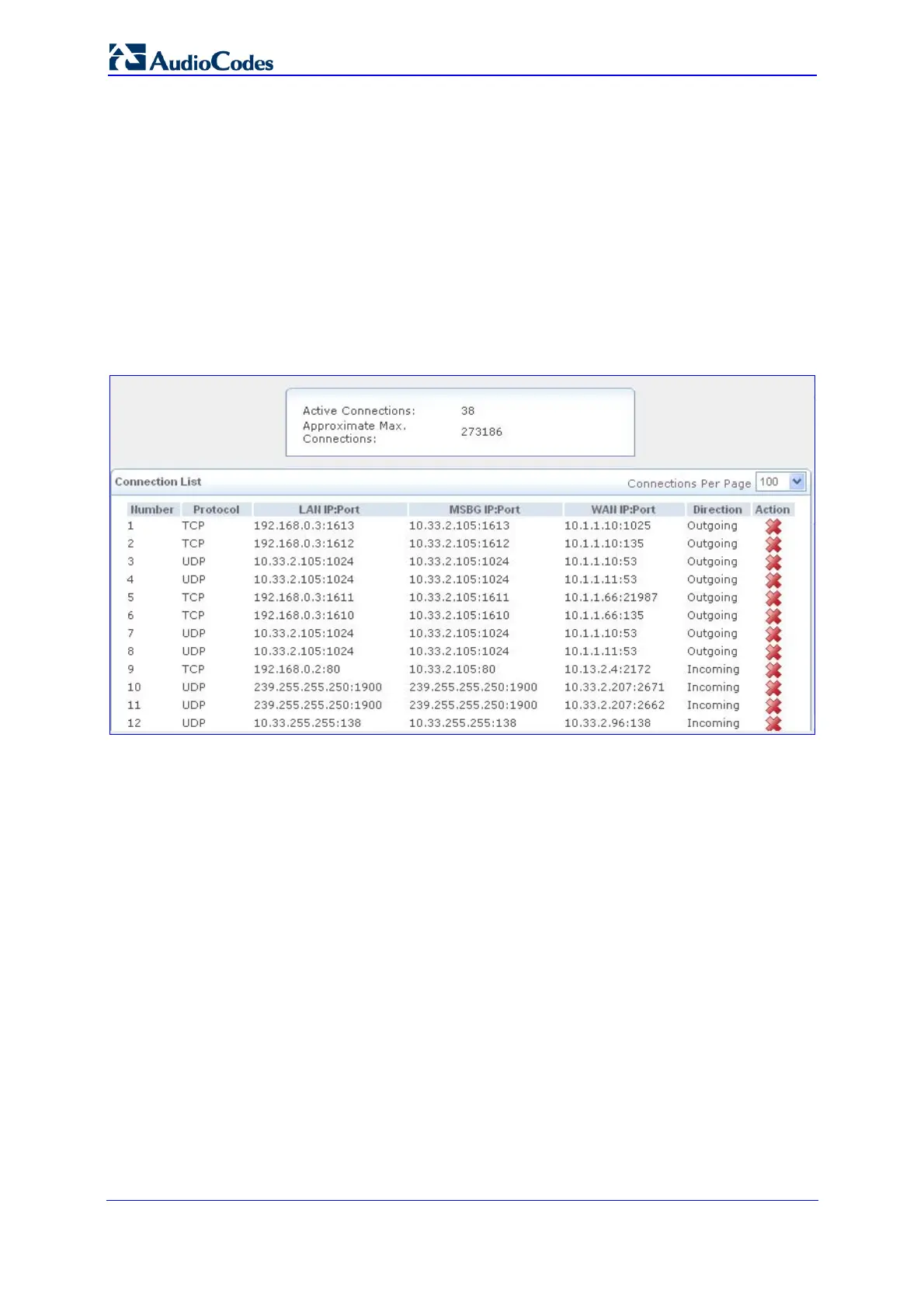

Figure 3-202: Firewall - Connections Page
2. Use the 'Connections Per Page' drop-down list to select the number of connections to
display on the page. The 'Approximate Max. Connections' value represents the
amount of additional concurrent connections possible.
3. Click Advanced to expand the table and display the following additional details:
• The connection's time-to-live
• The number of kilobytes and packets received and transmitted
• The device type
• The routing mode
