Version 5.8 249 October 2009
SIP User's Manual 3. Web-Based Management
3.6.1.3 Viewing Active IP Interfaces
The 'IP Interface Status' page displays the device's active IP interfaces, which are
configured in the 'Multiple Interface Table' page (refer to ''Configuring the Multiple Interface
Table'' on page 58).
¾ To view the 'Active IP Interfaces' page:
îš„ Open the 'IP Interface Status' page (Status & Diagnostics tab > Status &
Diagnostics menu > IP Interface Status page item).

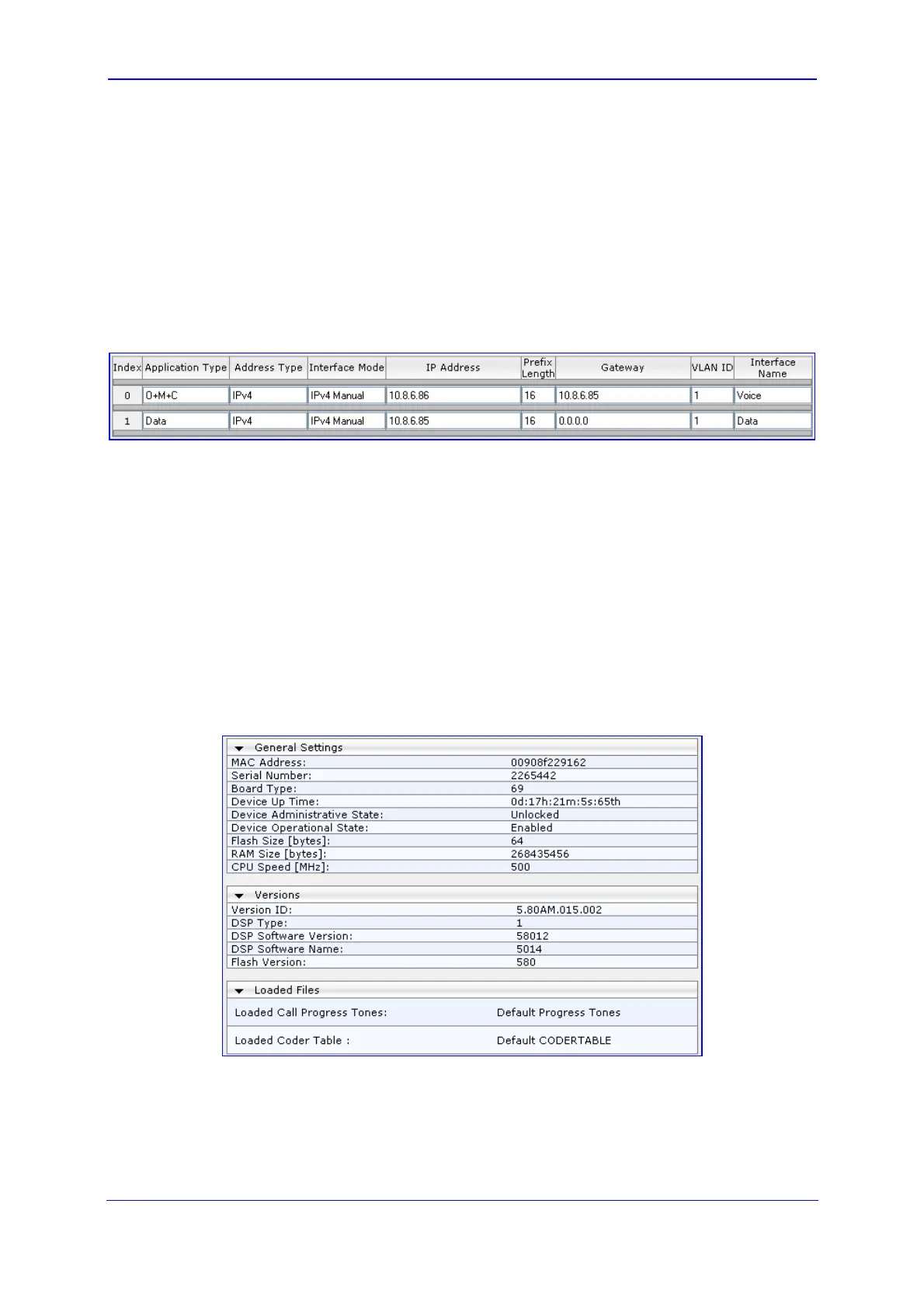

Figure 3-194: IP Interface Status Page
3.6.1.4 Viewing Device Information
The 'Device Information' page displays the device's specific hardware and software product
information. This information can help you expedite troubleshooting. Capture the page and
e-mail it to AudioCodes Technical Support personnel to ensure quick diagnosis and
effective corrective action. This page also displays any loaded files used by the device
(stored in the RAM) and allows you to remove them.
¾ To access the 'Device Information' page:
îš„ Open the 'Device Information' page (Status & Diagnostics tab > Status &
Diagnostics menu > Device Information page item).
Figure 3-195: Device Information Page
The 'Board Type' field number depicts the following device: MP-500 MSBG = 69
¾ To delete a loaded file:
îš„ Click the Delete button corresponding to the file that you want to delete. Deleting a file
takes effect only after device reset (refer to ''Resetting the Device'' on page 235).
