SIP User's Manual 536 Document #: LTRT-12801
MP-500 MSBG
3. In the 'IP Group Table' page (refer to ''Configuring the IP Groups'' on page 152),
configure the two IP Groups #1 and #2. Assign Proxy Sets #1 and #2 to IP Groups #1
and #2 respectively.

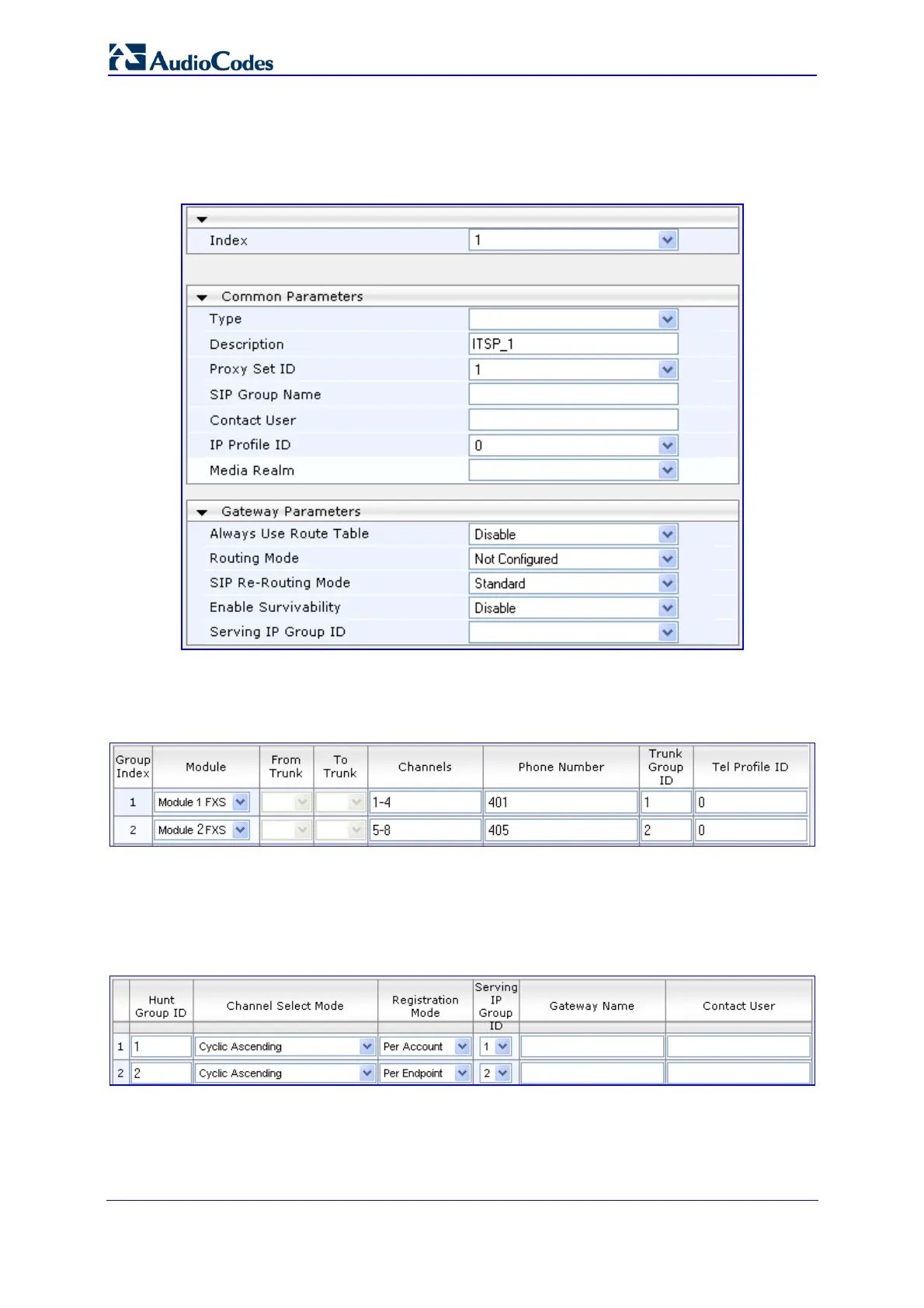

Figure 9-45: Configuring IP Groups #1 and #2 in the IP Group Table Page
4. In the 'Trunk Group Table' page, configure Hunt Group ID #1 for channels 1-4, and
Hunt Group ID #2 for channels 5-8.
Figure 9-46: Assigning Channels to Hunt Groups
5. In the 'Hunt Group Settings' page (refer to ''Configuring the Trunk Group Settings'' on
page 222), configure 'Per
Account' registration for Hunt Group ID #1 and associate it
with IP Group #1; Configure 'Per Endpoint' registration for Hunt Group ID #2 and
associated it with IP Group #2.
Figure 9-47: Configuring Registration Mode for Hunt Groups and Assigning to IP Group
6. In the 'Authentication' page (refer to Configuring Authentication on page 212), for
cha
nnels 5-8 (i.e., Hunt Group ID #2), define for each channel the registration
(authentication) user name and password.
