Version 5.8 57 October 2009
SIP User's Manual 3. Web-Based Management
3.3.3 Viewing Analog Port Information
The 'Home' page allows you to view detailed information on a specific FXS or FXO analog
port such as RTP/RTCP and voice settings.
¾ To view detailed port information:
1. Click the port for which you want to view port settings; the shortcut menu appears.

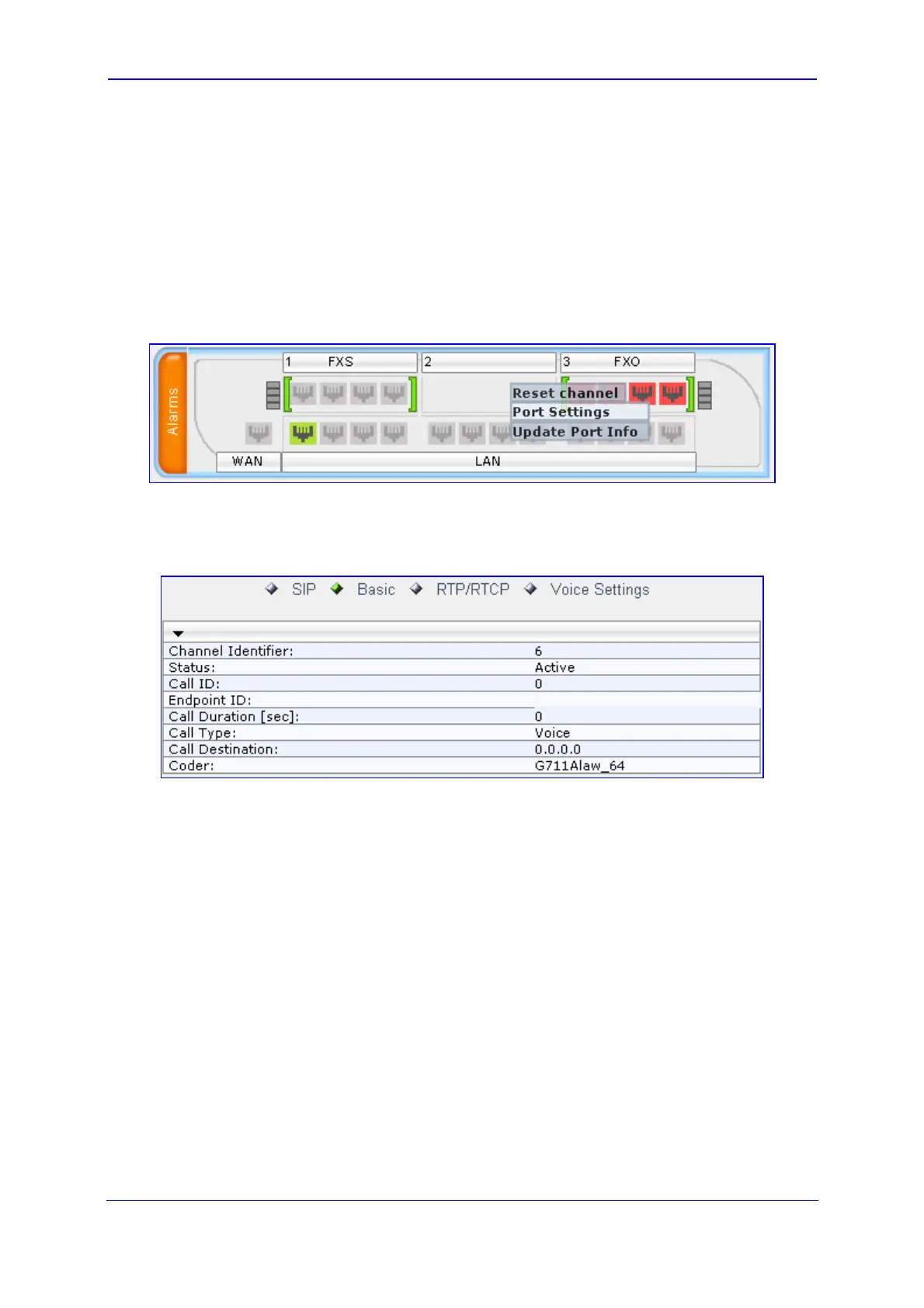

Figure 3-32: Shortcut Menu
2. From the shortcut menu, click Port Settings; the 'Basic Channel Information' screen
appears.
Figure 3-33: Basic Information Screen
3. To view RTP/RTCP or voice settings, click the relevant button.
