Version 5.8 201 October 2009
SIP User's Manual 3. Web-Based Management
3.4.5.10.1 Configuring General Routing Parameters

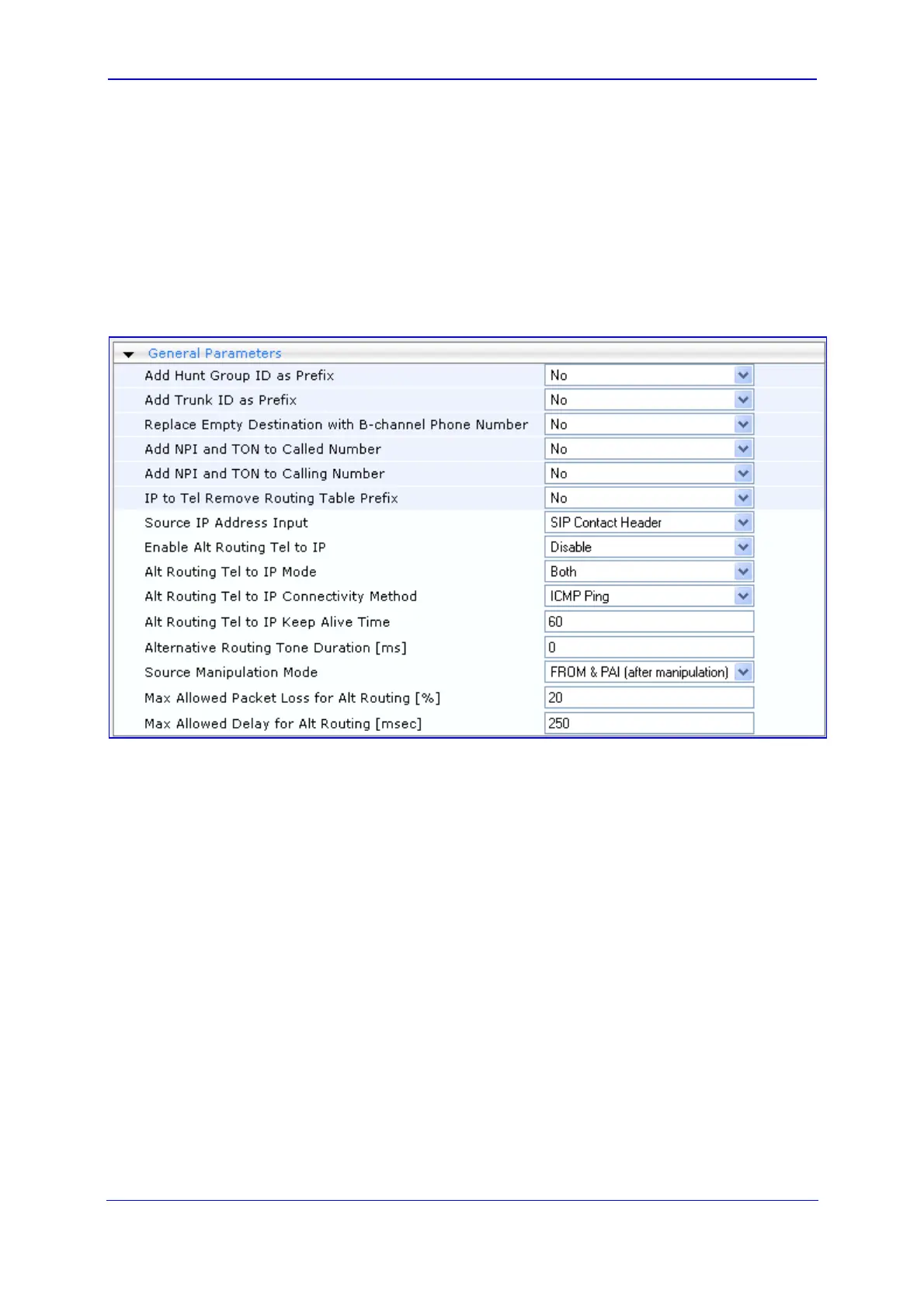

The 'Routing General Parameters' page allows you to configure the general routing
parameters. For a description of these parameters, refer to ''Configuration Parameters
Reference'' on page 291.
¾ To configure the general routing parameters:
1. Open the 'Routing General Parameters' page (Configuration tab > Protocol
Configuration menu > Routing Tables submenu > Routing General Parameters
page item).
2. Configure the parameters as required.
3. Click the Submit button to save your changes.
4. To save the changes to flash memory, refer to ''Saving Configuration'' on page 237.
3.4.5.10.2 Configuring the Tel to IP Routing Table
The 'Tel to IP Routing' page provides a table for configuring up to 180 Tel-to-IP call routing
rules. These rules route Tel calls to destinations based on IP address (or FQDN).
This routing table associates called and/or calling telephone number prefixes (originating
from a specific Hunt Group), with a destination IP address (or Fully Qualified Domain Name
- FQDN) or IP Group. When a call is routed by the device (i.e., a Proxy server isn't used),
the called and calling numbers are compared to the list of prefixes in this table. Calls that
match these prefixes are sent to the corresponding IP address. If the number dialed does
not match these prefixes, the call is not made.
When using a Proxy server, you do not need to configure this table unless you require one
of the following:
îš„ Fallback routing when communication with Proxy servers is lost.
îš„ Implement the 'Filter Calls to IP' and 'IP Security' features.
