Version 5.8 557 October 2009
SIP User's Manual 10. Networking Capabilities
10.6.2.2.3 Gateway Column
The Gateway column defines the IP Address of the next hop used for traffic, destined to the
subnet, as specified by the destination/mask columns. This gateway address must be on
one of the subnets on which the address is configured in the Multiple Interface table.
10.6.2.2.4 Interface Column

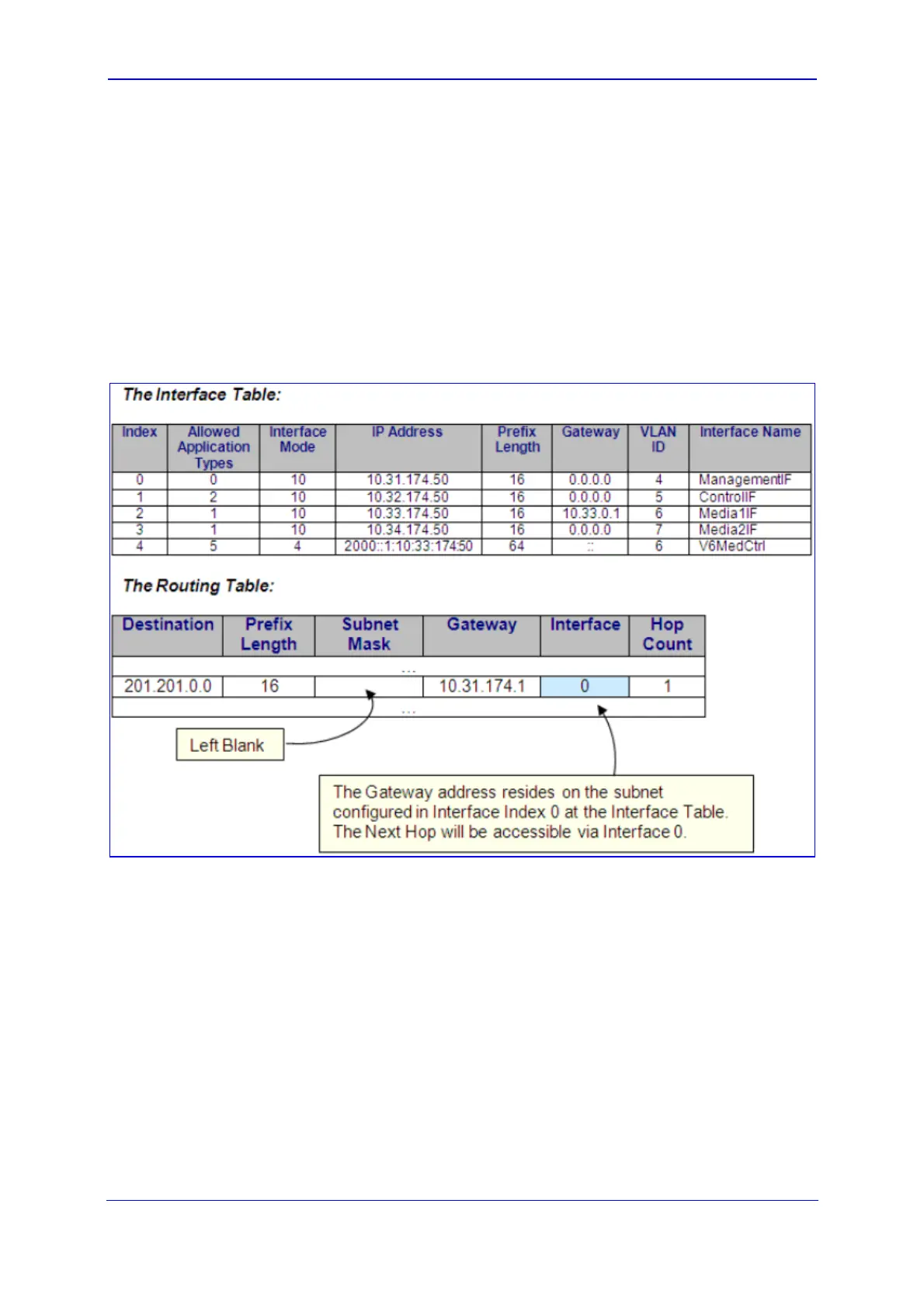

This column defines the interface index (in the Multiple Interface table) from which the
gateway address is reached.
Equation 1: Interface Column
10.6.2.2.5 Metric Column
The Metric column must be set to 1 for each routing rule.
