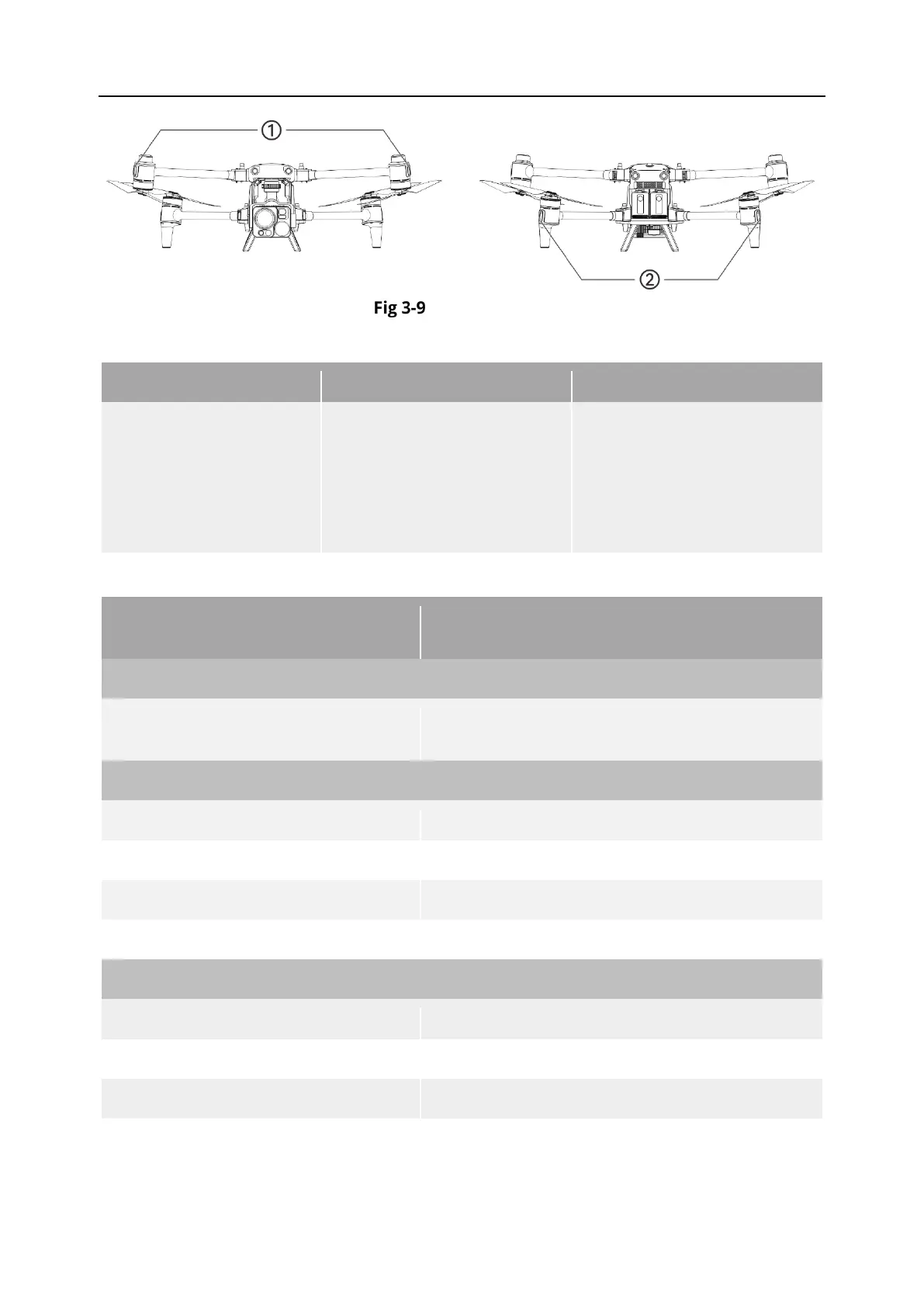

44 Chapter 3 Aircraft
Arm Light
Table 3-6 Arm Light Details
Mode
Front Arm Light
Rear Arm Light
GNSS Mode
ATTI Mode
During flight, the front arm
lights will blink green
periodically following a
pattern of (1s on/1s off) to
help identify the nose
direction.
During flight, the rear arm
lights will blink alternately in a
cycle of (green light on for 1s /
red light on for 1s) to help
identify the tail direction.
Table 3-7 Rear Arm Light Status Details
Indicator status
(R: red G: green Y: yellow)
Definition
Normal
R– Ultra-fast Blinking /Fast Blinking
→
Y- Fast Blinking
System Self-Test
Compass/IMU Calibration
Y– Slow Blinking
Start Calibration
G– Slow Blinking
Current Step Calibration Successful
G– Always On
Calibration Successful
R– Always On
Calibration Failed
Warning
Y– Fast Blinking
Remote Controller Not Connected to Aircraft
R– Slow Blinking
Low Battery Warning/ Illegal Battery
R– Fast Blinking
Critical Low Battery Warning
R– Always On
IMU Abnormal
