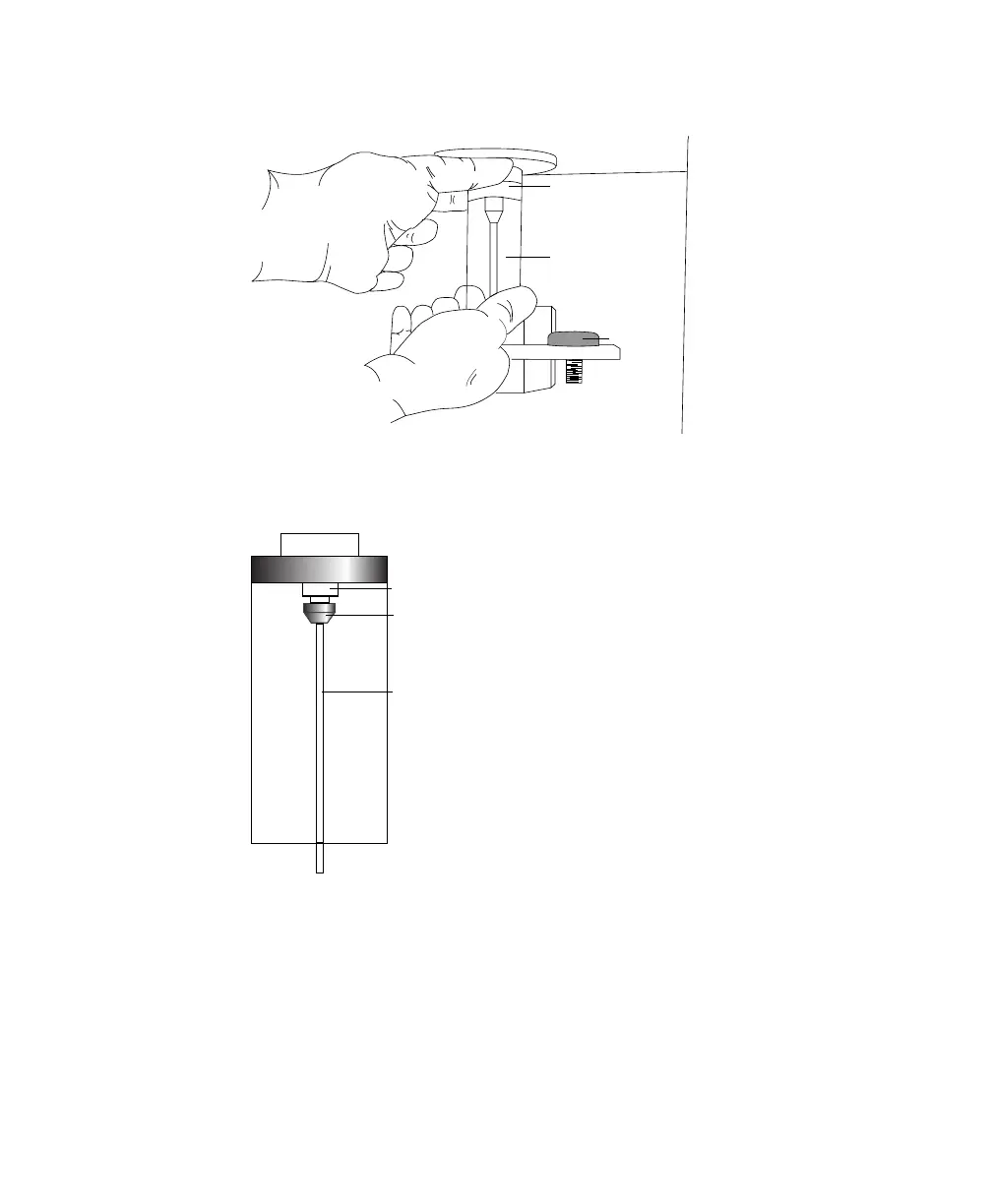

Figure 8-5 Removing tube guide retainer
3 Remove the outer droplet sleeve from the SIT by turning the SIP retainer
counterclockwise.
; Tip Hold the sleeve as you turn the retainer. The outer sleeve might fall
out as the retainer is loosened.
4 Remove the flat red or white Loader seal.
tube guide retainer
tube guide
tube stop
SIP retainer
outer droplet sleeve
Loader seal
