Chapter 3: Starting Up 59

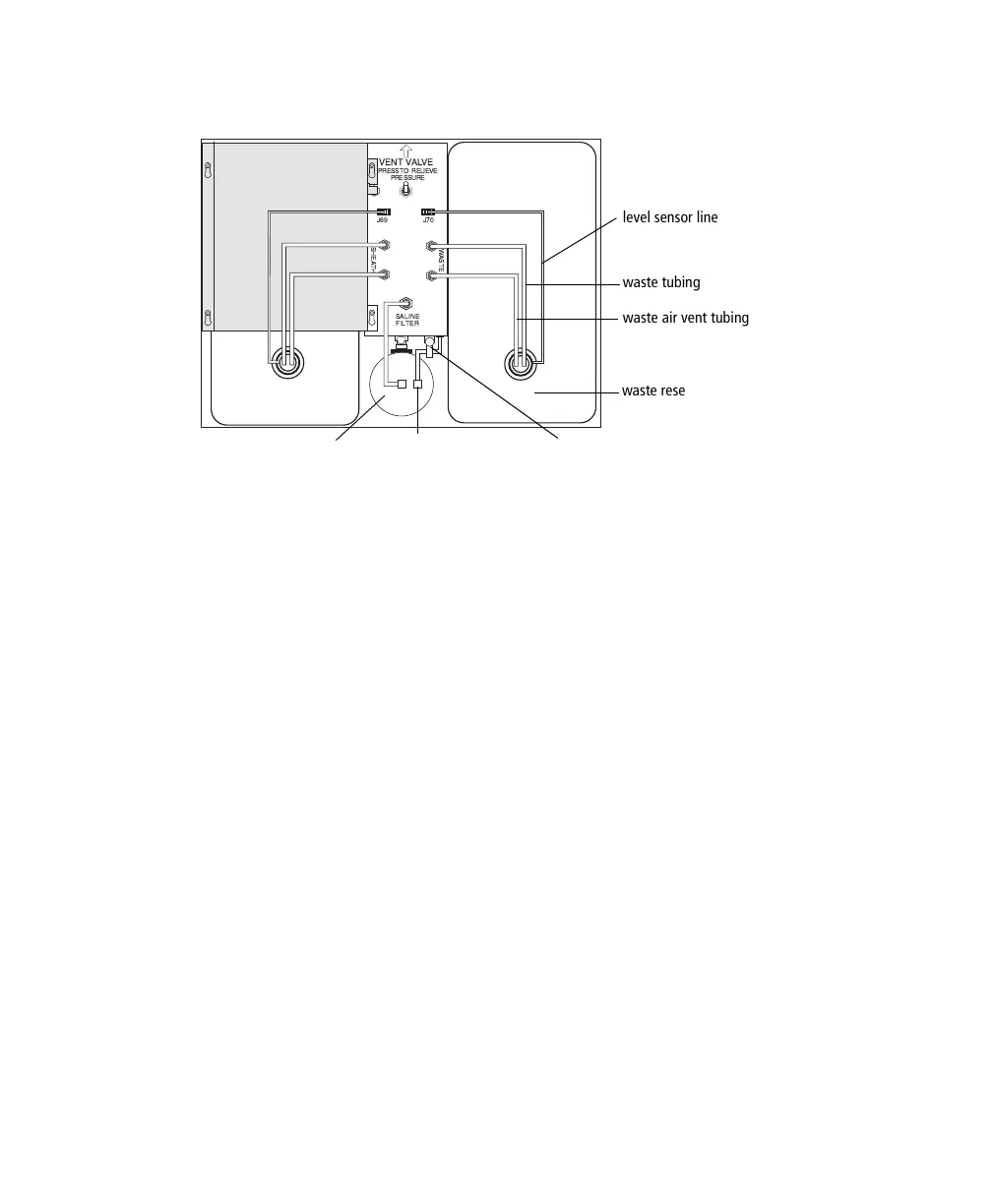

Figure 3-2 Fluidics drawer
1 Slide out the fluidics drawer.
2 Disconnect the waste tubing (orange) and the waste air vent tubing (white)
from the instrument.
3 Disconnect the waste level sensor line.
4 Remove the waste reservoir.
5 Remove the cap assembly, and empty the bleach-exposed waste.
6 Add 400 mL of undiluted bleach to the empty reservoir.
7 Replace the cap assembly and hand tighten until it is fully closed.
If necessary, adjust the cap assembly so the tubing is not pinched or twisted
and reaches the connectors on the connector panel.
8 Reinstall the reservoir.
9 Reconnect the waste and air vent tubing to their color-coded fittings.
10 Reconnect the waste level sensor line.
level sensor line
waste tubing
waste air vent tubing
waste reservoir
sheath filter pinchcocksheath filter air vent tubingsheath filter
