44 MC6 User Manual – Part 5, Documenting Calibrator
ABOUT FIELDBUS AND HART DEVICE SPECIFICS
Detailed information of fieldbus and HART device specifics are discussed in
Part 7, Communicator. However, here are some hints on where fieldbus and
HART device related features appear in Documenting Calibrator.
Adding fieldbus and HART Instrument to MC6's database
When adding a fieldbus instrument or a HART instrument's digital output to
MC6's database, select HART, FOUNDATION Fieldbus H1 or Profibus PA as
the output quantity. See adjacent picture and note below.
See also chapter Digital Communication and MC6's Instrument Data on
page 49.
Note.
For HART instrument's analog output, select Current as the output quantity.
Additional utilities during calibration
During Calibration, MC6's menu has additional menu options available: For
both HART and fieldbus instruments: a possibility to invoke the communicator
to edit instrument data and when needed, start a HART trim method. For
fieldbus instruments, an additional menu option for trimming the instrument is
also available.

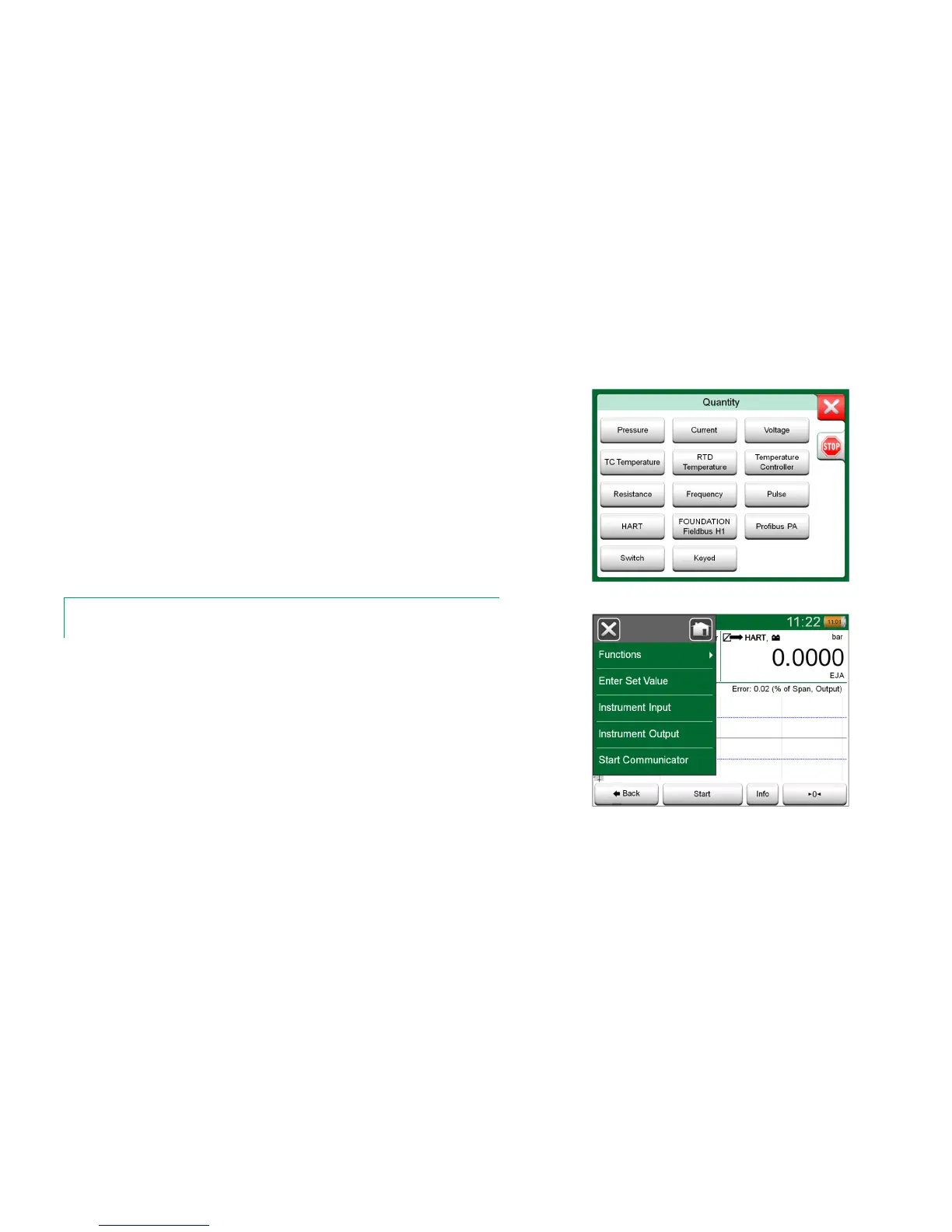

Documenting Calibrator's quantity selection window
Menu in Documenting Calibrator when
calibrating a HART instrument.
